Product Details
Condition: | New | Type: | Paper Folding Machine | Computerized: | Yes |
Place of Origin: | Zhejiang, China | Brand Name: | FQ - PD - 1100 | Model Number: | Future |
Voltage: | 220V/380V | Power(W): | 8 Kw | Dimension(L*W*H): | 5000 * 1500 * 1300 mm |
Weight: | 1600KG | Certification: | CE | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

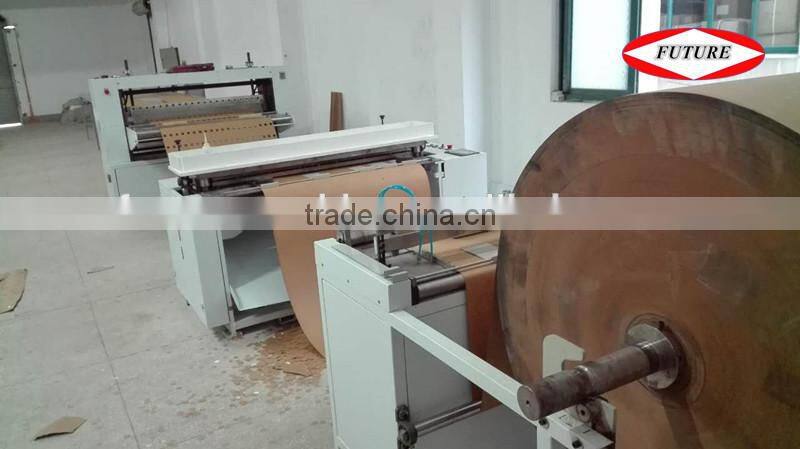

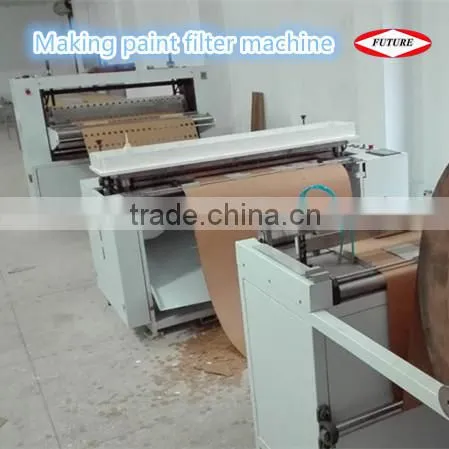

Making paint filter machine
Main Characteristics:
1.The puching and folding machine adopts the motor control systems.PLC touch screen,synchronous pulley,timing belt,linear guides and so on. Filter paper folded,creased smooth surface.
2.Slitting machine according to different specifications of the output filter size,through the inverter variable speed and cylinder knife, cut the size can be precisely adjusted,easy operation,smooth cutting effect,infrared surveillance system that allows feeding speed and punching speed filter paper .
3.The Punching machine can play different fold higher paper , punching from a computer can be arbitrarily set by the advanced motor feeding makes punching from more accurate , easy to adjust, in favor of paper folding machine to play . Particularly suitable for the production of special large air filter.
4.Folding machine on alternating manner folding knife work by regulating can be achieved by a variety of different fold higher requirements,size is accurate,smooth as one.Precise control of the number of folds,the preheating temperature.
5.The whole production line with high accuracy,stable,easy to operate.RBI paper done automatically count on the folding machine , folding , processing and pre-heated.
Scope of application:

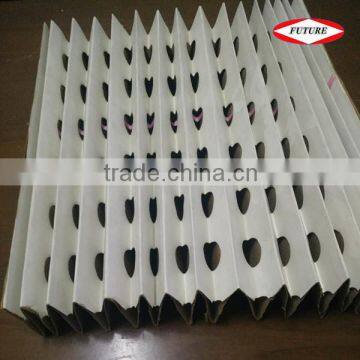

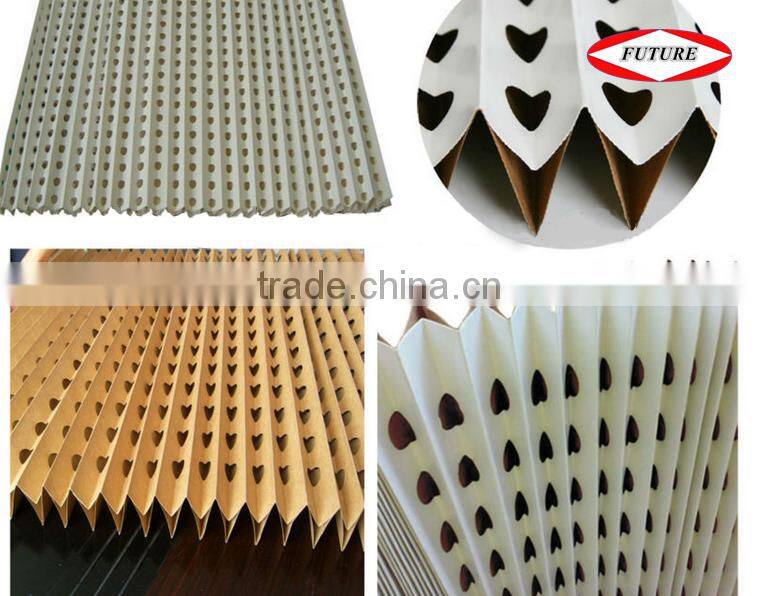

It is widely used in various types of green spray cabinets, wood, metal, furniture spray, car spray, as well as other industrial spraying
Device technical parameter | |
1.Slitting machine | |
Paper speed(Can be adjust) | 0.5m/min~12m/min |
Width of the paper | 32~1020mm |
The motor power | 0.75kw |
Air pressure | 0.6Mpa |
The weight of the machine | 350kg |
The dimension of the machine(L*W*H) | 1300×1300×1100mm |
2.The punching machine | |
The dia of the punching hole | 25mm |
The space between of the hole | 25~120mm |
The motor power | 2.2kw |
The weight of the machine | 900 kgs |
The dimension of the machine(L*W*H) | 1550×750×1100mm |
3.Folding machine | |
Width of the paper(Max) | 1010mm |
The fold size | 8-70mm |
Layers of paper | 1-5ply |
Folding speed(Can be adjust) | 1-100 fold/min |
The motor power | 1.1Kw |
The heating power | 4Kw |
Heating temperature | 0-200 C |
The weight of the machine | 650 kgs |
The dimension of the machine(L*W*H) | 1470×1720×1240mm |
Hangzhou Future Machinery & Technology Co., Ltd.
We are profession manufacturer filter production line,bag-making production line,polyurethane machine and cross cutting machine.We also custom the assembly production line and other machines for our customers. We welcome your company visit our factory view the machines quality.
