Semi-automatic filter paper pleat machine
- 10 Set / Sets per Month
- Shanghai or Ningbo
- T/T L/C D/P D/A
- Leizhan Disc sludge thickener for paper pulp making production line
- 2013HOT SELL Stainless steel structure Disc thickener for paper pulp making production line
- Disc pulp filter machine of fluting and kraft paper production line
- Leizhan waste paper recycle equipment ZNP series disc thickener/paper processing equipment/paper pulp machinery
- disc thickener/paper pulp industrial use
- disc thickener used for washing and thickening/paper making industry
Product Details
Condition: | New | Type: | Paper Folding Machine | Computerized: | Yes |
Place of Origin: | Zhejiang, China | Brand Name: | Future | Model Number: | FQ - SD - 680 |
Weight: | 1400 kgs | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

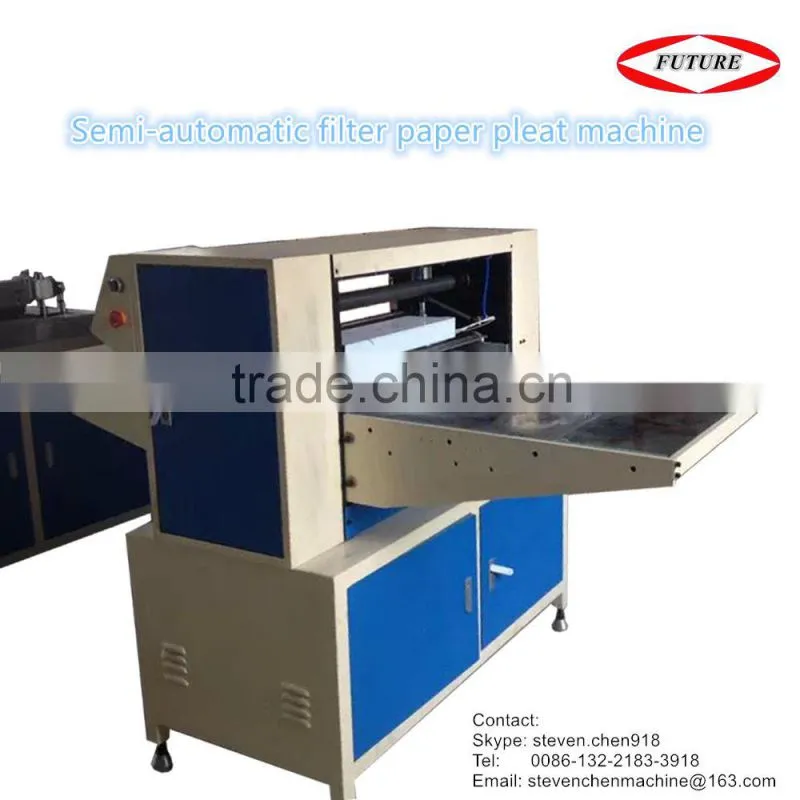

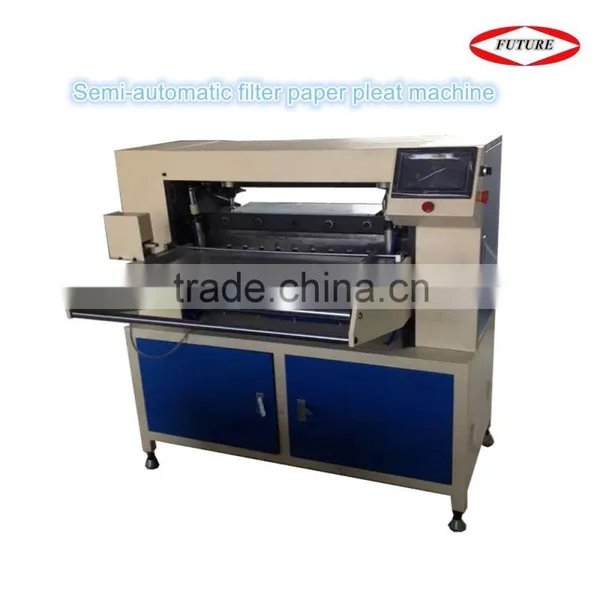

Semi-automatic filter paper pleat machine
Main Characteristics:
1.Slitting machine according to different specifications of the output filter size , through the inverter variable speed and air knife, cut the size can be precisely adjusted , easy operation , smooth cutting effect , infrared surveillance system that allows feeding speed and print line speed filter paper .
2.The printer can play different fold higher paper , printing from a computer can be arbitrarily set by the stepper motor feeding makes printing from more accurate , easy to adjust, in favor of paper folding machine to play . Particularly suitable for the production of special large air filter.
3. Adjust the folding knife by hand(Easy operation and safety),Folding machine on alternating manner folding knife can be achieved different fold size , size is accurate , smooth as one.
4.RBI paper done automatically count on the folding machine , folding , processing and pre-heated .
5.This machine is also used iron on hydraulic filter cloth and non-woven folding , and is suitable for multi- fold .
Scope of application:
The set of three production lines for the automotive filter industry , hydraulic industry , purification industry , water treatment and other industries.
Device technical parameter | |
1.Slitting machine | |
Paper speed | 0.5-12 m/min |
W of slitting | 32-800 mm |
The power | 0.75 kw |
Working air pression | 0.6 Mpa |
The weight | 350 kg |
The dimension(L*W*H) | 1.5m*0.75m*1.1m |
2.The printed machine | |
W of printed | 650 mm |
Range of printed | 8-55 mm |
The prower | 0.75 kw |
The weight | 400 kg |
The dimension(L*W*H) | 1.55m*0.75m*1.1m |
3.Folding machine | |
W of fold | 650 mm |
H of fold | 8-55 mm |
Fold speed | 0-200 Fold/min |
The power | 5.1 Kw |
Heating | 0-200 ℃ |
Working air pression | 0.6 Mpa |
The weight | 650 kg |
The dimension(L*W*H) | 1.67m*1.72m*1.24m |
Hangzhou Future Machinery & Technology Co., Ltd.
We are profession manufacturer pleat machine,filter machine,polyurethane machine,cross cutting machine and bag-making machine.We also custom the assembly production line and other machines for our customers. We welcome your company visit our factory view the machines quality.
