Nordson FR-W1600 IP65 Waterproof Fingerprint Access Control with Time Attendance Terminal
1.Waterproof IP65 and Resistance to Low Temperature (as low as -40 °C/40°F).
2.Embedded Linux OS
3.Fingerprint capacity:3000;
4.ID Card capacity:30,000(option)
5.capacity:50000
6.Communication:TCP/IP, RS232/485
7.Full Access Control Features:Anti-passback,Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbellbutton,alarm,door bell
8.Wiegand input&output

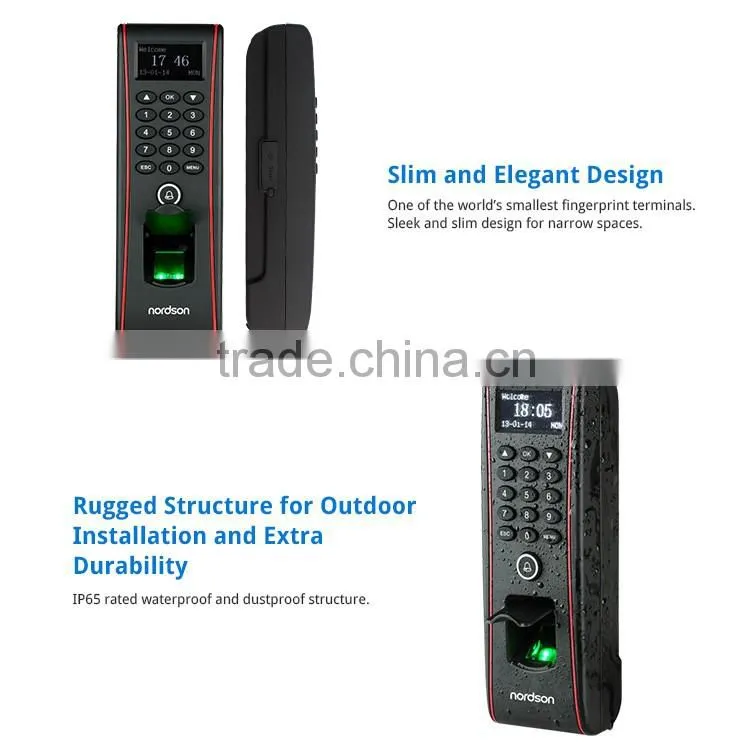

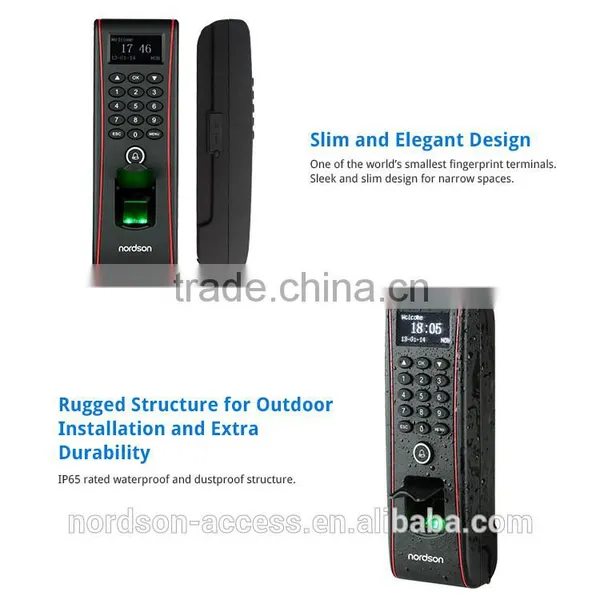

FR-W1600 is IP65 rated waterproof enclosure permits this reader to be used for outdoor applications.it is Reliable, durable and highly accurate fingerprint sensor with finger algorithm provides less than 1.5 second user recognition. Works without computer. Complete setup and programming can be done via keypads and embedded firmware. Audio-Visual Indication for acceptance and rejection of valid/invalid fingerprints. Relay Outputs for electric lock and alarm. Inputs for door status sensor and exit switch. Supports multiple timezones and personnel groups for programming valid entry zones. Can store up to 3000 fingerprint templates, 10,000 cards and 30000 transactions. The data can be backed up to a SD Card and can also be transferred to another reader in the absence of computer connectivity. Internal Proximity Card or Mifare Card reader allows dual factor authentication for access control.
| Type | IP65 Waterproof Fingerprint Access Control with Time Attendance Terminal |
| Fingerprint Capacity | 3,000 |
| RF Card | 10,000 EM(125 KHz) |
| Record Capacity | 50,000 |

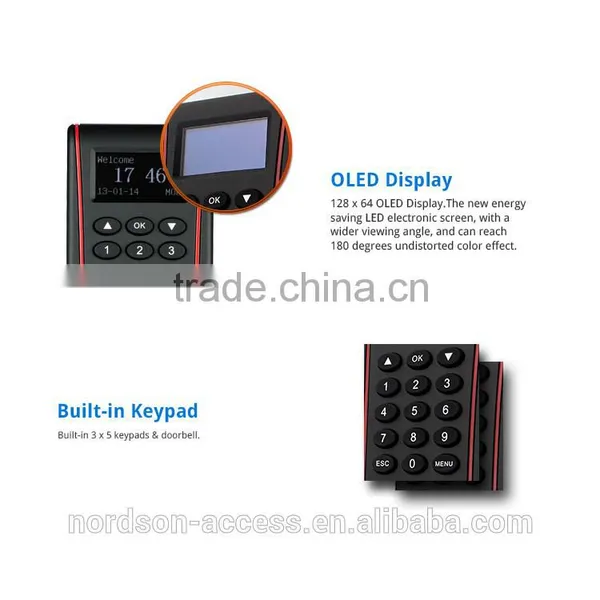

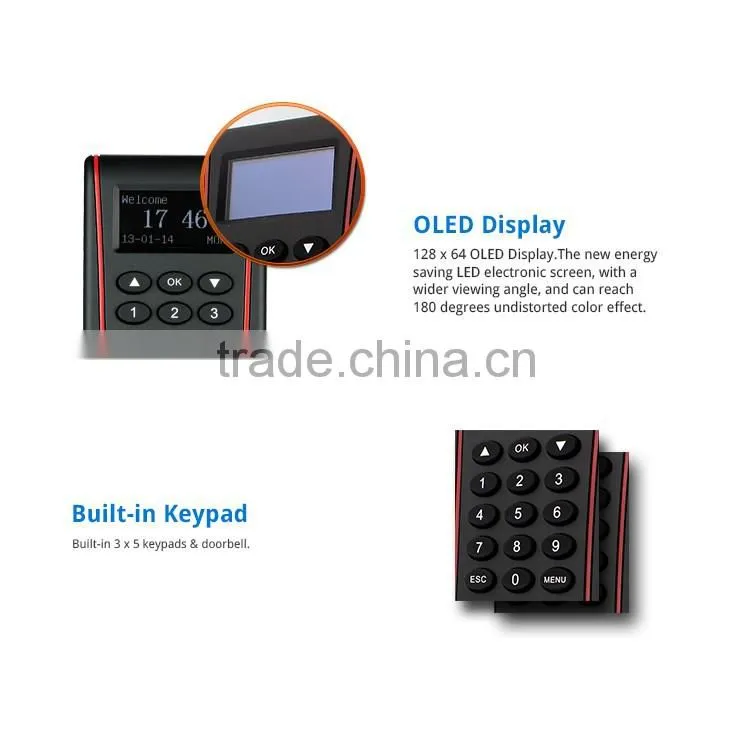

| LCD | 128 x 64 OLED with white color |
| Memory | 128MB flash + 32MB RAM |
| Keypad | 3 x 5 keypads & doorbell |
| Communication | TCP/IP, RS232/485,USB-Host |
| Full Access Control Features | Anti-passback.Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell |
| Optional Functions | Mifare(optional) |
| Wiegand Signal | Input and Output |
| Authentication | Finger / PIN / Card |
| Power Supply | DC 12V |
| Verification Speed | ≤0.5 sec |
| Operating Temp. | -10 °C~50 °C (14°F ~ 122°F) |
| Operating Humidity | 20%-80% |

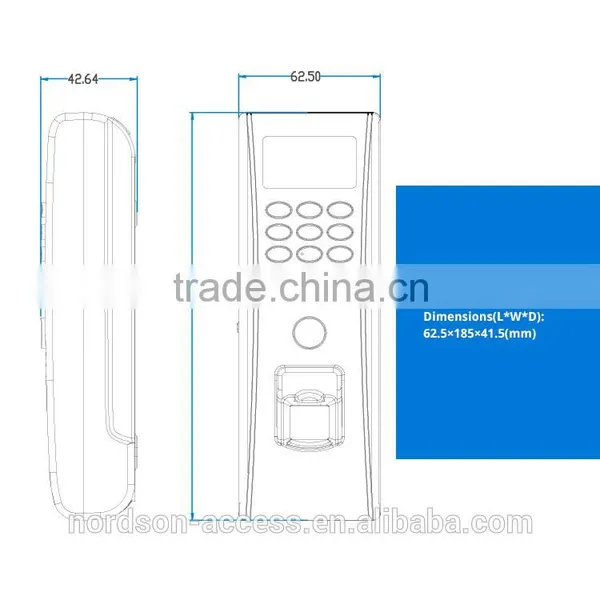

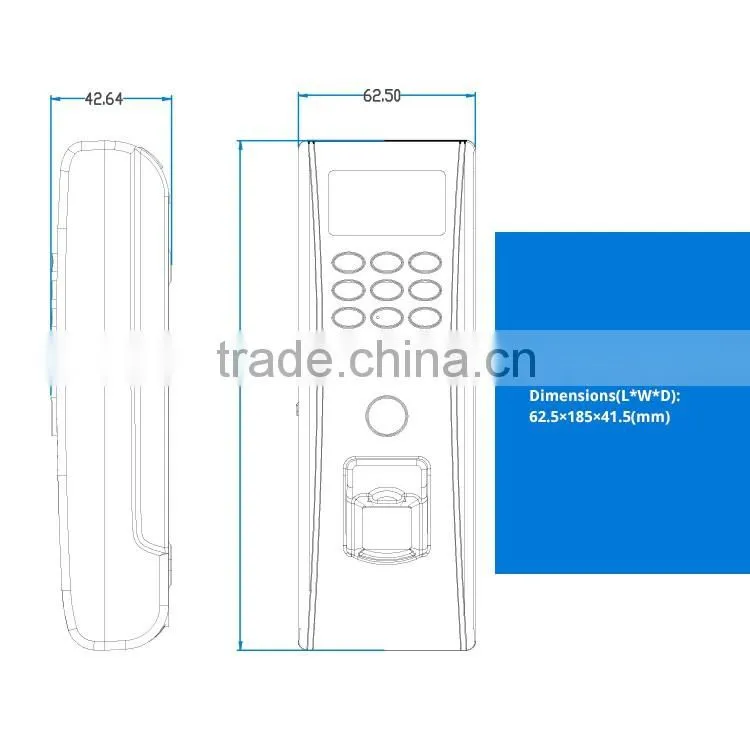

| Dimension | 62.5mm×185mm×41.5mm (W×H×D) |
| Gross Weight | 1.5kg |
