FR-iface301 Multi-biometric Time Attendance and Access Control Terminal
Introduction:
iFace301 multi-biometric identification time attendance and access control terminal adopts latest ZEM600 platform with Face 7.0 algorithm and large capacity memory. iFace series integrated 630MHz high speed Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely.
All operations of iFace are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional Wi-Fi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.
Features:
• Identification methods include Face, Fingerprint/RFID and/or Password.
• Elegant ergonomic design.
• 4.3’’ TFT touch screen is user-friendly and very intuitive.
• 6 user-defined function keys.
• Contact relays for door access control (wires to door strike or 3rd party panel).
• Web-server management software via IE browser.
• Optional extendable scheduled-bell.
• Infra-red optical system enables user-identification in poorly lit environments.
• Optional built-in battery backup provides approx 4 hours continuous operation.
• Optional built-in wireless Wi-Fi or GPRS for wireless communication.
• Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.
• Wiegand Output for connections to 3rd party access control panels.
Specifications:
CPU |
Multi-Bio CPU 630 MHz |
Memory |
256M Flash, 64M SDRAM |
Hardware Platform |
ZEM600 Multi-Medium Development Platform |
Fingerprint Sensor |
N/A |
Camera |
High Resolution Infrared Camera |
Display |
4.3’’ TFT touch screen |
Face Capacity |
400 (1:N) |
Fingerprint Capacity |
N/A |
ID Card Capacity |
10,000 |
Logs Capacity |
100,000 |
Algorithm Version |
Face 7.0 |

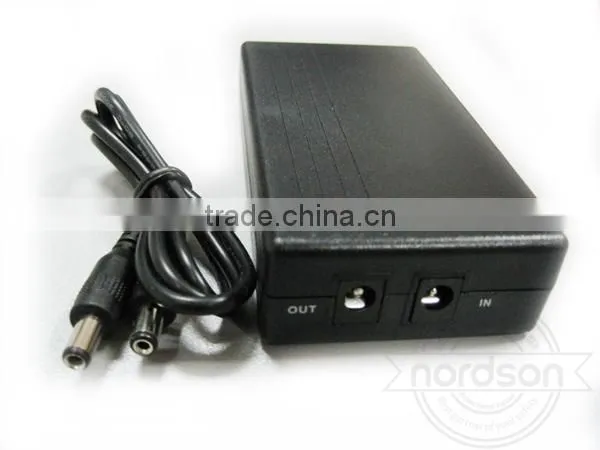

2000mAh Backup Battery |
Optional |
Communication |
TCP/IP,RS232/485 |
USB-HOST |
Two USB-Host |
Wireless Wi-fi |
Optional |
Time Attendance Standard Functions |
ID Card(302 Optional), Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST |
Access Control Interfaces for |
3rd party electric lock, door sensor, exit button |
Wiegand Signal |
Output |
Optional Functions |
Serial printer, IC card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS |
Power Supply |
12V@3A |
Verification Speed |
≤2 sec. |
Operating Temp |
0℃ - 45 ℃ |
Operating Humidity |
20% - 80% |
Dimension |
193.6*165.2*86 mm (L*W*T) |
Gross Weight |
2.5 kg |

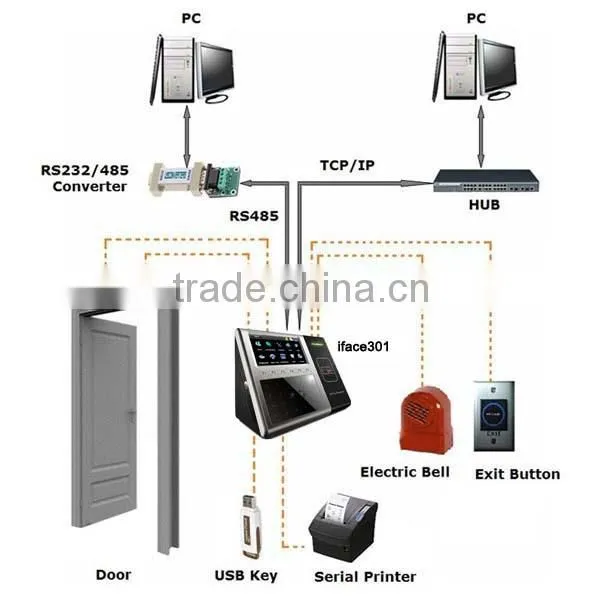

Connection Diagram:

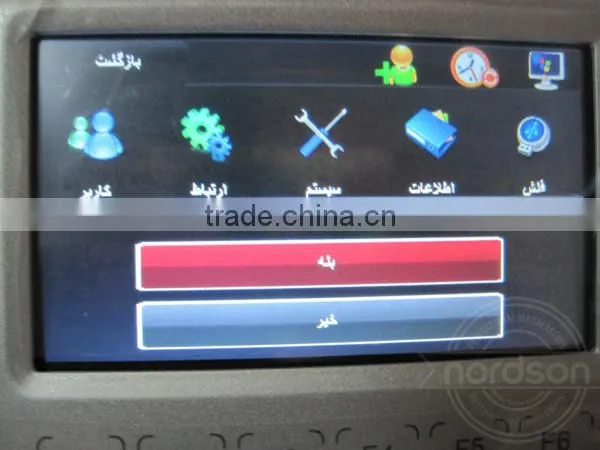

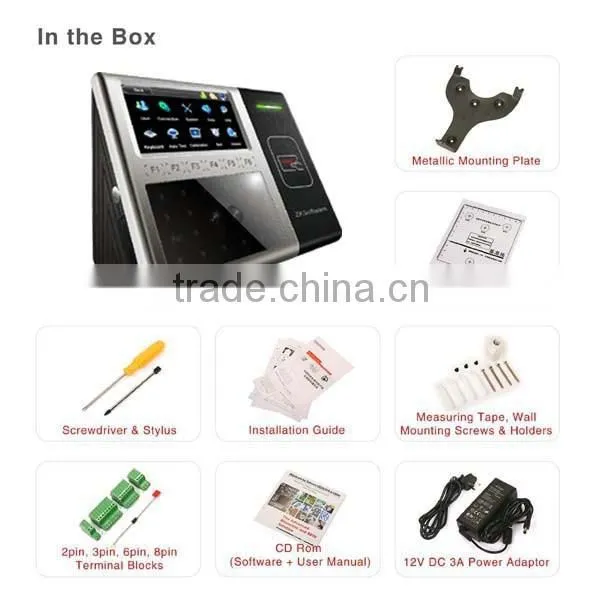

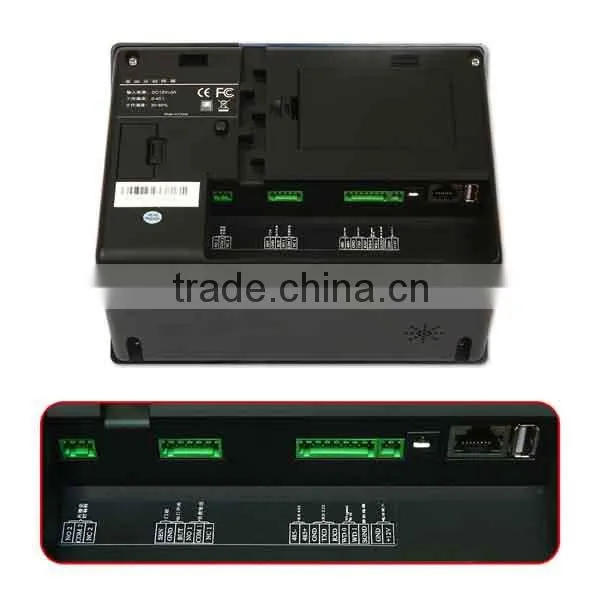

Pictures:
