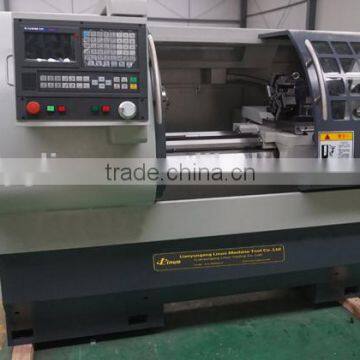

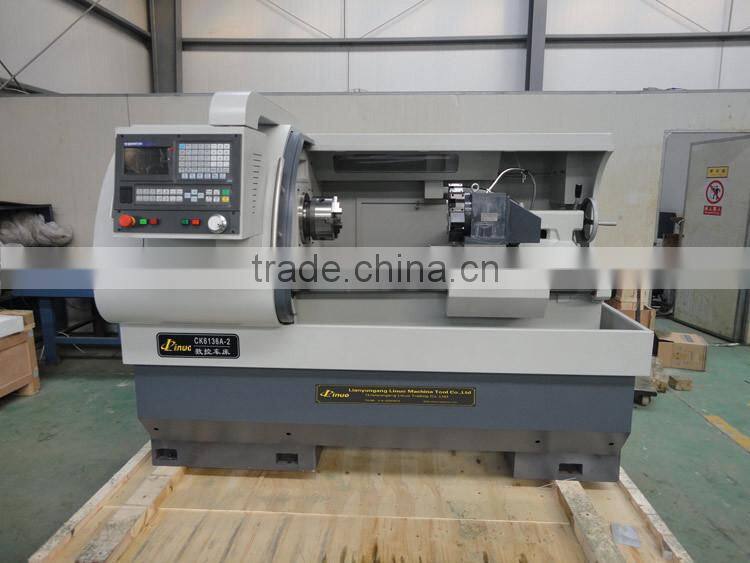

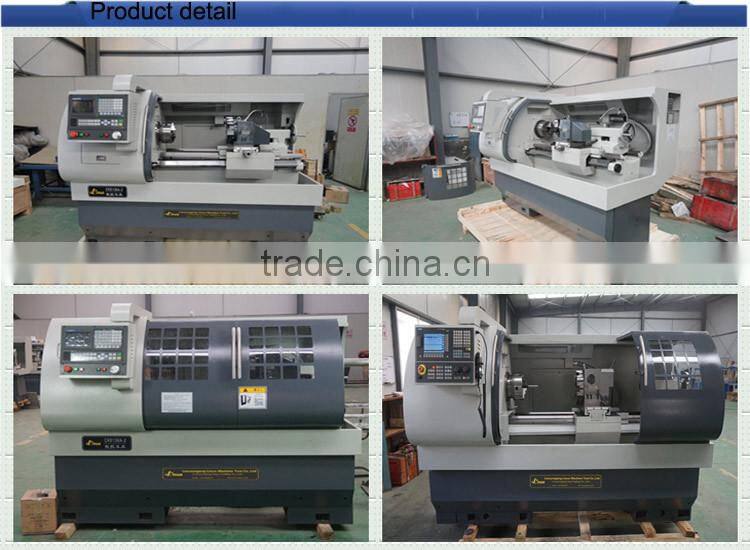

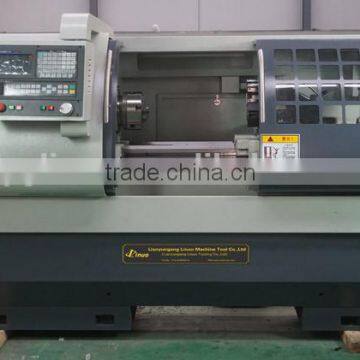

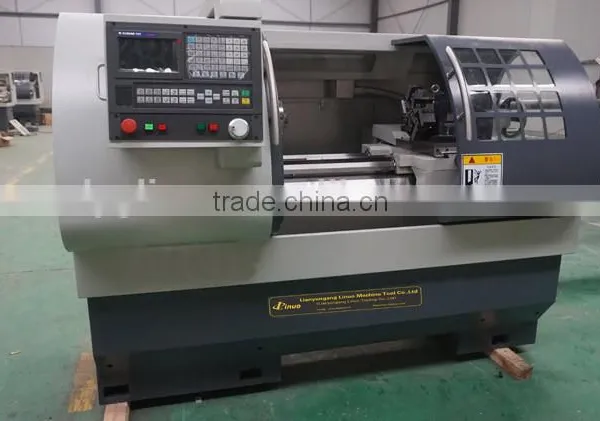

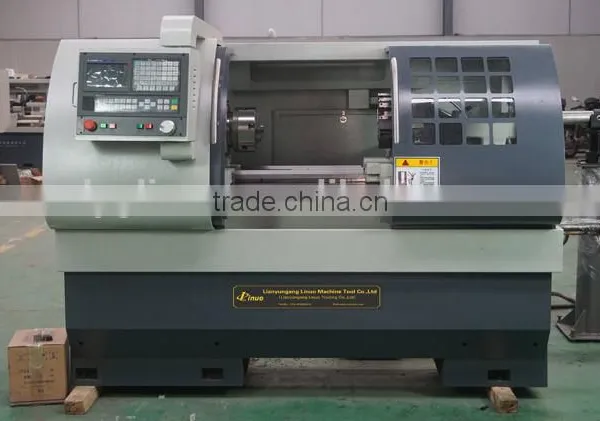

CK6136A*750 GSK cnc system control swiss type cnc lathe machine price
Product Description for CK6136A*750 GSK cnc system control swiss type cnc lathe machine price
Standard configuration:
1-System:GSK928TD-L,servo motor and drive

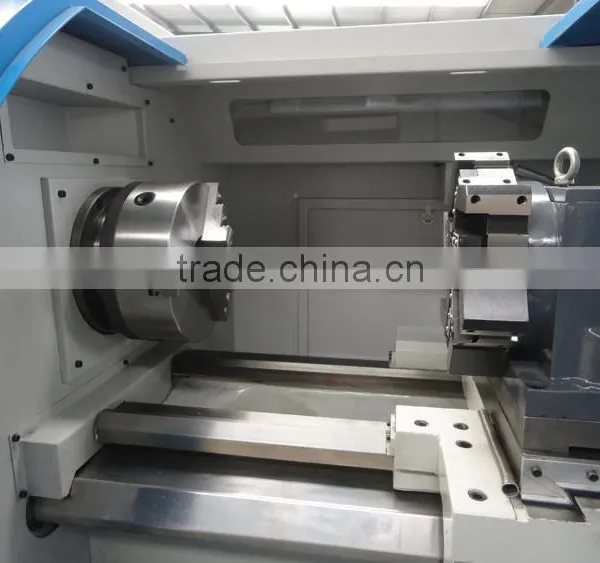

2-3-jaw chuck,
3-Four station electric tool post.
4-Manual tailstock
5-Cooling system;
6-Lighten system;
7-Automatic lubrication system;
Optional configuration:

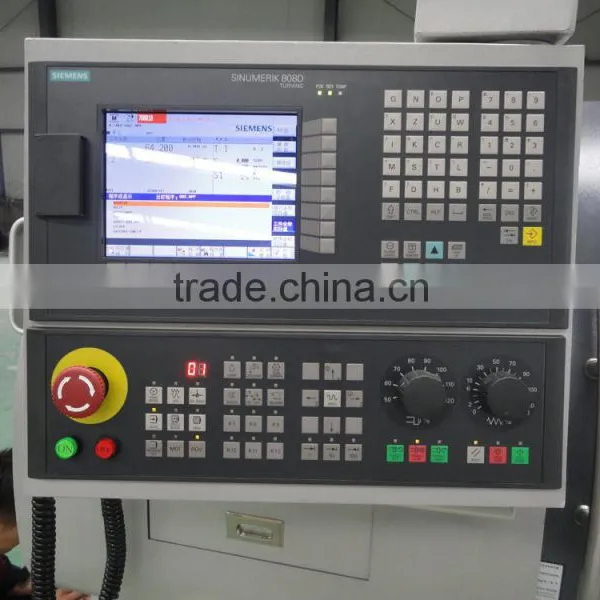

Optional brands of CNC systems |
SIEMENS,FANUC |

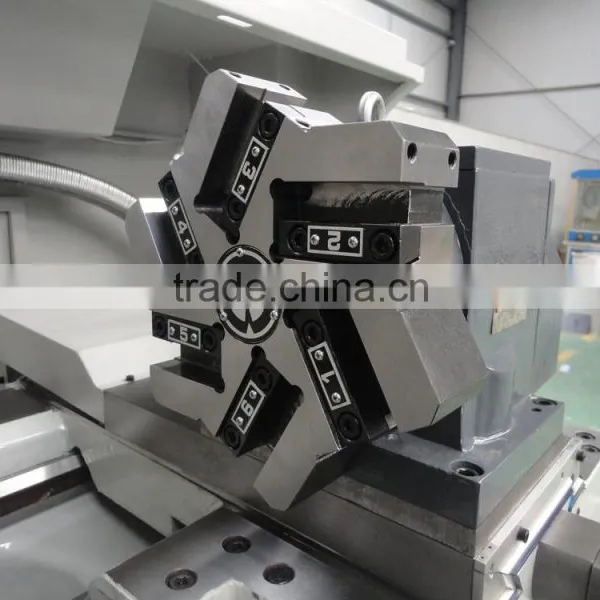

Optional types of the tool post |
horizontal 6-station, horizontal 8-station |
Optional types of the workpiece clamping |
hydraulic chuck,pneumatic chuck,spring chuck |
Optional types of the tailstock |
Hydraulic tailstock,pneumatic tailstock |
Optional patterns of feeding |
Automatic Bar feeding(Customized programs alone) |
Specifications( CK6136A CNC lathe )
ITEMS |
Specifications |
Max. swim over bed |
Φ360mm |
Max. swim over carriage |
Φ190mm |
Max. length of work piece |
750mm |
Width of the machine |
330mm |
Size of three-jaw chuck |
200mm |
Range of spindle speed |
150-2500rpm |
Spindle bore |
Φ60mm |
Taper of spindle bore |
MT6 |
Stations of tool carrier |
4/6/8 |
Max size of tool post |
20mm or 25mm |
Min. setting unit of motor |
(Z) long 0.001mm,(X) cross 0.001mm |
Moving speed of post |
(Z) long 8m/min,(X) cross 4m/min |
Taper of tailstock quill |
MT4 |
Max. range of tailstock quill |
120mm |
Motor power |
5.5KW |
Packing size(length ×width × height) |
2120*1400*1750mm |
Net weight |
1800kg |

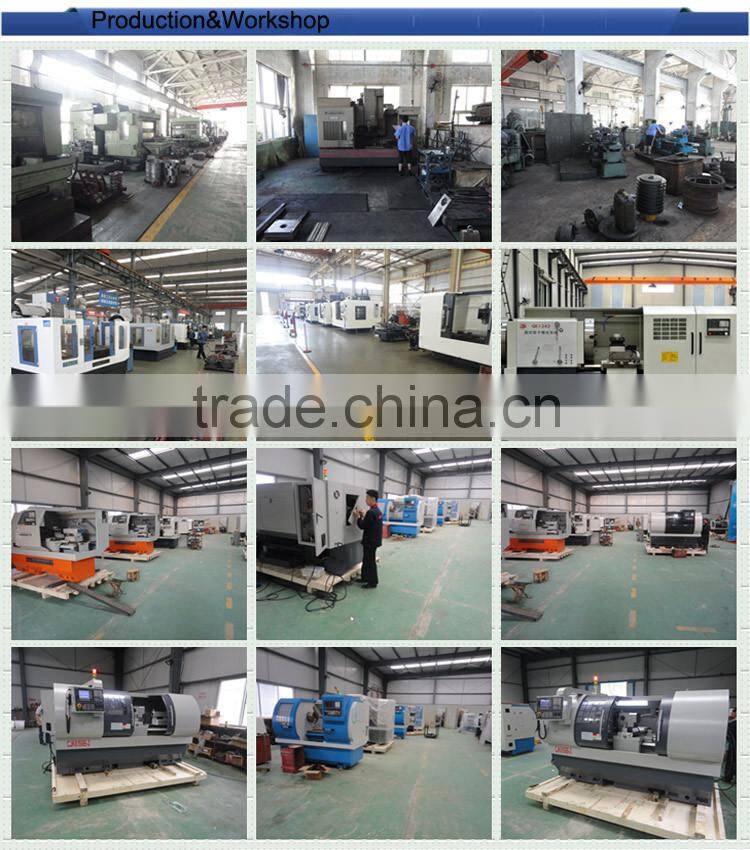

Production&Workshop for CK6136A*750 GSK cnc system control swiss type cnc lathe machine price

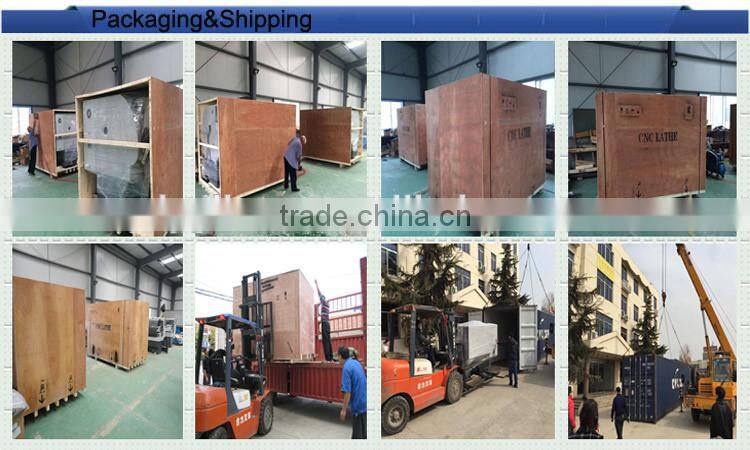

Packaging&Shipping for CK6136A*750 GSK cnc system control swiss type cnc lathe machine price
Customer&Expo for CK6136A*750 GSK cnc system control swiss type cnc lathe machine price
Companny information for CK6136A*750 GSK cnc system control swiss type cnc lathe machine price
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
