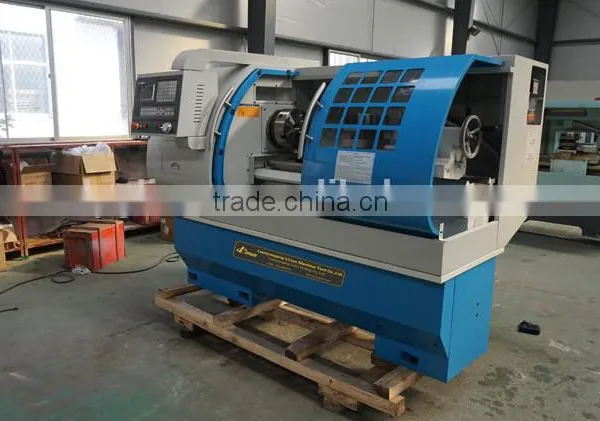

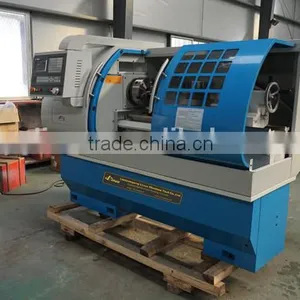

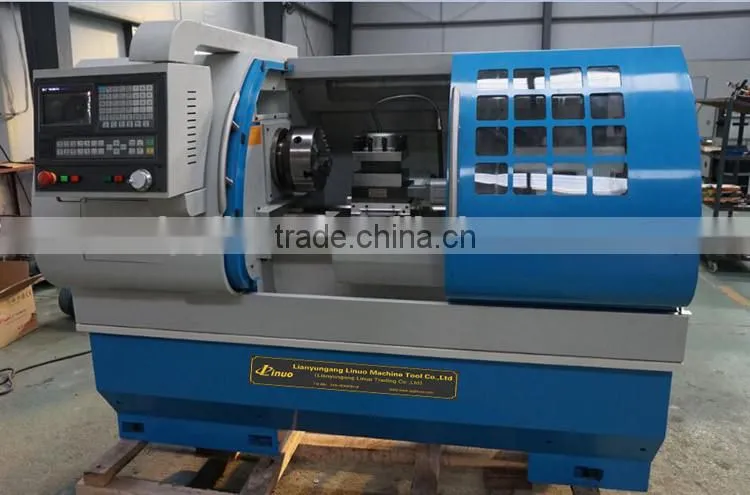

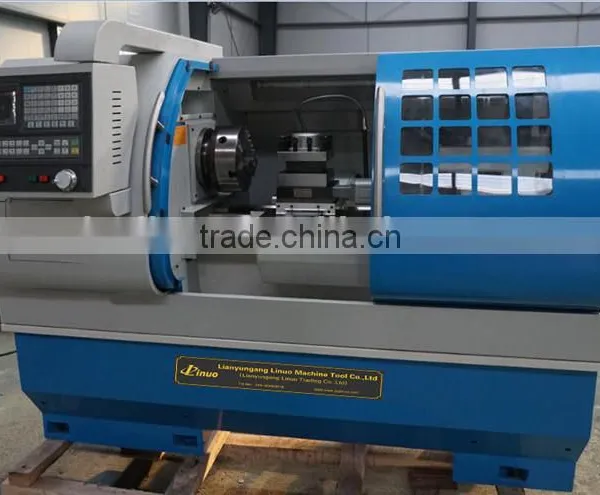

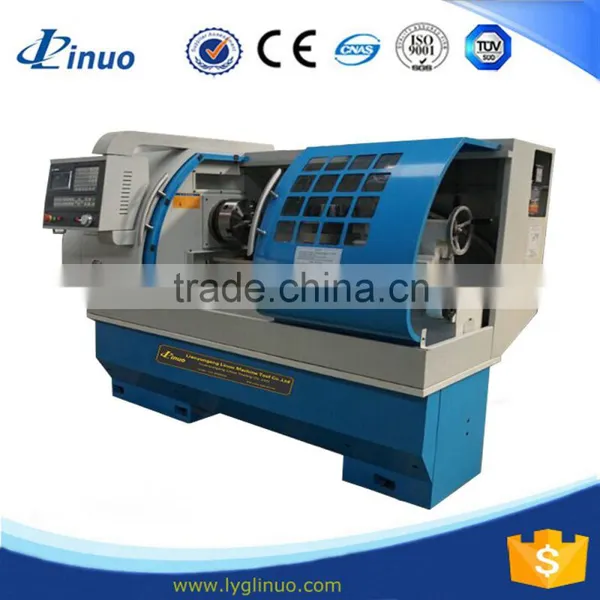

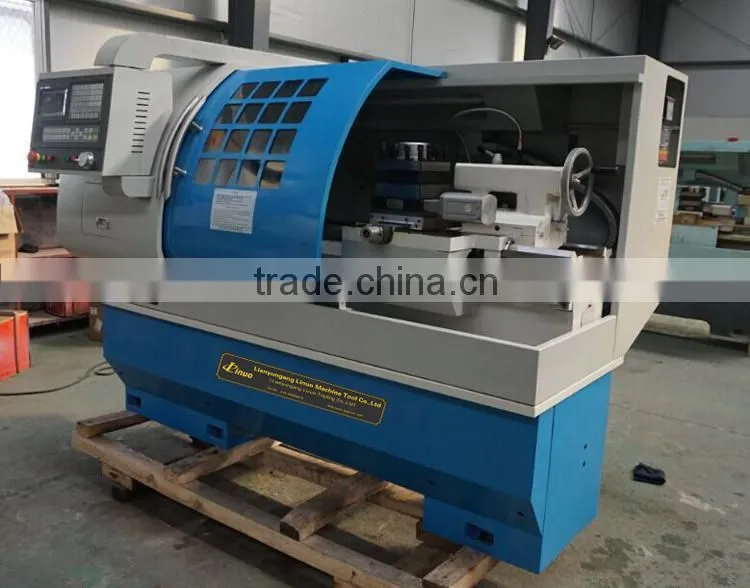

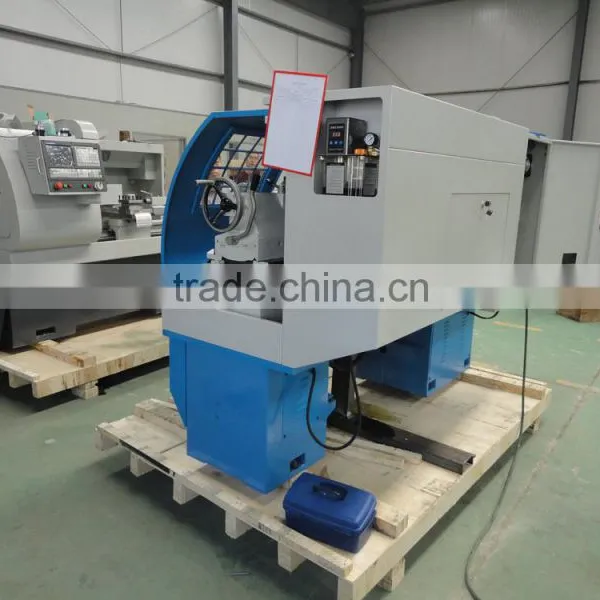

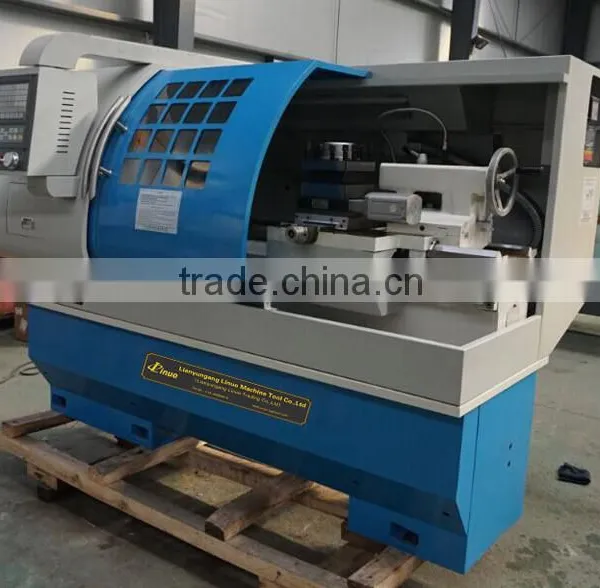

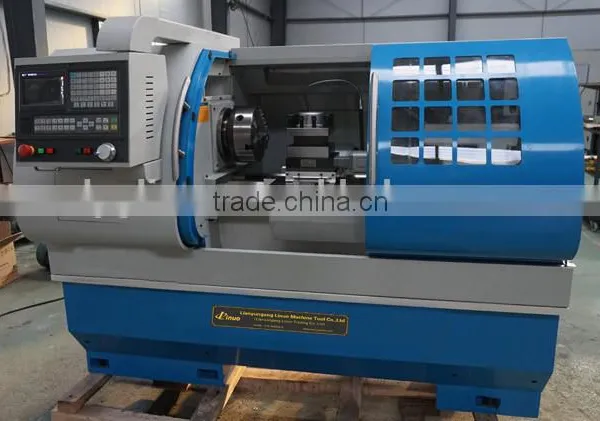

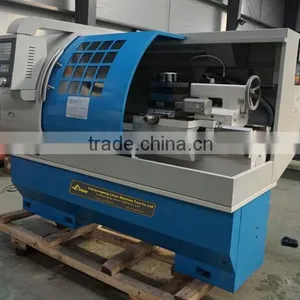

CK6140A *750/1000 small cnc lathe machine price for sale
Product Description for CK6140A *750/1000 small cnc lathe machine price for sale
Standard configuration:
1. Spindle brake way by electric brake
2. Feed of X.Z shaft are driven by all screw with servo-motor or stepper motor
3. Imported or homemade CNC system
4. Rotary various work piece surface automatically turning, precision machining
5. the body of the lathe has good rigidity; the guide is treated by super audio quenching with high hardness, grinding the surface with high accuracy.
6. The carriage adopts plastic paste processing. High precision with long life.
7. Electronic hand wheel equipped easy operation.
8. after the lead rail of the machine is treated by super-audio quenching and finish grinding and plastic coating, it is of good rigidity and stability.
9. Three gears controlled by a handle, stepless speed regulation, with lower noise and high- standard machining accuracy, is an environmental- protective machine.
10. The spindle is the high- rotate speed and sophisticated bearing, with smooth surface. The extra size diameter of the spindle bore isφ82mm while the diameter of chuck is φ250mm.
Optional configuration:
Optional brands of CNC systems |
SIEMENS,FANUC |
Optional types of the tool post |
horizontal Six-station, horizontal eight-station |
Optional types of the workpiece clamping |
hydraulic chuck,pneumatic chuck,spring chuck |
Optional types of the tailstock |
Hydraulic tailstock,pneumatic tailstock |
Optional patterns of feeding |
Automatic feeding(Customized programs alone) |
Specifications( CK6140A CNC lathe )
ITEMS |
Specifications |
Max. swim over bed |
Φ400 mm |
Max. swim over carriage |
Φ225 mm |
Max. length of work piece |
750 mm |
Width of the machine |
330 mm |
Size of three-jaw chuck |
250 mm |
Range of spindle speed |
150-2500 rpm |
Spindle bore |
Φ60 mm |
Taper of spindle bore |
MT6 |
Stations of tool carrier |
4 |
X/Z axis torque |
5/7.5N.M |
X/Z axis fast feeding speed |
6/8 M/MIN |
Taper of tailstock quill |
MT4 |
Max. range of tailstock quill |
120 mm |
Motor power |
5.5 KW |
Packing size(length ×width ×height) |
2120 *1450 *1700 mm |
Net weight |
1800 kg |
Production&Workshop CK6140A *750/1000 small cnc lathe machine price for sale
Packaging&Shipping for CK6140A *750/1000 small cnc lathe machine price for sale
Customer&Expo for CK6140A *750/1000 small cnc lathe machine price for sale
