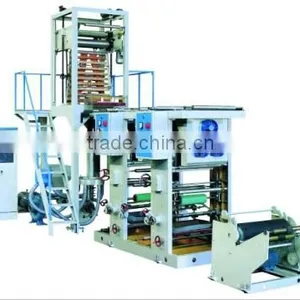

Offset Printing Machine Blown
US$ 5,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic:
Yes
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Granulator Production LineNegotiableMOQ: 1 -
TL 2-layer /3 Layer Plastic Air Bubble(cushion) Film MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
Slitter Rewinder MachineUS$ 5,000 - 10,000MOQ: 3 Sets
-
TL-500 Single Stretch Film MachineUS$ 13,000 - 14,000MOQ: 1 Set
-
1500mm Three Layers Co-Extrusion Stretch Film Making MachineUS$ 33,000 - 90,000MOQ: 1 Set
Condition
New
Automatic
Yes
Place of Origin
China
Brand Name
TL
Model Number
TL-45/55/65
Power(W)
15-22KW
Dimension(L*W*H)
8.0*2.4*5.0M
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Specifications1.Auto Loader 2.Air Compressor 3. Special Die
4.Die Rotary Device 5. Double Sides Winder.
Specifications
1.Auto Loader
2.Air Compressor
3. Special Die
4.Die Rotary Device
5. Double Sides Winder
| MODEL | unit | TL-45 | TL-55 | TL-65 |
| Suitable Material | HDPE | HDPE | HDPE | |
| Screw Diameter | mm | 45 | 55 | 65 |
| Screw L/D ration | mm | 28::1 | ||
| Blowing Film Drving Motor | 15KW | 18.5KW | 22KW | |
| Extrusion Output | 45kg/hr | 60kg/hr | 75kg/hr | |
| Die Size | mm | 60/80mm | 80/100mm | 100/125 |
| Width of Blowing Film | 600mm | 800mm | 1000mm | |
| Max. printing Width | mm | 560 | 760 | 960 |
| Thickness of Blowing film | mm | 0.01-0.06mm | 0.01-0.06mm | 0.01-0.06mm |
| Printing Length | mm | 250-1000mm | 250-1000mm | 250-1000mm |
| Precision of Color Printing | mm | 0.2mm/0.2mm | 0.2mm/0.2mm | 0.2mm/0.2mm |
| Weight of Overall | 4500kg | 5000kg | 5500kg | |
| Overall Dimensions(L*W*H) | 8.0*2.2*4.5 | 8.0*2.4*5.0 | 9.0*2.8*5.5m | |
