Home > Products > New Products > 1500mm three layers co-extrusion stretch film making machine
1500mm three layers co-extrusion stretch film making machine
- 99 Set / Sets per Month
- Shanghai Port China
- T/T
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Food, Commodity, Medical, Chemical, Other, Apparel, Food, Commodity, Medical, Chemical, Machinery & Hardware, Apparel | Packaging Type: | Film |
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V | Power: | 180kw | Place of Origin: | Shanghai, China |
Brand Name: | Cast Film Making Machine | Model Number: | TL-90-70-55-1500mm | Weight: | 9Tons |
Dimension(L*W*H): | 14-6.5-5meters | Certification: | CE Certificate | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1500mm three layers co-extrusion stretch film making machineAuto Loader,
Touch Screen Control,
Full Automatic
High output
1. Specifications
1500mm three layers co-extrusion stretch film making machine
1) Auto Loader
2)Edge Film auto recycling machine
3)Full Automatic Change Roll System
4)High Capcity
Main Technical Parameters:
Model | TL-70-90-1500mm /2 Layers | TL-90-70-55-1500mm /3 Layers |
Screw Diameter | 70mm/90mm | 55mm/70mm/90mm |
L/D Ratio of Screw | 30:1 | 30:1 |
Die Head Width | 1800m | 1800mm |
Film Width | 1500mm / 500mm*3rolls | 1500mm / 500mm*3rolls |
Film Thickness | 13-50 Micron | 13-50 Micron |
Structure of film layers | A/B, A/B/A | A/B/C, A/C/B/C/A |
Max Output | 230 KG/HOUR | 280kg/hour |
Linear Speed of Machine | 150mm/min | 150mm/min |
Total Power | 150KW | 180KW |
Dimensions(L*W*H) | 14*6.5*5meter | 14*8*5meter |
Weight | 9000kgs | 10000kgs |
2. Company background

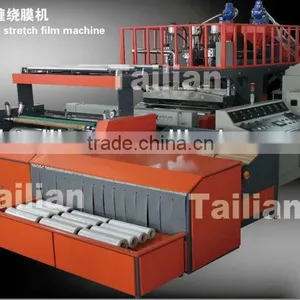

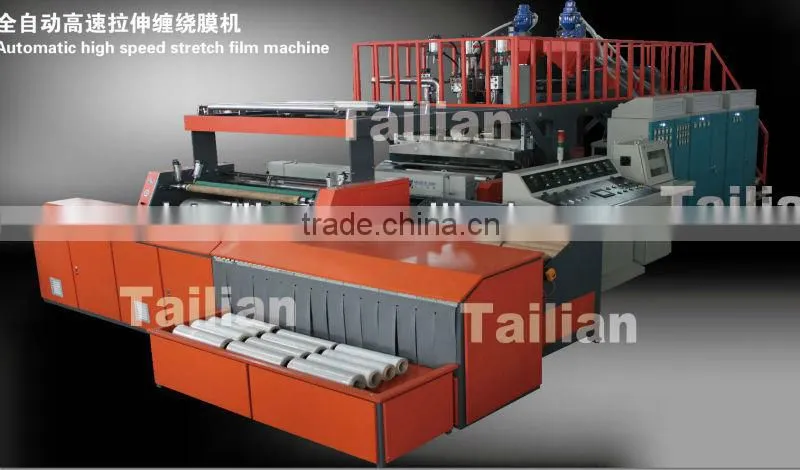

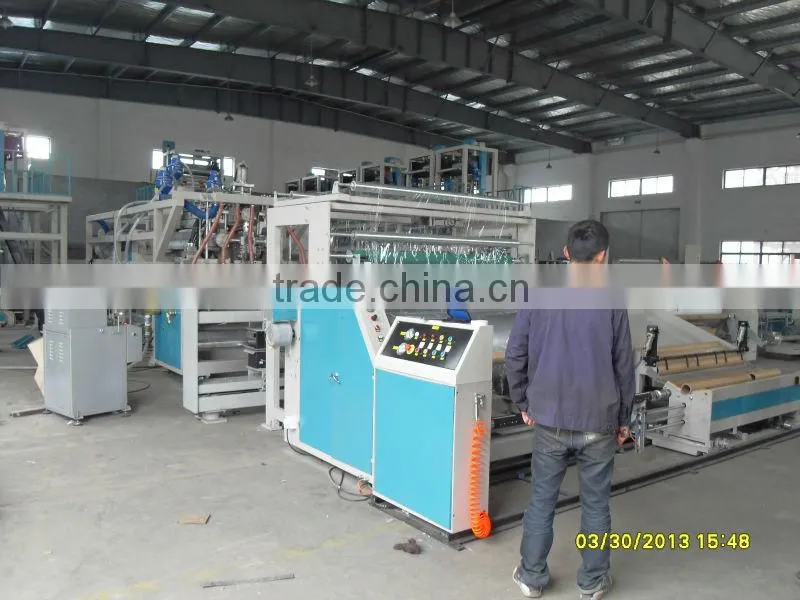

3. 2013 New style 1500mm three layer stretch film machine
4. Finished stretch film
5. Container loading

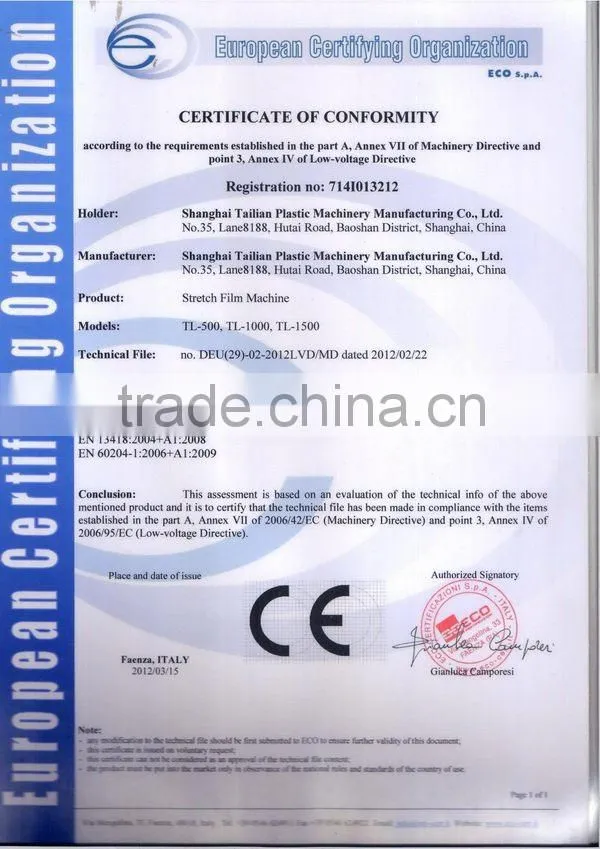

6. CE certificate
Contact Person: Danny Cheng
Mobile: 0086 18930653365
We invite you visit our factory, we believe that you will satisfied with our machine when you visit our factory!
Contact Us
- Shanghai Tailian Plastic Machinery Manufacturing Co., Ltd.
- Contact nameDANNY CHENG
- Phone86-21-66867169
- AddressNo. 35, Lane 8188, Hutai Road
