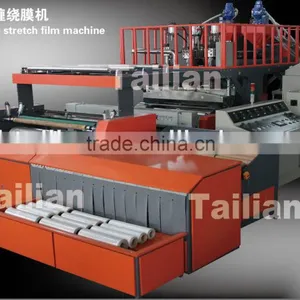

1500mm three layers co-extrusion stretch film machine

Specifications

1500mm three layers co-extrusion stretch film machine
Auto Loader,
Touch Screen Control,
Full Automatic
High output

1. Specifications

1500mm three  layers co-extrusion stretch film making machine



1) Auto Loader

2)Edge Film auto recycling machine

3)Full Automatic Change Roll System

4)High Capcity



Main Technical Parameters:



Model	TL-70-90-1500mm /2 Layers	TL-90-70-55-1500mm /3 Layers
Screw Diameter	70mm/90mm	55mm/70mm/90mm
L/D Ratio of Screw	30:1	30:1
Die Head Width	1800m	1800mm
Film Width	1500mm / 500mm*3rolls	1500mm / 500mm*3rolls
Film Thickness	13-50 Micron	13-50 Micron
Structure of film layers	A/B,  A/B/A	A/B/C, A/C/B/C/A
Max Output	230 KG/HOUR	280kg/hour
Linear Speed of Machine	150mm/min	150mm/min
Total Power	150KW	180KW
Dimensions(L*W*H)	14*6.5*5meter	14*8*5meter
Weight	9000kgs	10000kgs











































2. Company background

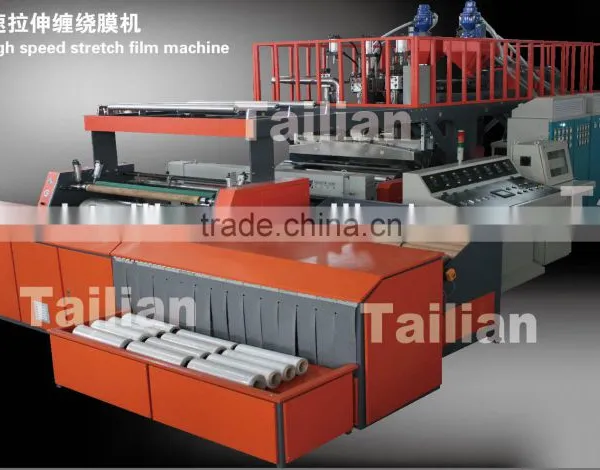

3. 2013 New style 1500mm three layer stretch film machine









4. Finished stretch film





5. Container loading





6. CE certificate
