T8210D Con-rod Cylinder Block Boring Machine

Name: T8210D Con-rod Cylinder Block Boring Machine
Brand: LINUO
SKU: 114826537
Availability: InStock

US$ 4,000 - 5,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Production Capacity:

40 Sets / Month

Lianyungang Linuo Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai for T8210D con-rod cylinder block boring machine

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Production Capacity 40 Sets / Month

Place of Origin Jiangsu, China

Brand Name LINUO

Model Number T8210D

Voltage 380V/50Hz/3Ph

Power(W) 0.85kw

Dimension(L*W*H) 1700*950*1450 mm

Weight 900KG

Certification CE ISO9001

After-sales Service Provided Engineers available to service machinery overseas

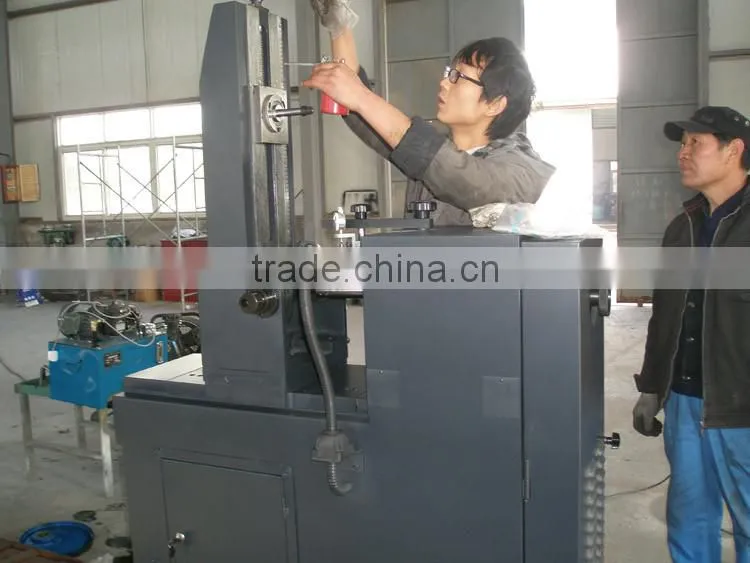

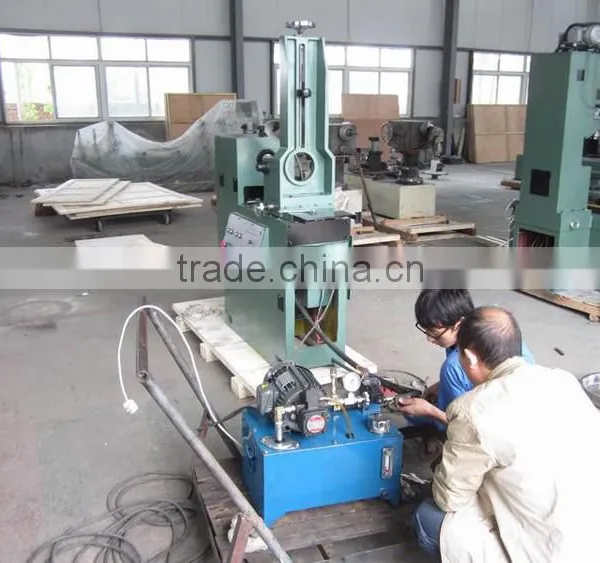

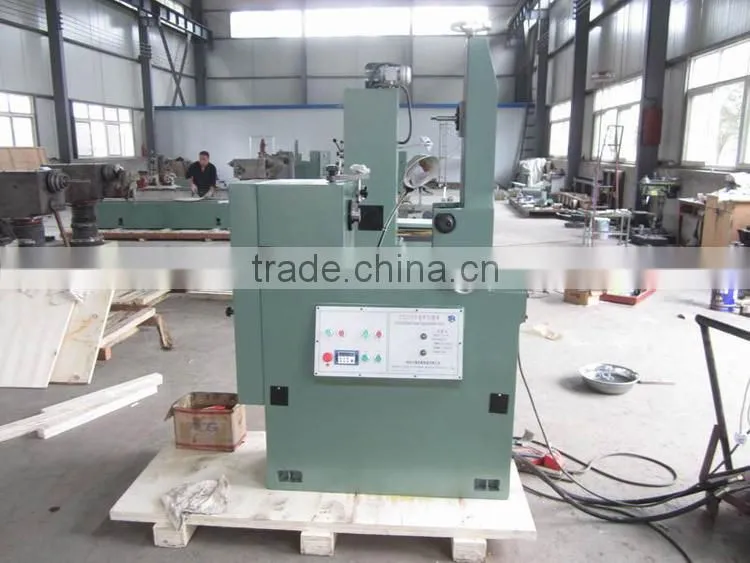

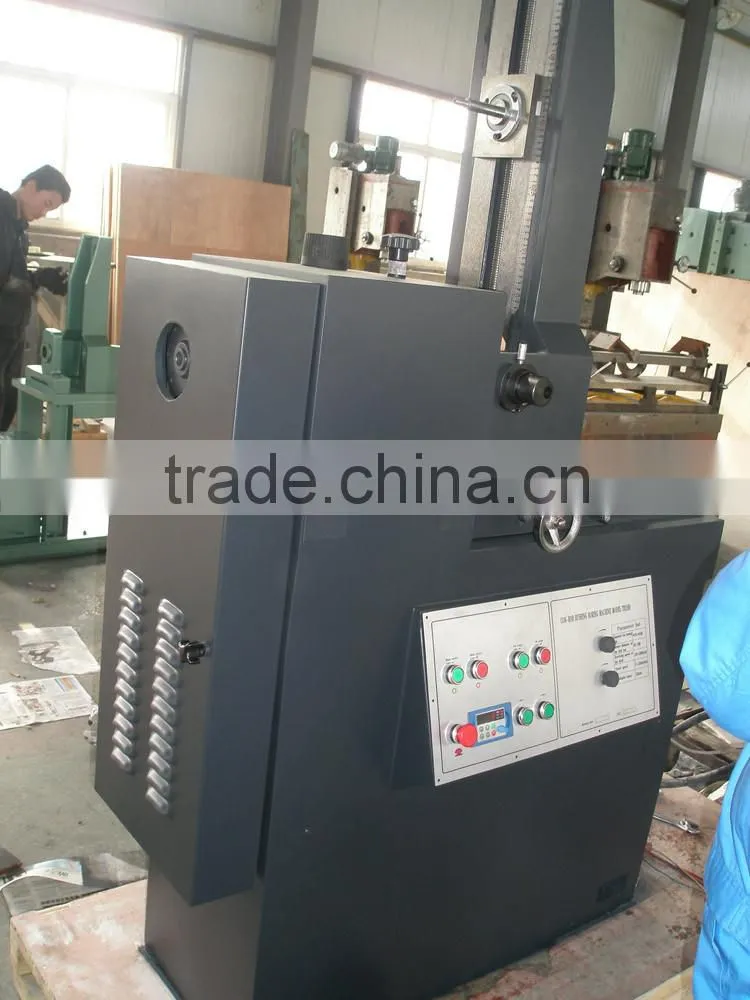

T8210D con-rod cylinder block boring machine

Features:

1. Con-rod boring machine has good performance, better structure, easy operation and high accuracy and can meet customer’s demand.

2. The machine is mainly used in boring rod bushing hole (rod bushing and copper bush) of diesel and gasoline engine of automobiles and tractors.

3. In case of necessity, rod bushing seat hole can be fine-bored.

4. The rough and fine boring processing for the holes on other parts can be also completed after changing the corresponding clamps.

5. Besides, it has the accessories for centering sectifying tools, boring tools and micro-adjustment tools holder etc.

Specification	T8210D	T8216
Diameter range of boring hole	16-100 mm	15-150 mm
Centre distance of link two hole	100-425 mm	85-600 mm
Longitudinal travel of worktable	220 mm	320 m
Spindle speed	350, 530, 780, 1180 rpm	140-1200 rpm
Transverse adjusting amount of fixture	80 mm	80 mm
Feeding speed of worktable	16-250 mm/min	0-320 mm/min
Traveling speed of working	1800 mm/min	1800 mm/min
Diameter of boring bar (4 class)	14, 16, 24, 40 mm	14, 16, 24,40, 60 mm
Main motor power	0.65/0.85 Kw	1.5 Kw
Motor power of oil pump	0.55 Kw	0.55 Kw
Overall dimensions(L×W×H)	1150×570×1710 mm	1400×650×1900 mm
Packing dimensions(L×W×H)	1700×950×1450 mm	1800×8500×1950 mm
N.W/G.W	700/900 kg	900/1100 kg
