Home > Products > Wrapping Film Machine > 1500mm 2 or 3 layers Air Bubble Film Machine
1500mm 2 or 3 layers Air Bubble Film Machine
USD $20,000 - $60,000
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- Shanghai Port
- T/T
You May Like
Product Details
Condition: | New | Application: | Film | Plastic Processed: | PE |
Screw Design: | Double-screw | Automatic Grade: | Full Automatic | Place of Origin: | Shanghai, China |
Brand Name: | TL-1500 mm Two Layer Air Bubble Film Machine | Model Number: | TL-80-65-1500mm | Voltage: | 380V |
Power(W): | 110KW | Dimension(L*W*H): | 1200*4500*3500 | Weight: | 6800KGS |
Certification: | ce | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1500mm 2 or 3 layers Air Bubble Film MachineHigh Configuration ,
Automatic Loader
Full automatic
1500mm 2 or 3 layers Air Bubble Film Machine
This machine uses LDPE,LLDPE granule material to produce air bubbe film, which widely used as post parcel packing,precise instruments packing funiture packing etc.

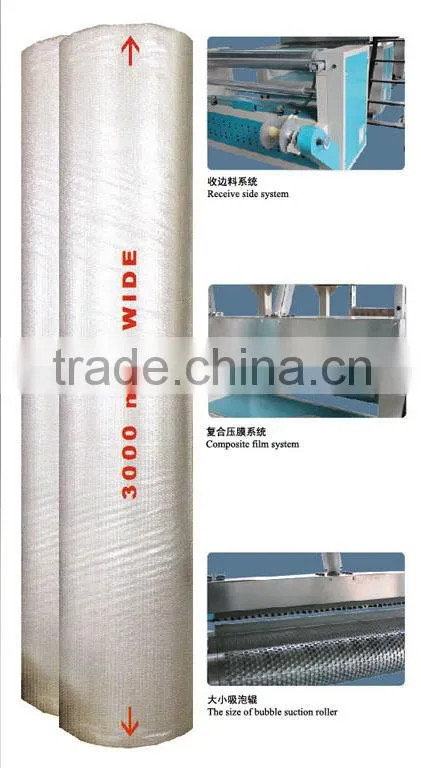

This machine is composed of extruder, air bubble forming device, perforaion device, widing device,cabinet control system.
Model | TL-1500mm | TL-2000mm | TL-2500mm | TL-3000 |
Screw Diameter | Φ80mm | Φ90mm/80mm | Φ105mm/90mm | Φ110mm/90mm |
Auxiliary Screw Dia | Φ 65mm | Φ 80mm | Φ 90mm | Φ 100mm |
Finished film width | 1500mm | 2000mm | 2500mm | 3000mm |
Capacity/output | 90kg/hor | 110kg/hour | 150kg/hour | 200kg/hour |
Main Motor Power | 22kw | 30kw | 37kw | 45kw |
Auxiliary Motor Power | 15kw | 22kw | 30kw | 37kw |
Total Power | 120kw | 200kw | 240kw | 260kw |
Screw L/D | 30:1 | 30:1 | 30:1 | 30:1 |
Power | 380V,3Ph,50Hz |
