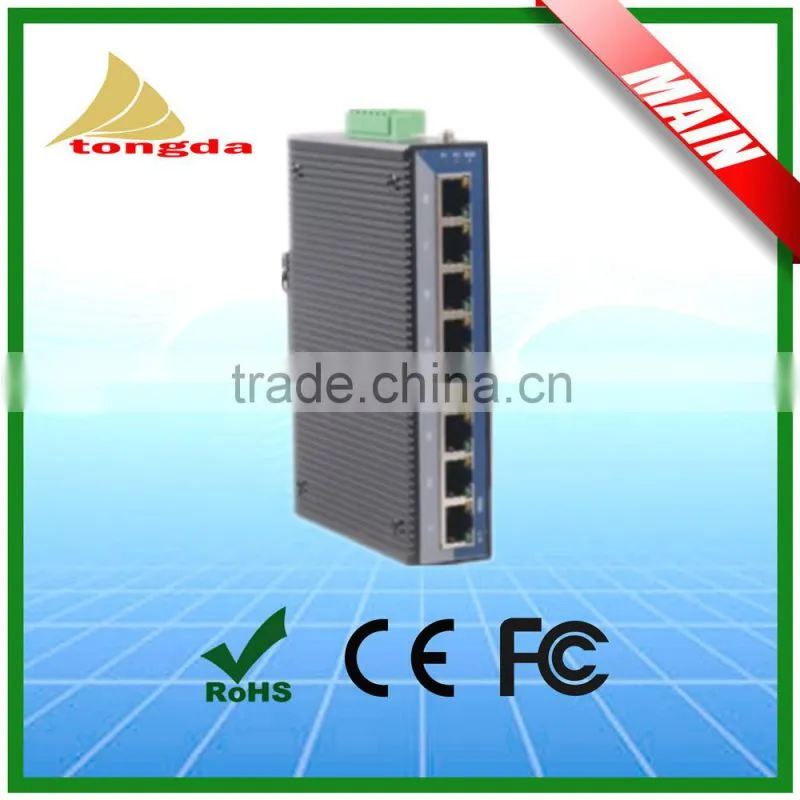

8 Port Din-Rail 100Base Hardened Unmanaged Industrial network switch

8/10 Port Din-rail 10/100Base Unmanaged Industrial Ethernet Switch

ATIEN2208/2210

Models

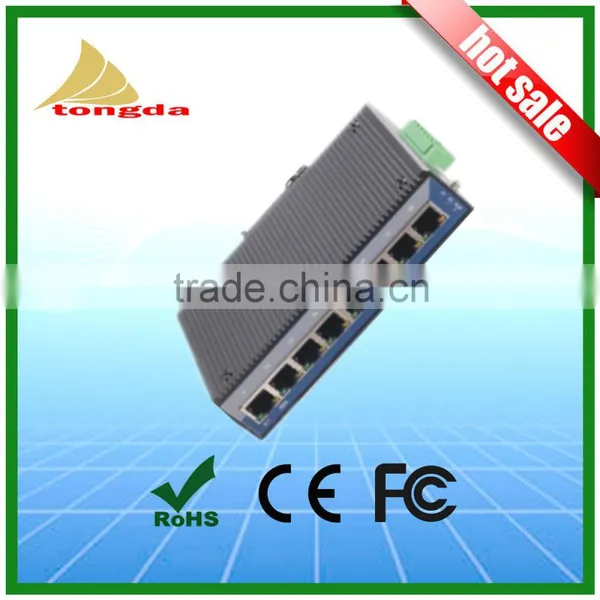

ATIEN2208

8×10/100Base-TX

ATIEN2208-1S/M

1×100Base-FX+7×10/100Base-TX

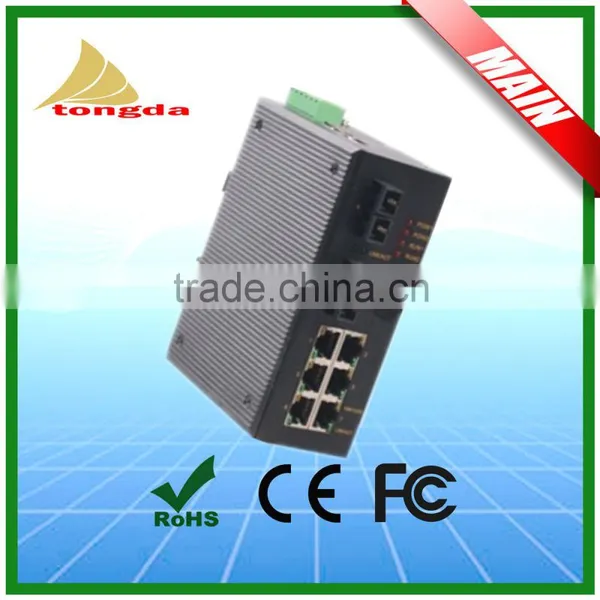

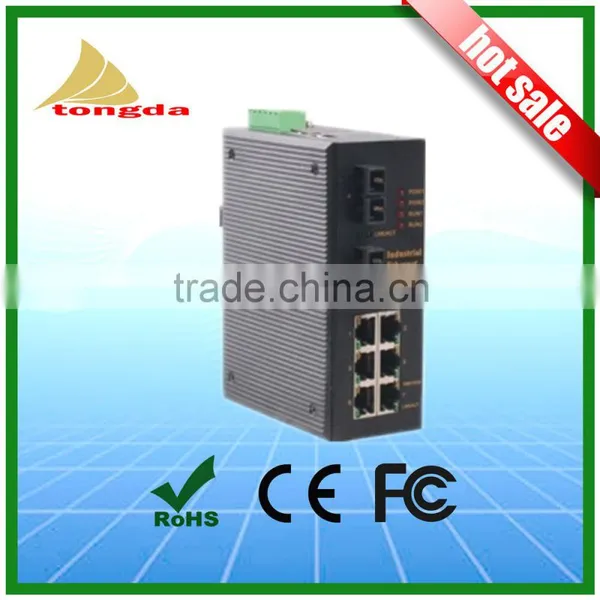

ATIEN2208-2S/M

2×100Base-FX+6×10/100Base-TX

ATIEN2208-4S/M

4×100Base-FX+4×10/100Base-TX

ATIEN2210-2S/M-8T

2×100Base-FX+8×10/100Base-TX

MIEN2210-8S/M-2T

8×100Base-FX+2×10/100Base-TX

Interface

10/100Base TX Port

10/100Base-TX Self-adaption Ethernet RJ45

100Base FX Port

Multi mode/Single mode

ST/SC/FC

Communication Distance

Twisted-pair

100m

Fiber optic line

Multi mode: 1310nm, 5Km (100Base)

Single mode: 1310nm, 20Km/40Km (100Base)

              1550nm, 60Km/80Km(100Base)

Power

Power Supply

DC12~48V, AC85~265V/DC110~370V

Power consumption

<5W (MIEN2210-2S/M)

<5.3W (MIEN2210-8S/M)

<8W (MIEN2208 Serial)

Support

Over-load protection, reverse connection, Redundance

Backplane bandwidth

3.2G

MAC

4K

IEEE Standard

IEEE802.3,IEEE802.3u,IEEE802.3x

Environmental

Operating temperature

-40°C~85°C

Storage temperature

-45°C~85°C

Ambient Humidity

5%~95%

Front LED Lights

Power lights

PWR

Interface lights

Link/ACT, Speed (TX)

Link/ACT ( FX)

Physical Data

Material

Aluminium housing

Size

114mm×55mm×110mm

Weight

0.6kg

Installation

Din-rail/Wall-mounted

IP

40
