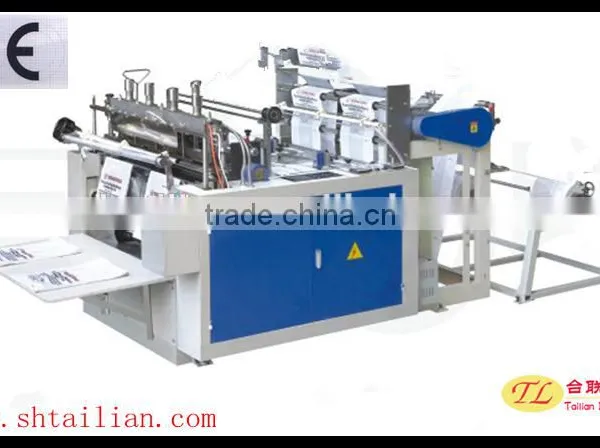

heat-sealing thermal bag-making machine
it adopts advanced photoelectric eyes tracking which makes printing pattern position accurate without error,the sealing synchronous with the heat-cuting without any pulling force and the the sealed bottom be firm and beautiful,equipped with variable frequency speed regulating motor,it has other functions such as energy-saving,over voltage and over current protection,and equipped with automatic counting device,it can arbitarily set the binding quantity and can automatically discharge and reset after the bags arepilled to the set quantity.
technical data:
MODEL TL-600 TL-700
Max.sealing and cutting width 500mm 600mm
sealing and cutting length 100-1000mm 100-1000mm
sealing and cuting thickness 0.005-0.5mm 0.005-0.5mm
error length +/- 1mm +/- 1mm
bag-making speed 40-120pcs/min 40-120pcs/min
power of main motor 0.75kw 1.1kw
heating power: 2kw 2.4kw
total power: 3kw 3.8kw
weight: 800kg 900kg
overall dimension: 2600X1100X1500mm 2600X1300X1500mm
