Help CenterHydraulic Test Bench YST500/HB With Diesel Engine Hydraulic Drive
Related Products
-
YST300 Hydraulic Test Bench for Uchida Hydraulic PumpsUS$ 12,000 - 37,000MOQ: 1 Set -
YST500 Hydraulic Test Bench for Uchida Hydraulic PumpsUS$ 12,000 - 37,000MOQ: 1 Set
-
Hydraulic Breaker Test Bench General Valve Test StandUS$ 12,000 - 37,000MOQ: 1 Set
-
Highland YST Hydraulic Pump Test Stand for SaleUS$ 12,000 - 37,000MOQ: 1 Set
-
Competitived Price Hydraulic Cylinder Testing EquipmentUS$ 12,000 - 37,000MOQ: 1 Set

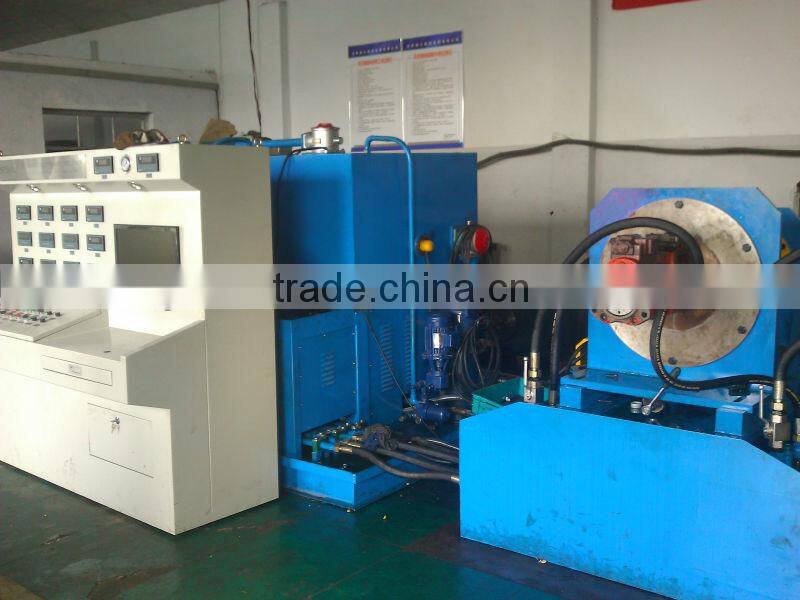

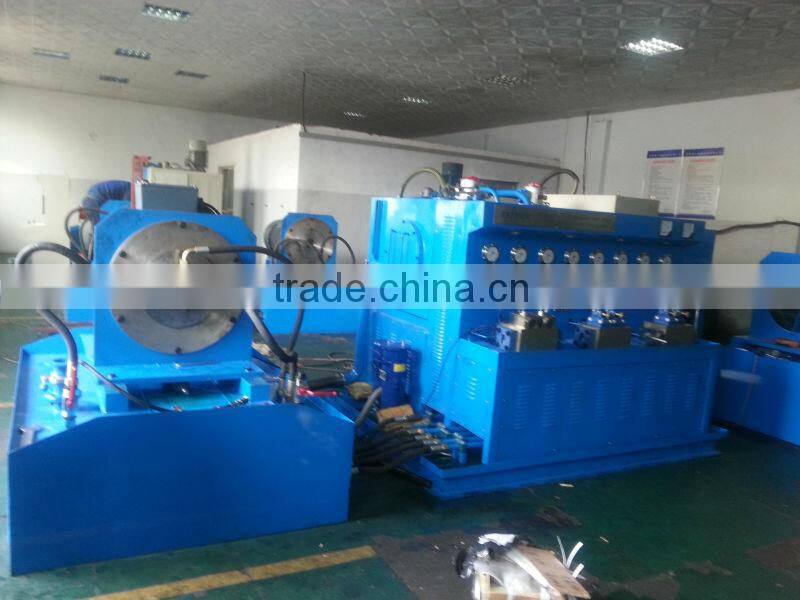

hydraulic test bench YST500/HB with diesel engine hydraulic drive Application Range:
YST/H series of power recovery hydraulic test bench is the special equipment for the delivery inspection of components for manufacturers of hydraulic pumps and hydraulic motors. The system adopts quality hydraulic components made both at home and abroad. And the accessories feature compact structure, reliable quality, reasonable design, as well as easy operation and maintenance. The product is of internationally advanced level.
The test bench adopts advanced power recovery technology in the world, which can save energy by over 70%. All the valves are of cartridge structure, and it has the advantages of simple collocation, stable performance, low trouble rate and easy maintenance.

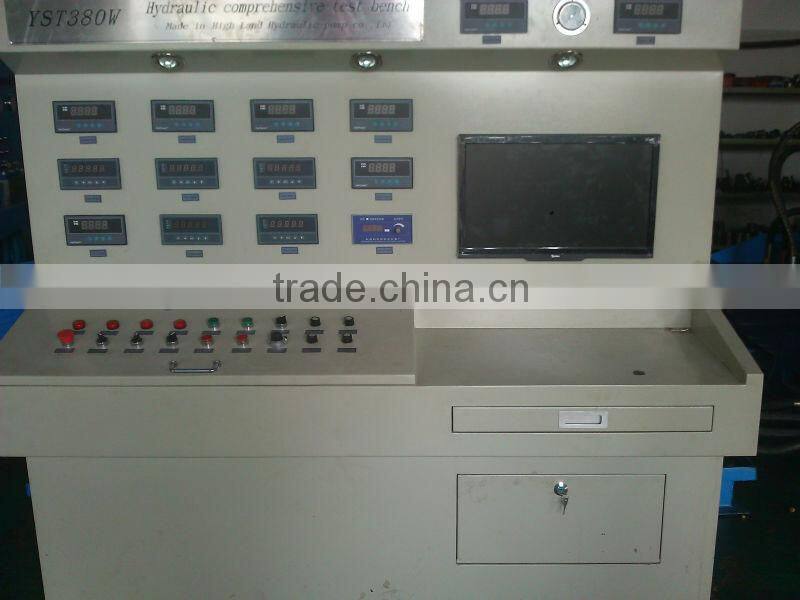

The equipment can be controlled either manually or automatically through computerized control, which makes it simpler to operate.
Technical Parameters:
Flow Rate:500L/min
Pressure:40Mpa
Drive System Power:75kw
Output Power:156kw
Suitable manufacturer or repairer of hydraulic pump/motor/valve/cylinder Automatically print test report and test curve
Parameters and Features:
1.Pressure: 35Mpa; 42Mpa
2.Power: 7 5kw; 90 kw ;110 kw; 160 kw
3.Load Location: Locale; Long distance(computer)
4.Provide oil: oblige; absorb
5.Show location: Locale; Computer
6.Working medium: hydraulic oil
7.Oil tank cubage: 1400L; 2000L
8.Oil filtrate: degree filter; 4degree filter; filtrate equipment
9.Cooling way: wind cooler; water cooler
10.Accessories: Connect shaft (2 Pc) ; outline drawing of shaft( 1 pc)
11.Increasing function: Close pump test; Torsional moment power test.
Send Inquiry to This Supplier
