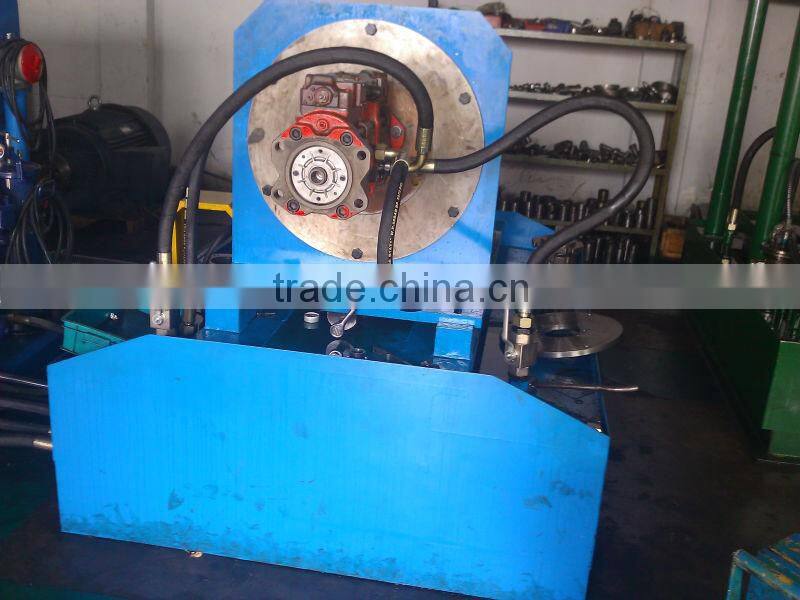

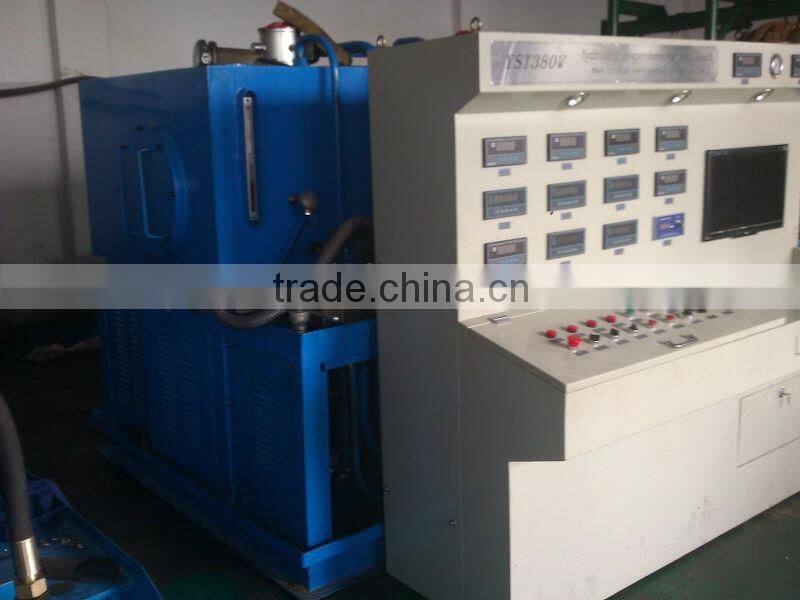

YST300 hydraulic test bench for Uchida hydraulic pumps
Application Range:
YST Series Hydraulic testing table are used for checking and proofreading the products that include hydraulic pump,motor and valve,it also can conduct hydraulic system's breakdown diagnosis,these products are researched and produced by ourselves,so we could combine conduct according to customers'needs.
Technical Parameters:
Flow Rate:300L/min
Pressure:35MPa
Power:75KW
Motive Force:motor
Hydraulic comprehensive test bench:
Hydraulic components test bench applicable to all kinds of general hydraulic components of the performance test, can satisfy different user's testing requirements.
Hydraulic components test bench is divided into five varieties: hydraulic valve test rig, hydraulic pump test bench and hydraulic motor Function test rig, hydraulic cylinder test rig and comprehensive test bench. This series of test bench has designed various configuration, for example: proportional control system, digital display system, variable frequency speed regulation system and computer measurement and control system etc, the user can select it according to your need.
1. National standards: GB/T8104,GB/T8105,GB/T8106,GB/T7936,GB/T 15622
2. Industry standards:
JB/T8728,JB/T7039,JB/T7042,JB/T7044
3.Total power 75KW,90KW,110KW,132KW,160KW,315kw,350kw
4. Range of test presure 0~40MPa
5. Range of flow rate 0~500L/min
6. Range of rotational speed 0~3000r/min
7. Composition :
Dynamic system, hydraulic control system, hydraulic oil filter temperature control system and electric control system, data acquisition test system.
8.Applicable area:
It apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields.
