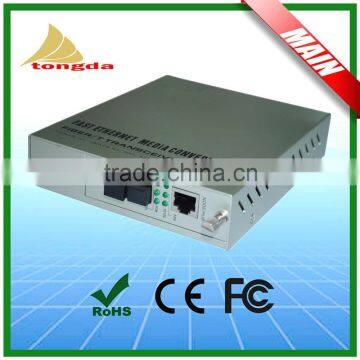

100MP Single Fiber 20KM SC FC Optical Media Converter

Name: 100MP Single Fiber 20KM SC FC Optical Media Converter
Brand: Atongda OEM
SKU: 114810367
Availability: InStock

Shenzhen Atongda Technology Co., Ltd.

US$ 12 - 16 MOQ: 10 Pairs

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Atongda OEM

Model Number:

ATD-A1110-SS320

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Atongda OEM

Model Number ATD-A1110-SS320

100MP Single fiber 20KM SC FC Optical Media Converter

Description

Ø 10/100M WDM series media converter can convert Optical-Electric Ethernet signals between 10/100M UTP interface (TX) and 1000M optical fiber interface (FX).
Ø The traditional 10/1000M gigabit Ethernet can be extended to the distance of 120km through single optical fiber link.
Ø It must be used in couples,because the transmitted optical differs from the receive optical in wavelength.
Ø 6 Group LED indicated lights could fully monitor the working conditions of converters.
Ø It is easy for users to observe and diagnose the failure of converters.

Features

Ø The transmission of a channel signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber.
Ø Auto negotiation function allows UTP port to auto select 10/100M and Full Duplex or Half Duplex.
Ø The UTP port supports MDI / MDI-X auto crossover.
Ø Supporting the max 1536 bytes packets
Ø Internal circuit of prevented thunder could greatly reduce damage of converters caused by thunderbolt induction.
Ø Converter working mode could be chosen: Store and forward switch mode, Modified cut-through switch mode, or Converter mode.
Ø External power supply and Internal Power Supply.

Technical Specification

Operating standards:	IEEE802.3u,10/100Base-TX and 100Base-FX;
Data buffer:	128K.
Connectors:	1310nm ,1490nm,1550nm
Fiber ( Singlemode):	SC/ST/FC
Network Cable:	10BASE-T: Category 3,4 or 5 UTP/STP (Max:100m) EIA/TIA- 568 100 Ω STP (Max:100m) 100BASE-TX: 2pairs of category 5 UTP (Max:100m) EIA/TIA- 568 100 Ω STP (Max:100m) 1000BASE-FX: SMF:8.3/125,8.7/125,9/125,10/125μm (10~100km)
LED Power:	FX SD, FX Link/Act, TX 100, TX FDX, TX Link/Act.
Power Requirement:	AC 110 ~ 240V to DC 5V; DC48V to DC 5V.
Ambient Temperature:	-20~ 70°C
Storage Temperature:	- 40 ~ 75 °C
Humidity:	5 ~ 90%
Dimensions:	Internal power: 30×110×140mm
Dimensions:	External power: 26×70×93mm

Product List

10/100M Single Fiber Media Converter (Internal power)
Model	Description
ATD-A1110-SS320 ATD-A1110-SS520	Single fiber, Single-mode, 20km, SC/ST/FC, inside power,
ATD-A1110-SS340 ATD-A1110-SS540	Single fiber, Single-mode, 40km, SC/ST/FC, inside power,
ATD-A1110-SS360 ATD-A1110-SS560	Single fiber, Single-mode, 60km, SC/ST/FC, inside power,
ATD-A1110-SS480 ATD-A1110-SS580	Single fiber, Single-mode, 80km, SC/ST/FC, inside power,
10/100M Single Fiber Media Converter (External power)
ATD-B1110-SS320 ATD-B1110-SS320	Single fiber, Single-mode, 20km, SC/ST/FC, inside power,
ATD-B1110-SS340 ATD-B1110-SS560	Single fiber, Single-mode, 40km, SC/ST/FC, inside power,
ATD-B1110-SS460 ATD-B1110-SS560	Single fiber, Single-mode, 60km, SC/ST/FC, inside power,
ATD-B1110-SS480 ATD-B1110-SS580	Single fiber, Single-mode, 80km, SC/ST/FC, inside power,
