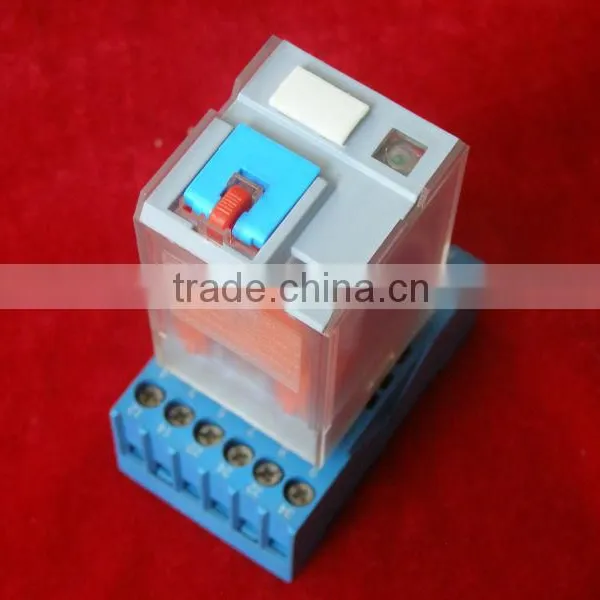

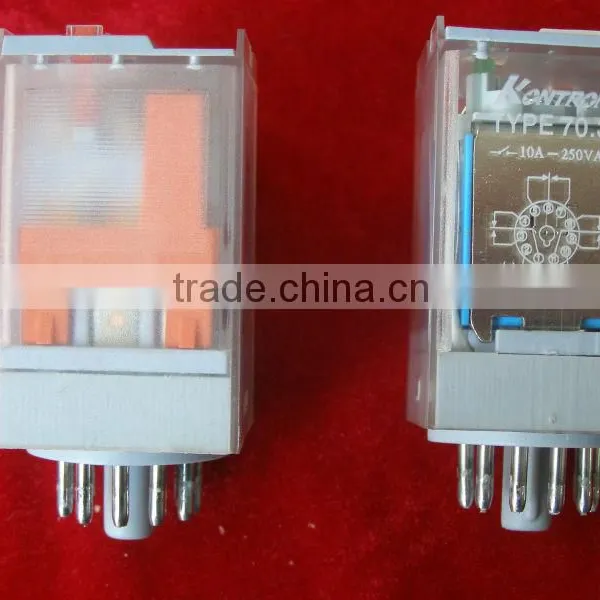

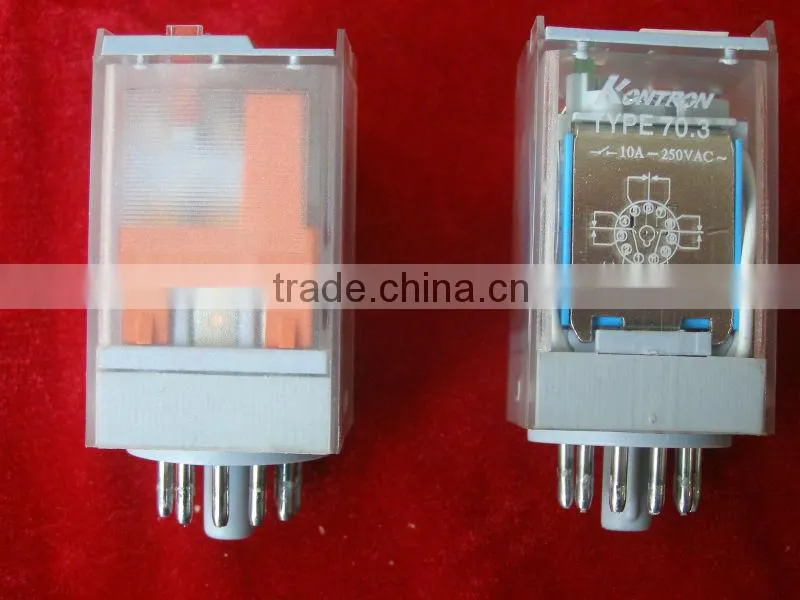

kontron 10A 70.2 relay
USD $1 - $5
/ Piece
300 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- SHANGHAI
- Credit Card
You May Like
-
07AC91D Analog volume I/O module
-
PM630 Processor board Control unit
-
IS220PPDAH1B Distribution system feedback model Board feedback signal
-
DSDP140B Power module Real-time quality control and machine optimization
-
DSDP140A Pulse counter board Long life and low failure rate
-
5SHX1445H0002 3BHL000387P0101 Driver board module Stable turn-off capability
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | kontron | Model Number: | type70.3/70.2 |
| Theory: | Electromagnetic Relay | Usage: | General Purpose | Size: | Other, 34.7x34x59mm |
| Protect Feature: | Other, dust-cover | Contact Load: | High Power |

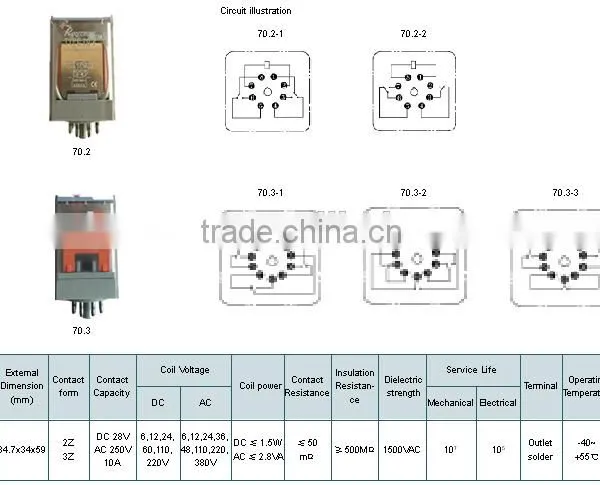

Product Description
relay
| size | 34.7x34x59MM |
| contact form | 3/2C |
| contact material | Agcdo |
| contact rating | 10A250VAC/DC28V |
| contact resistance | ≤50mΩ |
| coil voltage | DC:5,6,9,12,24,48,60,110,220 AC:5,6,9,12,24,48,60,110,220,240,380V |
| coil power | 1.5W;2.8VA |
| strenth between coil&contact | 2500VAC |
| strength between contact&contact | 1500VAC |
| insulation resistance | ≥100MΩ |
| mechanical life | 1000000 ops |
| electrical life | 100000 ops |
| working temprature | -40-85c |
| weight | 82 grams |
| equal model | Schrack:RT |
