Home > Electrical & Electronics > Relay & Contactor > Relay > UL,TUV CE Certified General Purpose 14 Pin With LED and Test Button Relay

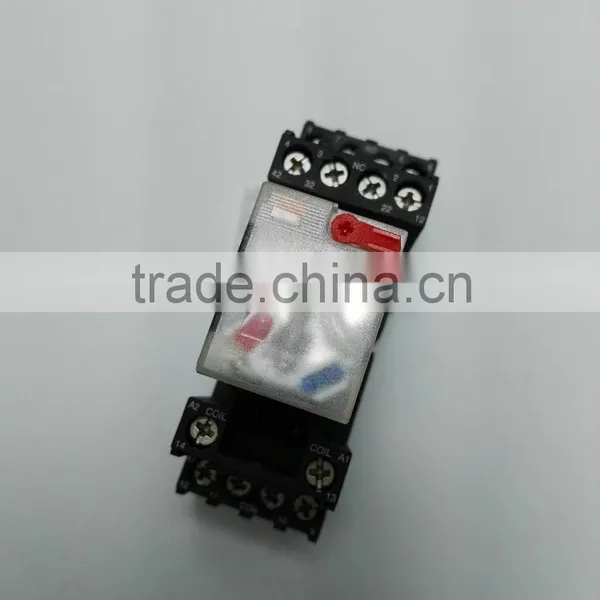

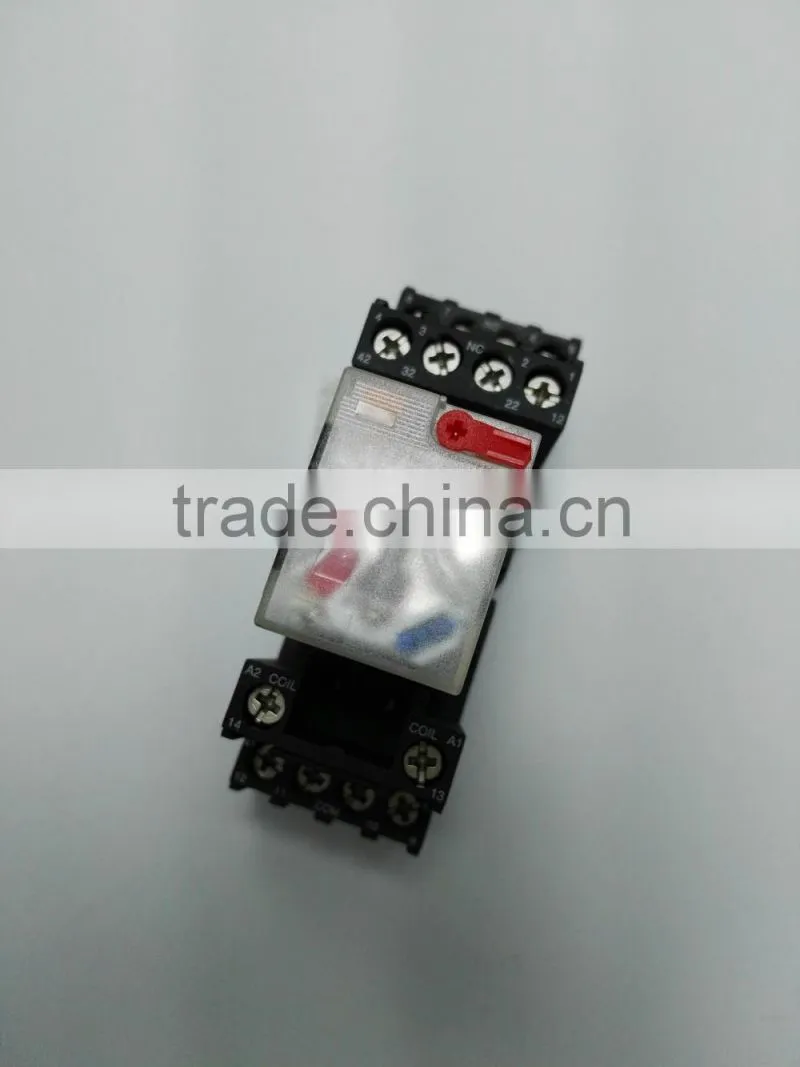

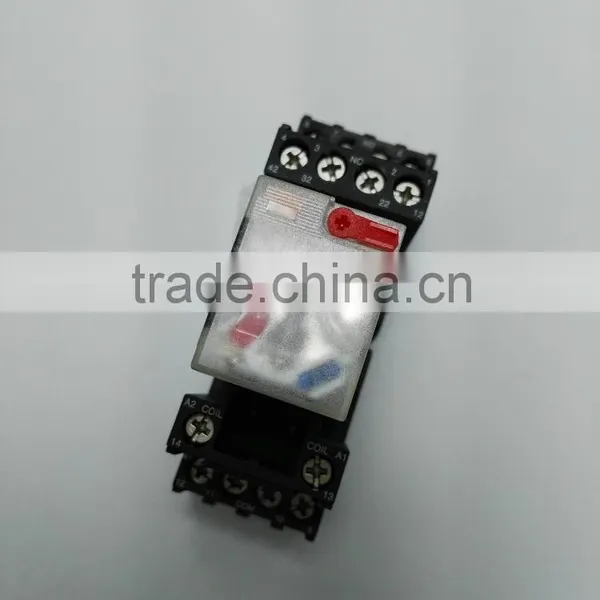

UL,TUV CE Certified General Purpose 14 Pin With LED and Test Button Relay
US$ 0.8 - 1
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
kontron
Model Number:
REMY4
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UL,TUV CE Certified General Purpose Kontron RelayUS$ 0.8 - 1MOQ: 50 Pieces -
Kontron 5A 14 Pin With LED Lamp and Test Button General Purpose RelayUS$ 1.5 - 2MOQ: 500 Pieces
-
80A Single Pole Din-rail Power RelayUS$ 1 - 10MOQ: 1 Piece
-
New Kontron 5A 14 Pin Plug-in General Purpose RelayUS$ 1.1 - 1.3MOQ: 500 Pieces
-
Kontron JQC-3F Cubic Miniature Heavy Duty 10A 4/5 Pin Power Pcb RelayUS$ 0.2 - 0.3MOQ: 1000 Pieces
Place of Origin
Shanghai, China
Brand Name
kontron
Model Number
REMY4
Theory
Electromagnetic Relay
Usage
General Purpose
Size
Other, 27.5X21X36mm
Protect Feature
Epoxy
Contact Load
High Power
RELAY
| size | 27.5x21x36mm |
| contact form | 2C/4C |
| contact material | Agcdo |
| contact rating |
2C/4C 5A
|
| contact resistance | ≤50mΩ |
| coil voltage |
DC:5,6,9,12,24,48,60,110,220V AC:5,6,9,12,24,48,60,110,220,230,240,380V |
| coil power | 1.2VA ,0.93w |
| strenth between coil&contact | 1500VAC |
| strength between contact&contact | 1500VAC |
| insulation resistance | ≥100MΩ |
| mechanical life | 1000000 ops |
| electrical life | 100000 ops |
| working temprature | -40-70c |
| weight | 38grams |
| equal model | omron:MY2/MY4 |
