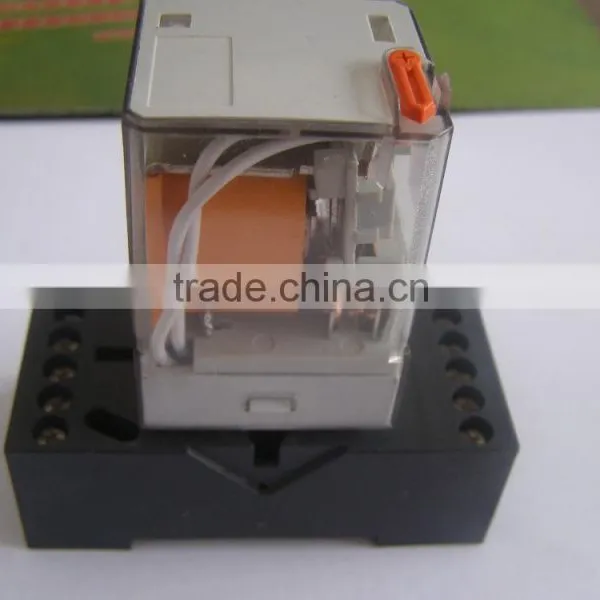

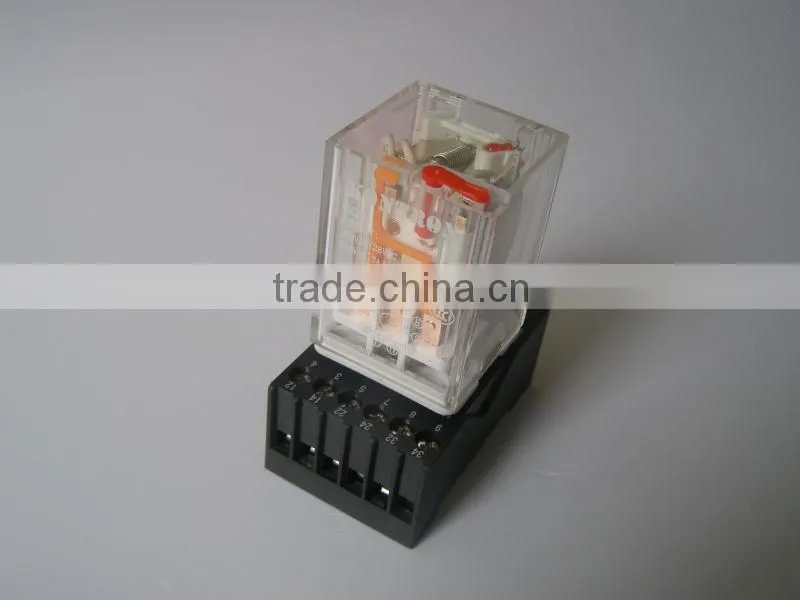

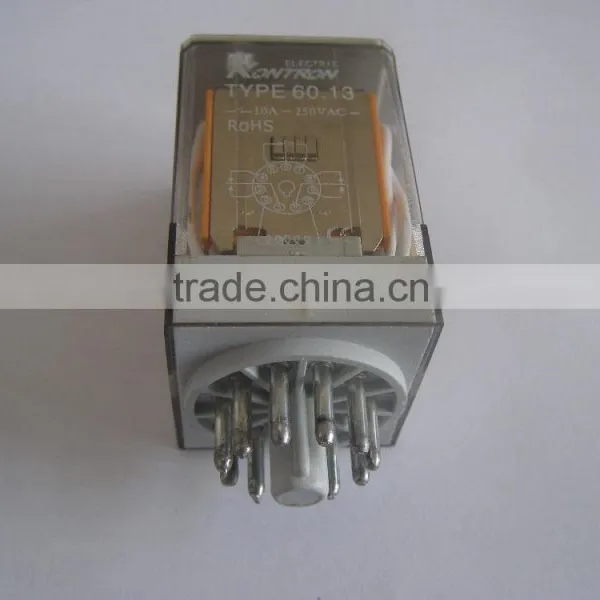

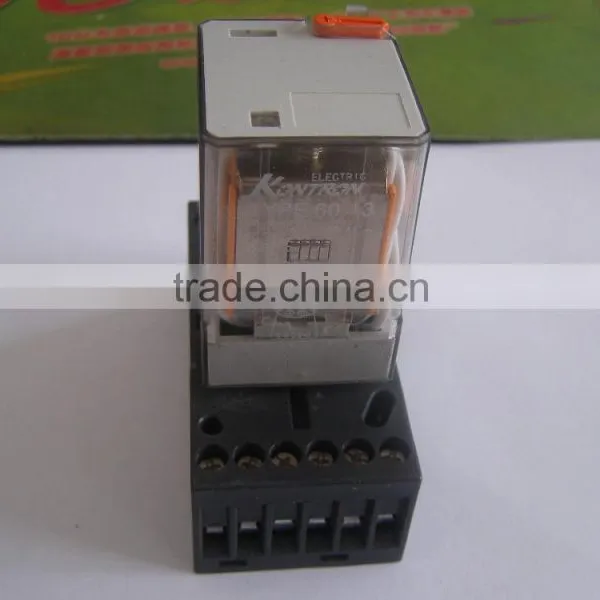

kontron high power 8/11 pin relay
USD $1 - $1.5
/ Piece
100 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card
You May Like
- Flygt Pump protector relay Salemer 24 V voltage leakage protection
- American Xylem brand original imported leakage protection relay for Flygt pump MiniCasll
- Xylem Flygt Pump protector monitor relay 24V MINICASLL
- DSPC172H Programmable logic controller Fast data processing is possible
- VMIVME-2540-000 Intelligent counter/controller
- SPS5785 Analog input and output
Product Details
Place of Origin: | Shanghai, China | Brand Name: | kontron | Model Number: | 60.12/60.13 |
Theory: | Electromagnetic Relay | Usage: | General Purpose | Size: | Other, 34.7x34x59mm |
Protect Feature: | Other, dust-cover | Contact Load: | High Power |
Product Description
Product Description
1:contact rating:10A 250VAC
2:LED AND PUSH TEST BUTTON installed
3:5000VAC dielectric strength
relay
size | 35.5x35.5x55.5MM |
contact form | 2/3C |
contact material | Agcdo |
contact rating | 10A250VAC/DC28V |
contact resistance | ≤50mΩ |
coil voltage | DC:5,6,9,12,24,48,60,110,220 AC:5,6,9,12,24,48,60,110,220,240,380V |
coil power | 1.5W;2.8VA |
strenth between coil&contact | 2500VAC |
strength between contact&contact | 1500VAC |
insulation resistance | ≥100MΩ |
mechanical life | 1000000 ops |
electrical life | 100000 ops |
working temprature | -40-85c |
weight | 82 grams |
equal model | Schrack:80.2 80.3 |
