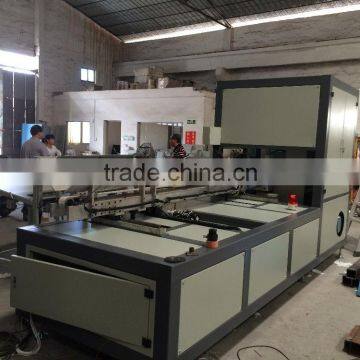

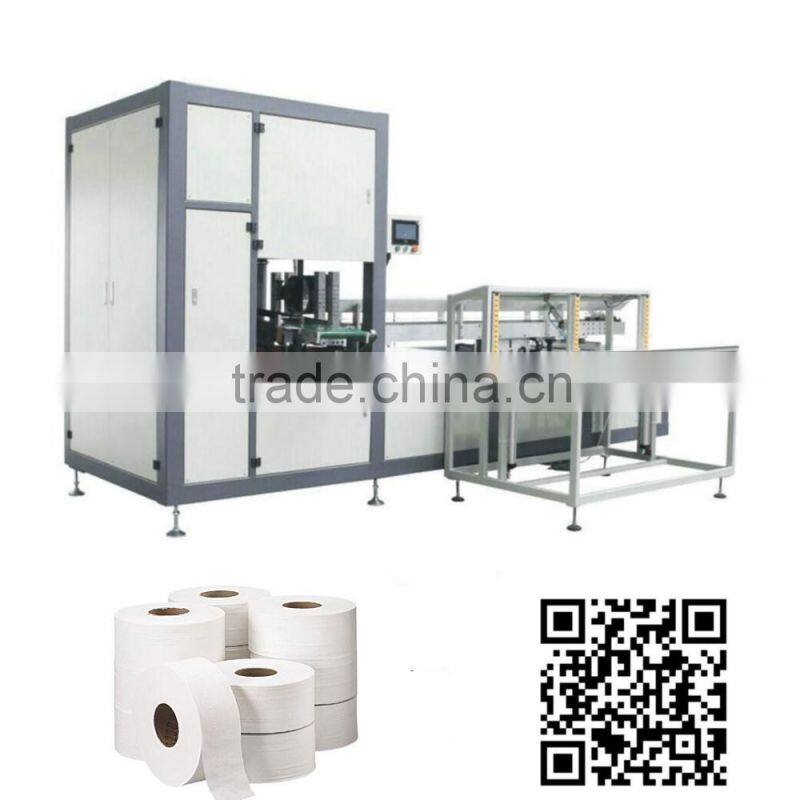

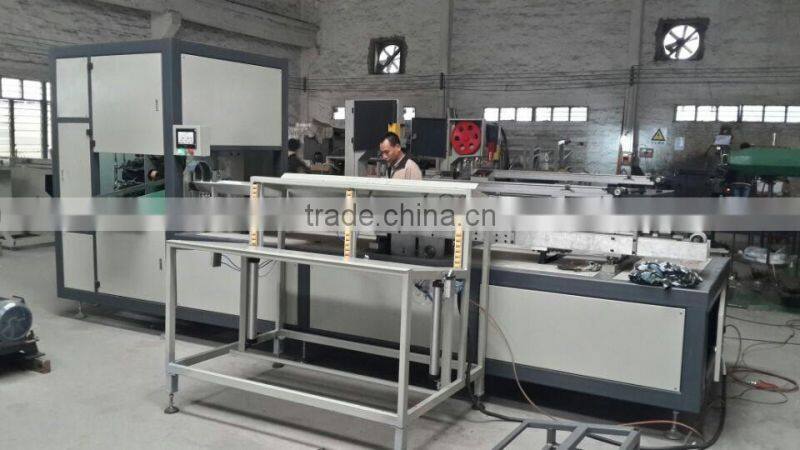

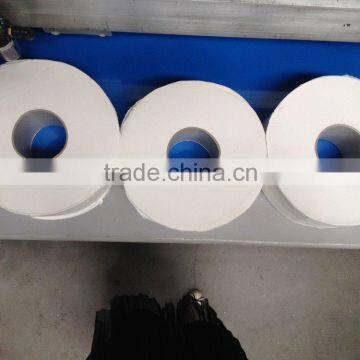

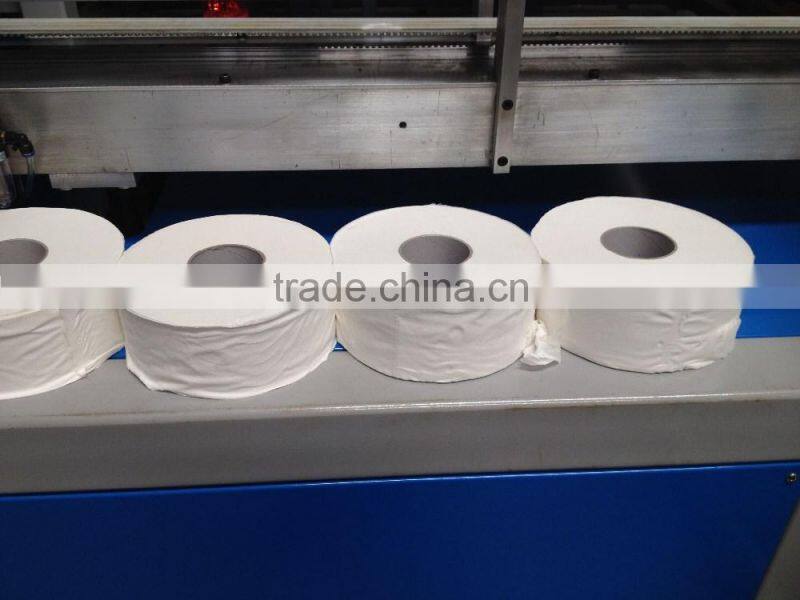

Low price full-automatic maxi roll paper cutting machine XY-AI-500
The equipment is operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.
Features:

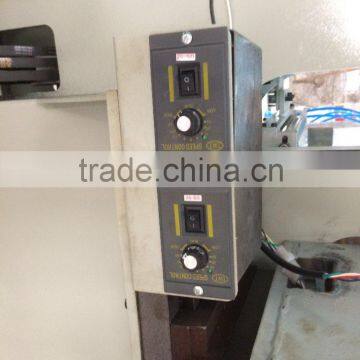

1. The transducer independent driver is used in the main motor;
2. The cutting knife automatically stops and gives an alarm;
3. When the paper can not be cut down, the equipment will stop and ask you to set the cutting depth.
4. The high precision servo system is used in the feed motor servo system, to ensure the quality of the finished product;
5. The equipment automatically calculate the quantity of the finished product being cut; according to the raw material and the length of the finished product;
6. When data input is incorrect, the equipment breaks off and prompts to adjust on the interface;
7. Cut with knife is used in the equipment, which reduce the use cost of the user;

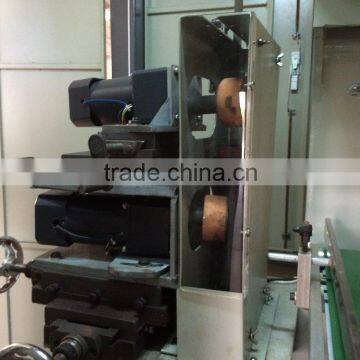

8. The automatic sharpening knife system is used in the equipment, can adjust the sharpening knife system according the requirement of paper being cut, which increase the cutting life;
9. The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency
10. The thickness of paper core should be less 3mm
Technical data:
Cutting speed | 15-20cuts/minute |
Cutting channel | single channel |
Cutting blade | band saw blade |
Cutting blade size | 4430*70*0.9 |
Log length | Max. 2200m Or Max. 2850mm |
Tolerance | ±1mm |
Cutting length | Max. 250mm |
Cutting diameter | 90-250mm(by changing moulds) |
Thickness of paper core | Max.3 mm |
Power supply | 3 phase 4line 380V 50HZ |
Machine weight | 1200KG |
Overall size of machine | 4250*3350*2300mm(2.2m jumbo roll) 5000*3000*2000mm (2.2-2.85m jumbo roll) |
Separated size
| Main machine: 4250*1700*2000mm(2.2m jumbo roll) Paper storage: 1500*1650*1300mm( 2-4 logs ) |
Main machine: 5000*1700*2000mm(2.2-3m jumbo roll) Paper storage: 1700*1650*1300mm ( 2-4 logs ) |
Video Links: https://youtu.be/XGG6tOWaxRI
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer’s factory, the charge of visa, food ,transportations and accommodation in buyer’s city.
