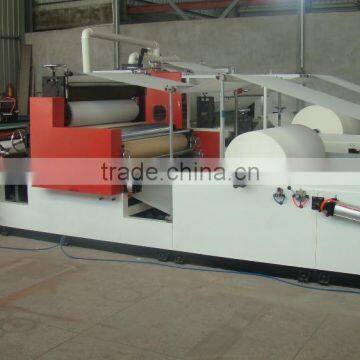

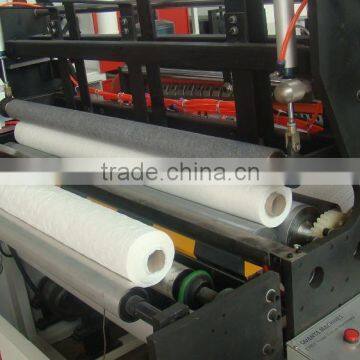

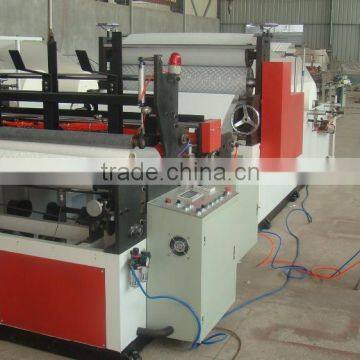

full auto hand towel tissue roll embossing machine converted kitchen towel roll machine
XY-TQ-A This equipment is to perforate and rewind the jumbo roll paper (raw paper) into various sizes of Kitchen towel roll paper according to the requested. The finished small kitchen towel paper is neat, in good order and with equality tension.

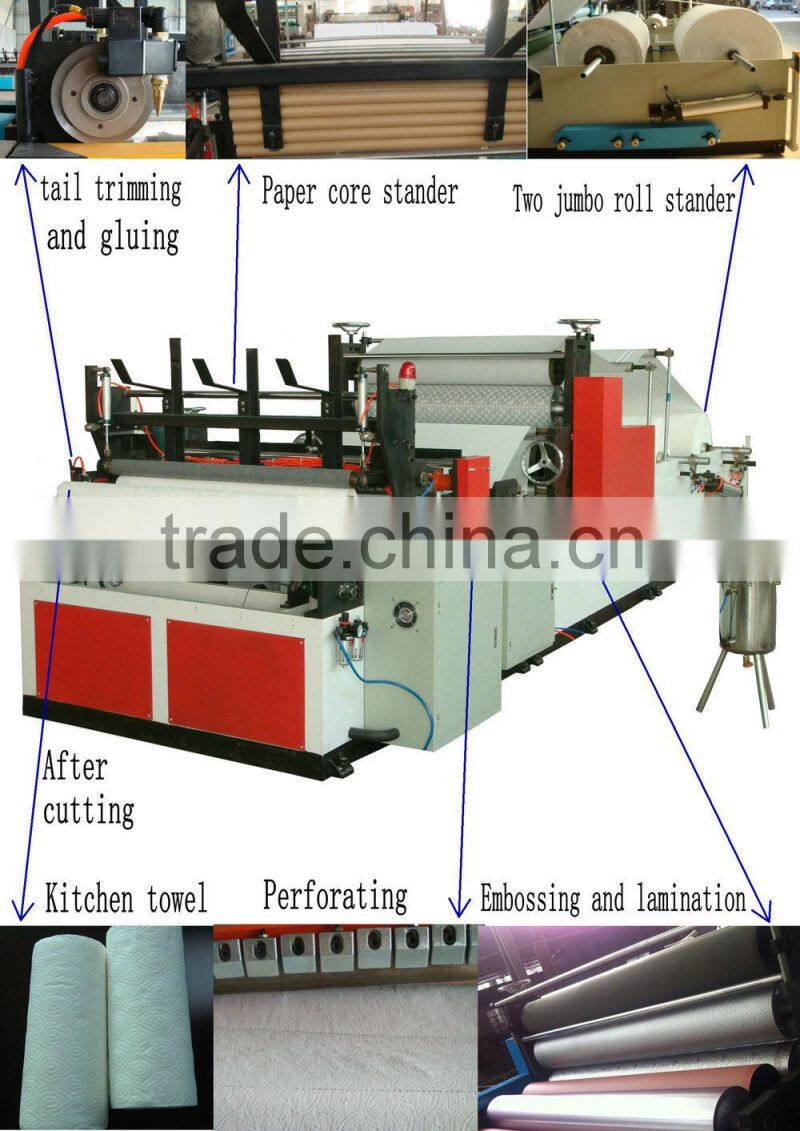

The production process is: Unreeling—→Embossing—→Glue Laminating
—→Perforating—→Rewinding—→Tail-gluing—→Edge trimming
— →Automatic core loading.
Machine Model |
1092 |
1575 |
2000 |
2200 |
2400 |
2600 |
2800 |
Width of jumbo roll (mm) |
1200 |
1750 |
1950 |
2150 |
2350 |
2550 |
2750 |
Finished Products Diameter |
Φ90~120mm (Tightness can be adjustable) |
||||||
Finished Products Inner Diameter |
Φ40~55 mm |
||||||
Jumbo roll diameter (mm) |
Φ1200 (Other sizes please point out) |
||||||
Jumbo Roll Inner Diameter |
76.2 mm(other sizes please point out) |
||||||
Perforation distance (mm) |
4 blade,90~160mm; 2 blade,180~320mm; |
||||||
Production speed |
150-200 m/minute |
||||||
Air pneumatic system |
3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer) |
||||||
Power |
4.5kw-15kw (380V 50Hz) |
||||||
Overall size (L×W×H) |
6200X2750X1800 mm |
||||||
Weight of equipment |
3-5 Tons |
||||||
Chosen items (Should be ordered separately) | |||||||
Embossment |
Single embossment, Double embossment, Edge embossment |
||||||
Jumbo roll stander |
1-3 plies |
||||||
Rewinding unit |
Non-core unit |
||||||
Printing unit |
1-3 color printing as per request |
||||||
Other special request for machine is welcome | |||||||
Why needs embossing? (Pattern selected by the customer)
Embossing enhances hand feel and absorbency, meaning fewer tissue paper used per hand dry.
Both two-Ply bath tissue rolls are embossed for higher absorbency and comfort.
https://youtu.be/A5lDN-TM08M
/watch?v=p7oiFJkuTPg&feature=youtu.be
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1.One-year maintenance service. Any damage spare part can be exchanged from our company directly (excluding the easy damaged goods). After one year, we will continue to assist you both on technical problem and the quality level for long-term.
2.The easy damaged goods will be along with the machine.
Good quality of machine with reasonable price.
Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer’s factory, the charge of visa, food ,transportations and accommodation in buyer’s city.
full auto hand towel tissue roll embossing machine converted kitchen towel roll machine
