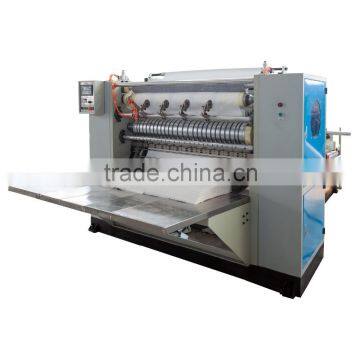

Automatic Z Fold Hand Paper Machine Manufacturer XY-BT-288
Professional Hand Towel Machine Features:
The machine embossing and cutting off the towel paper .The folding of product is "N"/"Z" type folding and you can draw it one by one .This kind of towel paper is used widely in hotel, office and kitchen etc, that is convenient and sanitation. We adopt original creation full vacuum absorption technology, the adaptability of raw material is so strong .The folding, cutting ,counting etc several processes are going together.
Video link: https://youtu.be/4nYeaaFdTXM

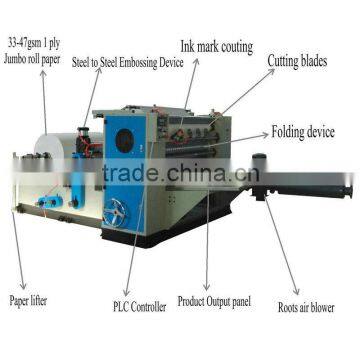

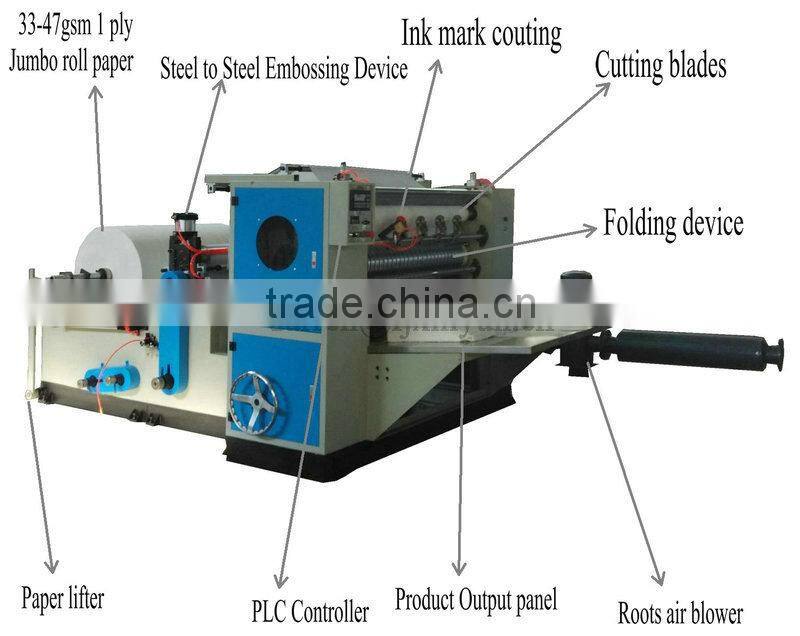

Hand Towel Folding Machine Overview
1. Jumbo Roll stander with one unit
2. Paper Tension Control system
3. Steel to Steel Embossing Device
4. Ink marking counting system
5. Product Output panel
6. Roots air blower
Machine Specification:
| Machine Model | XY-BT-288 | ||||||
| Speed (sheets/minute) | 2 Lines | 3 Lines | 4 Lines | 5 Lines | 6 Lines | ||
| 800 | 1,200 | 1,600 | 2,000 | 2,400 | |||
| Design Product Capacity | 400 sheets/line/minute | ||||||
| Jumbo Roll Size | 1150mm(W) 1200mm(Ø) | ||||||
| Jumbo Roll Material Qualify |
Paper Basic Weight: 33~47 gsm/1 ply Paper Material:100% pure paper Jumbo Roll Paper Core: 3 inches |
||||||
| Interfold Style | N Fold Z folding | ||||||
| Unfold Dimension | 230mm(L)x230mm(W) 210x210mm or customize | ||||||
| Interfold Dimension | 76.6mm(L)x230mm(W) | ||||||
| Controlling System | Frequency drive | ||||||
| Air compressor | Prepared by buyer | ||||||
| Power | 7.5 KW (380V 50Hz 3 Phase) | ||||||
| Overall size | 4000x2400x2000mm | ||||||
| Weight | 3 T | ||||||
Production flow is: Embossing--Folding--Cutting --Counting

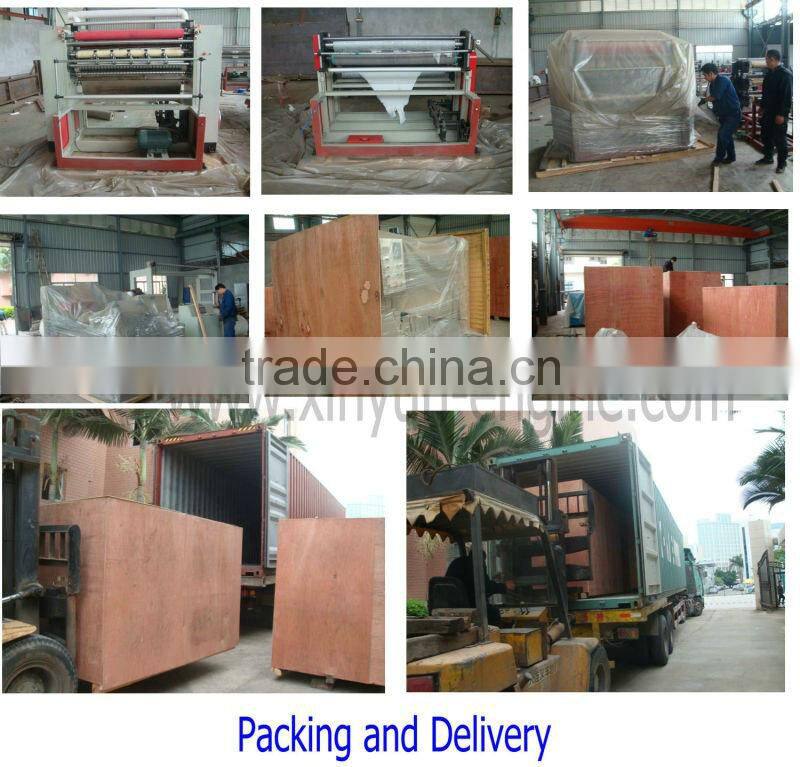

We can help customer to book shipping space and arrange shipping as well !
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer’s factory, the charge of visa, food ,transportations and accommodation in buyer’s city.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
