Paper towel making machine Auto hand towel paper cutting machine XY-BT-288
Professional Hand Towel Machine Features:

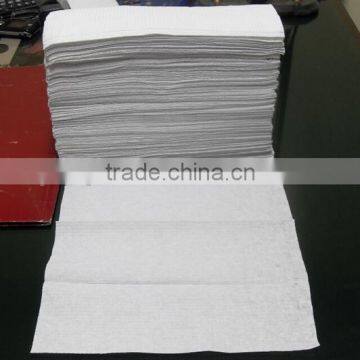

The machine embossing and cutting off the towel paper .The folding of product is “N”/“Z” type folding and you can draw it one by one .This kind of towel paper is used widely in hotel, office and kitchen etc, that is convenient and sanitation. We adopt original creation full vacuum absorption technology, the adaptability of raw material is so strong .The folding, cutting ,counting etc several processes are going together.
Machine Specification:
Machine Model |
XY-BT-288 |
|
||||||
Speed (sheets/minute) |
2 Lines |
3 Lines |
4 Lines |
5 Lines |
6 Lines |
|||
800 |
1,200 |
1,600 |
2,000 |
2,400 |
||||
Design Product Capacity |
400 sheets/line/minute |
|
||||||
Jumbo Roll Size |
1400mm(W) 1200mm(Ø) |
|
||||||
Jumbo Roll Material Qualify |
Paper Basic Weight: 33~47 gsm/1 ply Paper Material:100% pure paper Jumbo Roll Paper Core: 3 inches |
|
||||||
Interfold Style |
N Fold |
|
||||||
Unfold Dimension |
210mm(L)x210mm(W) |
|
||||||
Interfold Dimension |
70mm(L)x210mm(W) |
|
||||||
Controlling System |
Frequency drive |
|
||||||
Air compressor |
Prepared by buyer |
|
||||||
Power |
7.5 KW (380V 50Hz 3 Phase) |
|
||||||
Overall size |
4000x2400x2000mm |
|
||||||
Weight |
3 T |
|
||||||
Hand Towel Folding Machine Overview
1. Jumbo Roll stander with one unit
2. Paper Tension Control system

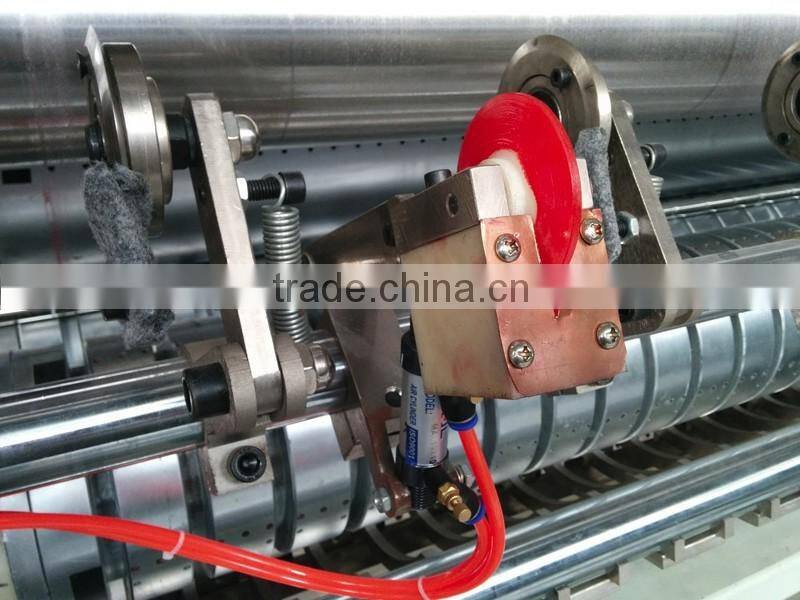

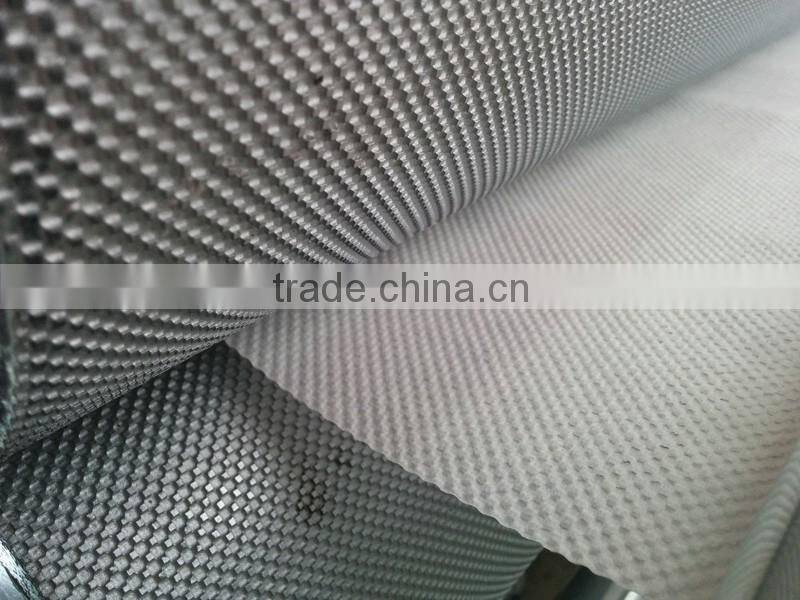

3. Steel to Steel Embossing Device
4. Edge Embossing roll assistance
5. Ink marking counting system
6. Product Output panel
7. Roots air blower
Customers should confirm the following informations:
1. What’s the folding size and opening size of the hand towel?
2. How many lines do you need? (output lines,1-7 lines for choice)
3. What’s the width of jumbo roll will you use?
4.Would you like to purchase this machine with packing machine together?
Video link: https://youtu.be/lmXWKORyMTc
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Packing Details : Packing, standard export wooden case
Delivery Details : 30-90 days after order
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer’s factory, the charge of visa, food ,transportations and accommodation in buyer’s city.
Our factory
Our certification
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery anufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
If you need more information about these machine,please feel free to contact me!
Welcome to contact us to get more details !
We can design the machine according to your request.
