Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > Semi Automatic Coreless Toilet Paper Making Machine Supplier's Choice
Semi Automatic Coreless Toilet Paper Making Machine Supplier's Choice
US$ 1 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Toilet Tissue
Processing Type:
Laminating Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Perforation Kitchen Towel Paper Making MachineUS$ 1 - 26,500MOQ: 1 Set -
High Performance Automatic C Fold Hand Towel Paper Making MachineUS$ 1 - 18,000MOQ: 1 Set
-
Automatic Lamination Hand Towel Paper MachineryUS$ 1 - 21,800MOQ: 1 Set
-
CE Certification Kitchen Towel Paper Gluing Laminating MachineUS$ 1 - 26,500MOQ: 1 Set
-
Toilet Paper & Kitchen Towel Making Machine Price Supplier's ChoiceUS$ 1 - 26,500MOQ: 1 Set
Condition
New
Product Type
Toilet Tissue
Processing Type
Laminating Machine
Place of Origin
Fujian, China
Brand Name
XINYUN
Model Number
XY-TQ-D
Voltage
380V 50HZ
Power(W)
4kw-10kw
Dimension(L*W*H)
6520x3500x1500mm
Weight
3.8T
Certification
CE
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

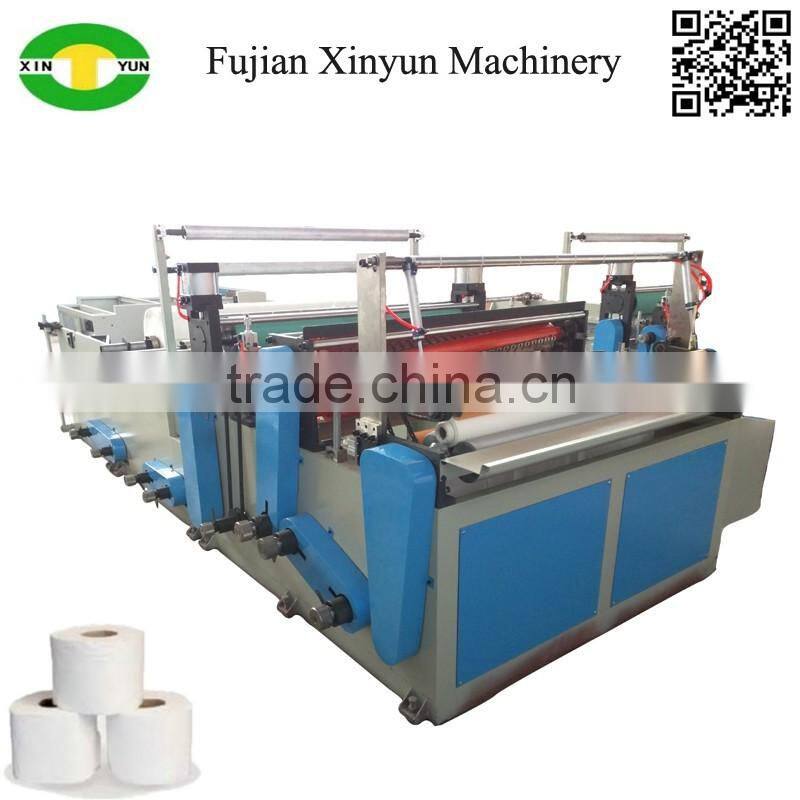

Semi automatic coreless toilet paper making machine XY-TQ-D
Product Application
XY-TQ-D Dot-by-dot rewinding and perforated gluing towel paper machine , this machine is to emboss on tow lays paper , glue ,combine , perforate ,rewind and cut into various kind of specifications of towel rolls according to the requested.
Glue on finished product which produced by this machine is equal, and the tension of rewind is uniformity. This machine has the feature of compact structure, steady production ,simple and convenient operation, less electricity consumption and covers a small area of 8.4 m² , The highest speed is 30-100M/min. This is the idea equipment for paper processing factory.
This equipment can process raw paper of 1.2m(1092 type) and 2.8m(2800 type) in width.

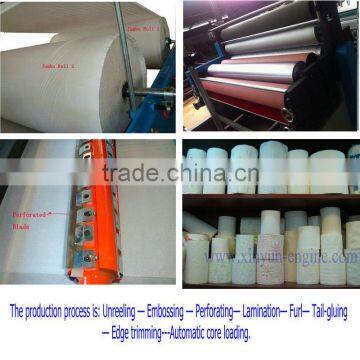

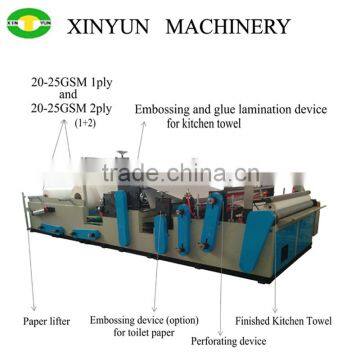

This machine is consist of stand of raw material, paper conveying unit, embossing unit, gluing unit ,perforating unit, rolling unit, electricity control and cutting system. The production process is : unreeling —→ embossing —→ gluing—→perforating —→ reeling—→cut.
Function and features:
1.Roll with tension to produce high and low level raw paper.
2.Adopting screw turning knife to cut, knife-blade is strong enough to operate fast without noise and shaking.
3. Glue equally
4.Electric controlled counter to ensure the weight of product.
5.The equipment can be have single color printing or two color printing according to customers’ requirement. (the price must be added, according to the client’s choice)
Main technical parameter:
1. Production speed: 65-100m/min
2. Power of equipment:4kw-10kw (380V 50Hz)
3. Maximum diameter of rewinding : 300mm
4. Overall size(mm): 6520x3500x1500(LxWxH)
5. Weight : About 3.8T
Specification of raw paper:
1.Width of raw paper:1200MM-2800MM
2.Diameter of raw paper:700mm-1000mm
3.Thickness of raw paper:35g/,m2-40g/ m2
4.Diameter of paper core:67mm
Video link: https://youtu.be/r77Gn3lgf1k
Detailed Images
Machine Parts

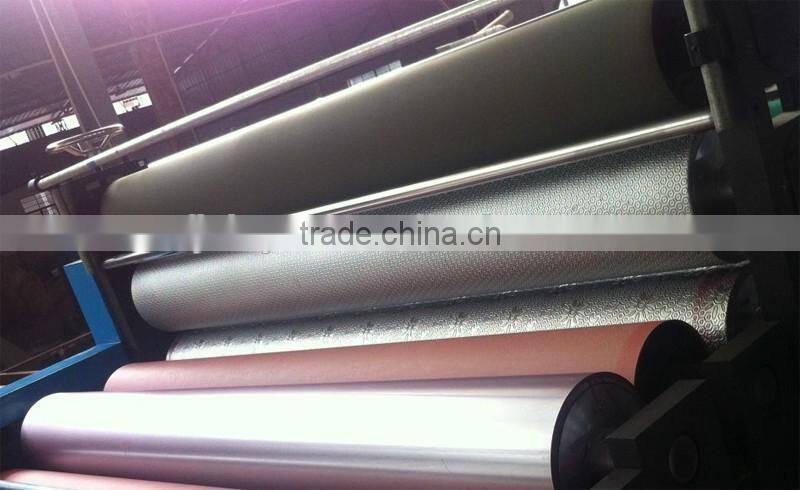

Name: Embossing and gluing lamination device
Brand: Xinyun
Original: China
Machine Parts
Name: Embossing and gluing lamination device
Brand: Xinyun
Original: China
Brand: Xinyun
Original: China
Related Products

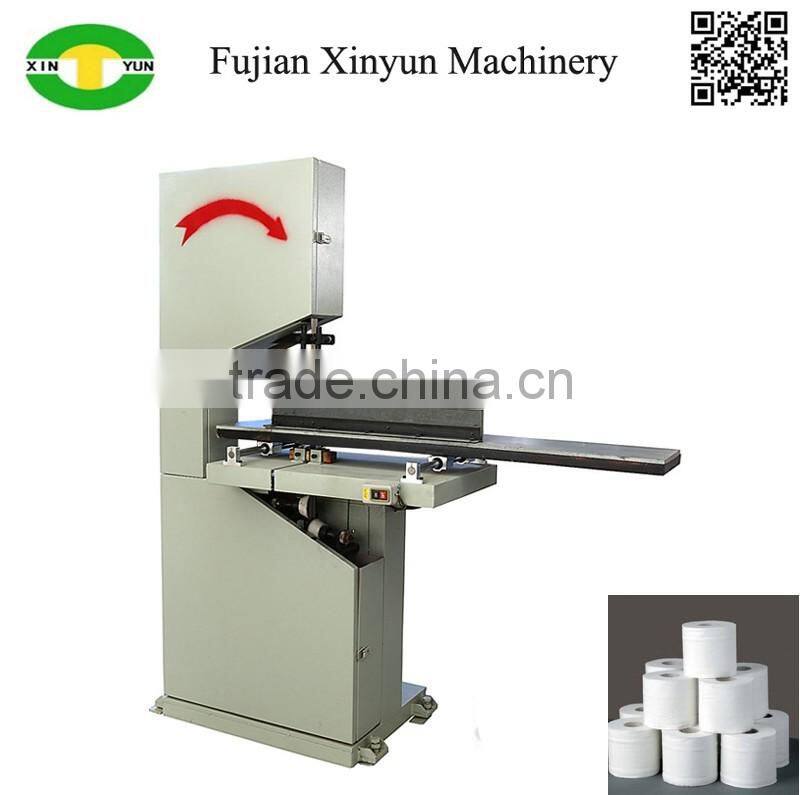

XY-AI-300 Semi automatic toilet paper band saw cutting machine
1. Power : 2.2KW (380V 50Hz)
2. Production speed : 30-60 rolls /min
3. Overall size (m ): 1.6x0.6x1.8 (LxW xH)
4. Weight: about 0.2 T
Video Link:
https://youtu.be/DXHZROa_7KU

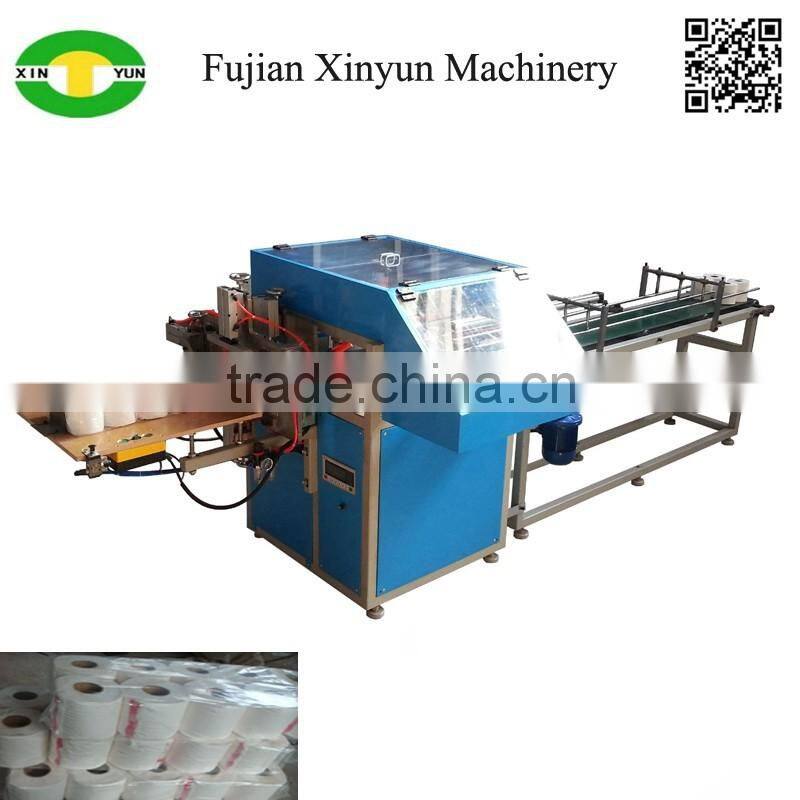

XY-AI-398A Semi automatic multu toilet paper packing machine
1. Speed: 5—8 bag/min
2. Power: 380V 50HZ
3. Power: 0.8KW
4. Pressure :0.4 -0.5MPA(Prepared by buyer)
5. Machine size: 5x1.2x1.2M
6. Weight: 400KG
Video Link: /watch?v=UU_9AgS_p0k
2. Power: 380V 50HZ
3. Power: 0.8KW
4. Pressure :0.4 -0.5MPA(Prepared by buyer)
5. Machine size: 5x1.2x1.2M
6. Weight: 400KG
Video Link: /watch?v=UU_9AgS_p0k
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Packing & Delivery
Our Service
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer’s factory, the charge of visa, food ,transportations and accommodation in buyer’s city.
Certifications
Company Information
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
If you need more information,please feel free contact me!
Welcome to contact us to get more details !
We can design the machine according to your request.
