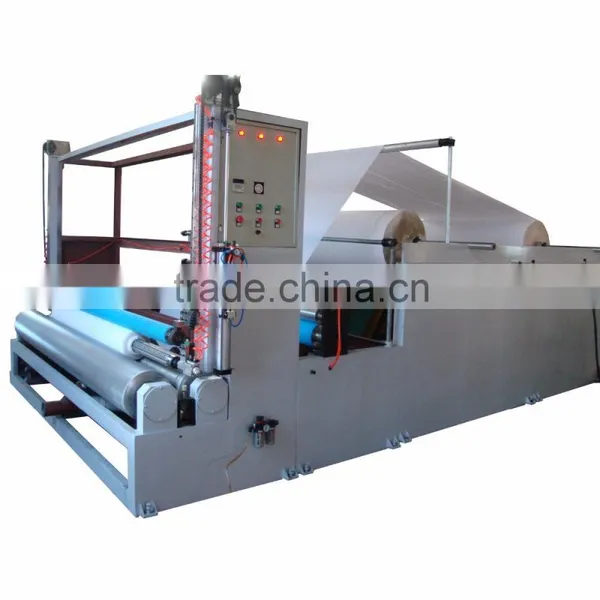

XY-XX-A High Speed Base Paper Cutting Machine
Function and features
XY-XX-A Full Automatic Cutting and Rewinding Machine mainly used to cut and rewind toilet paper, no-woven and dust-free paper. This equipment rewind and cut the paper to 2 layers, 3 layers or 4 layers other specification jumbo roll from single layer. Supply for folding tissue ,napkin , boxed tissue , toilet paper and so on. This equipment has the feature of tight structure, easy operation, stable operation, which is the ideal equipment to fund paper-making factory and paper processing factory.
Technical data:
Machine Model |
1092 |
1575 |
2000 |
2200 |
2400 |
2600 |
2800 |
Width of jumbo roll (mm) |
1200 |
1750 |
1950 |
2150 |
2350 |
2550 |
2750 |
Finished Products Diameter |
≤Φ1200 |
||||||
Finished product width |
Please point it out (As customer’s requests) |
||||||
Finished Products Inner Diameter |
Φ76.2 mm |
||||||
Jumbo roll diameter (mm) |
Φ1200 (Other sizes please point out) |
||||||
Jumbo Roll Inner Diameter |
Φ76.2 mm (other sizes please point out) |
||||||
Perforation distance (mm) |
4 blade,90~160mm; 2 blade,180~320mm; |
||||||
Production speed |
150-200 m/minute |
||||||
Unreeling stand |
1-3 layers(please point the number of layer) |
||||||
Pneumatic system |
3P Air compressor ,Min. pressure :5kg/cm2 Pa(prepare by customer) |
||||||
Power |
7.5-11KW |
||||||
Overall size (mm) |
6250x2650x1800~6250x4050x1800 |
||||||
