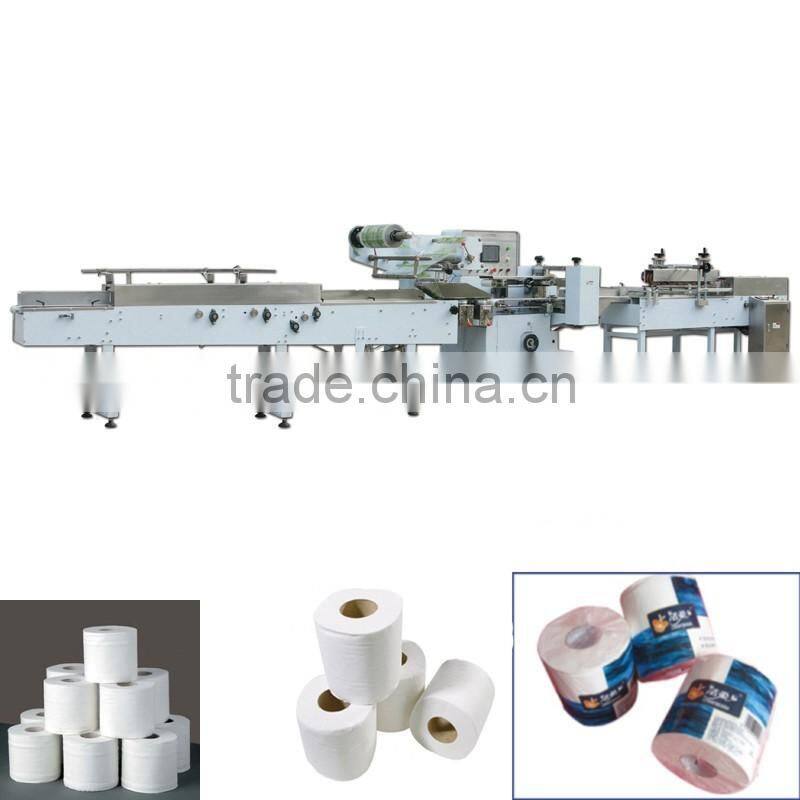

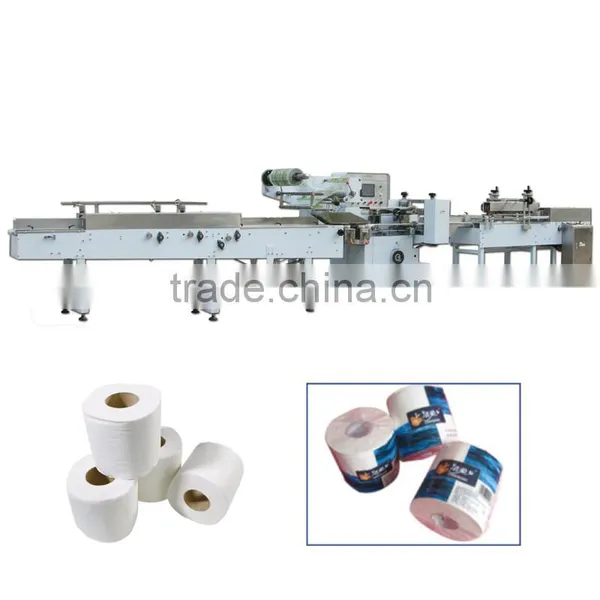

High Technology toilet Paper Packing Machine XY-503IZ
Main function and configuration:
Adopt MCU for master control circuit, display on LCD screen, control by the inverter, excellent person-computer interface, easy to pack. And the length of product adopt double frequency converter, stepless speed change, various range adjustment,, automatic clear up the packing product, and make it enter packaging machine. This machine can match with front-end production very well. The length of finished bag will be accurate tracked by high sensitivity sensor. It will not need to adjust by manual as soon as set. Individual control temperature for each sealing. It suitable for many kind of wrapping material.
Technical parameter:
Model |
XY-503IZ -A |
XY-503IZ-B |
Packing speed (pcs/min) |
50-130 |
50-130 |
Packing specification(mm) |
150-250x140x120 |
150-250x140x200 |
Overall dimension(mm) |
4432x1115x1750 |
4432x1115x1750 |
Weight (kg) |
950 |
980 |
Air compressor (Mpa) |
0.5 |
0.5 |
Total power |
3.3 (380v 50Hz) |
3.3 (380v 50Hz) |
Center distance (mm) |
192 |
270 |
Max.width of package film (mm) |
600 |
450 |
The noise of machin (Db) |
≤78 |
≤78 |
Sealing pressure(N/mm) |
15 |
15 |
Raw material of wrapping film |
PVC, POF,BOPP |
PVC, POF,BOPP |
Our Services
Why buy Machine from Fujian Xinyun Machinery Development Co., Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine, it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer’s factory, the charge of visa, food ,transportations and accommodation in buyer’s city.
Company Information
Fujian Xinyun Machinery Development Co., Ltd is good at Paper Converting Machinery Manufacture. Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
