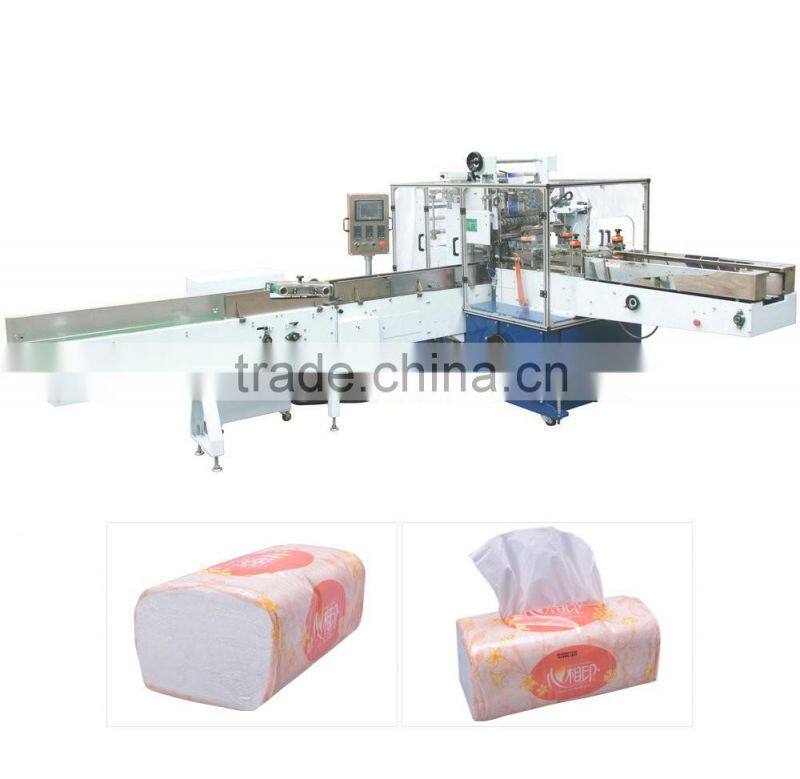

Low Price Soft Facial Tissue and Napkin Paper Packing Machine XY-BT-298
Main performance and structure features:
1. Adopt packing method by wrapping, hemming and sealing with compact structure and high product appeal.
2. Adopt the controlling system of step-less frequency conversion , touching screen and PLC, clear display and easy maintenance .
3. Adopt auto-putting conveyor, easy to be connected with automatic production line, saving laboring cost.
4. Stepless-speed regulation with double transducer, automatically adjusting packing film length.
5. High autoimmunization, high specialization, high efficiency and but less trouble.
6. Different sizes can be handled easily thanks to a fast and simple changeover facility.
Model & Main technical parameters:
Model |
XY-298A |
XY-298B |
XY-298C |
Outline Dimension (mm) |
3560*5885*1925 |
3560*5885*1925 |
3560*5885*2050 |
Speed (bags / min) |
35-50 |
45-75 |
35-50 |
|
Packing size (mm) After folding size |
100-230*100-150*40-100 |
100-230*100-150*40-100 |
100-230*100-200*40-100 |
Machine's Weight (KG) |
3000 |
3800 |
3800 |
Motor Consumption (KW) |
3.66 |
3.66 |
3.66 |
Heating Consumption (KW) |
3.6 |
3.6 |
3.6 |
Power |
380V 50Hz |
380V 50Hz |
380V 50Hz |
Power Consumption (KW) |
7.26 |
7.26 |
7.26 |
Packing film |
CPP,PE,OPP/CPP,PT/PE and other film sealed on both sides |
||
Our Services
Why buy Machine from Fujian Xinyun Machinery Development Co., Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine, it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer’s factory, the charge of visa, food ,transportations and accommodation in buyer’s city.
Company Information
Fujian Xinyun Machinery Development Co., Ltd is good at Paper Converting Machinery Manufacture. Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
