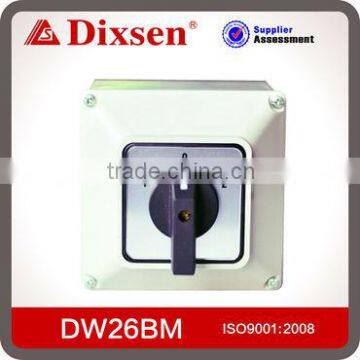

Help CenterDW26BM CAM Switch With Plastic Enclosure (IP65)
Related Products
-
Waterproof Cam Selector SwitchUS$ 1.6 - 24.6MOQ: 20 Pieces -
Red Led Kcd11 Rocker SwitchUS$ 0.1 - 1MOQ: 1000 Pieces
-
DW26SQ Series Plastic Enclosure Pad Lock Change-over SwitchUS$ 5 - 1,000MOQ: 120 Packs
-
Attachable Auxiliary Contacts ModuleUS$ 1.5 - 3MOQ: 50 Packs
-
DW26 Rotary Switch 10aUS$ 1.6 - 24.6MOQ: 50 Pieces
Specifications
1. ISO9001 and ISO14001 approval.2. CE passed.
3. Professional manufacturer.
4. IP65 protective grade.
IP65 Enclosure for Cam Switch ( Maintenance Switch )
The maintenance switches an enclosed main switch with emergency-off function for an individual electrical load circuit or motors, connecting kinds of electric loads. The switches, which have high strength durable plastic enclosures, are intended for surface mounting or attachment to machines. The enclosure is equipped with entry knockouts and designed with extra space for easy wiring. The enclosures are suitable for applications in an aggressive environment, such as oil, chemical substances and grease, etc. Owing to the installation closed to the motor or the load circuit, each operator can protect himself against unintentional and uncontrolled switching-on of the machine or installation by fixing his padlocks (3 max.) For a correct type selection it is important to determine a type according to the switching capacity, cable cross section, size of enclosure and knockouts are essential factors for the selection of the suitable switch.
We have 2 different construction sizes for the purpose, and capacity of ratings are 20A, 25A, 32A, 63A. Also, can be matched with Emergency-off switch, to be used as Maintenance switch.
Type |
Rated Thermal Current |
No. of Poles |
PCS./CTN. |
BIGGER SIZE ENCLOSURE | |||
DW26BM-20/1 |
20A |
1 |
30 |
DW26BM-20/2 |
2 |
30 |
|
DW26BM-20/3 |
3 |
30 |
|
DW26BM-20/4 |
4 |
30 |
|
DW26BM-20/5 |
5 |
30 |
|
DW26BM-25/1 |
25A |
1 |
30 |
DW26BM-25/2 |
2 |
30 |
|
DW26BM-25/3 |
3 |
30 |
|
DW26BM-25/4 |
4 |
30 |
|
DW26BM-25/5 |
5 |
30 |
|
DW26BM-32/1 |
32A |
1 |
30 |
DW26BM-32/2 |
2 |
30 |
|
DW26BM-32/3 |
3 |
30 |
|
DW26BM-32/4 |
4 |
30 |
|
DW26BM-32/5 |
5 |
30 |
|
DW26BM-32F/1 |
32A |
1 |
30 |
DW26BM-32F/2 |
2 |
30 |
|
DW26BM-32F/3 |
3 |
30 |
|
DW26BM-32F/4 |
4 |
30 |
|
DW26BM-32F/5 |
5 |
30 |
|
DW26BM-63/1 |
63A |
1 |
30 |
DW26BM-63/2 |
2 |
30 |
|
DW26BM-63/3 |
3 |
30 |
|
DW26BM-63/4 |
4 |
30 |
|
DW26BM-63/5 |
5 |
30 |
|
SMALLER SIZE ENCLOSURE | |||
DW26SM-20/1 |
20A |
1 |
76 |
DW26SM-20/2 |
2 |
76 |
|
DW26SM-20/3 |
3 |
76 |
|
DW26SM-25/1 |
25A |
1 |
76 |
DW26SM-25/2 |
2 |
76 |
|
DW26SM-25/3 |
3 |
76 |
|
Feature: CAM Switch with Plastic enclosure (IP65) can be used as Maintenance Switch.
Keywords: Maintenance Switch, cam switch with box.
2. Packing show
3. Company show
4. Production series
....
