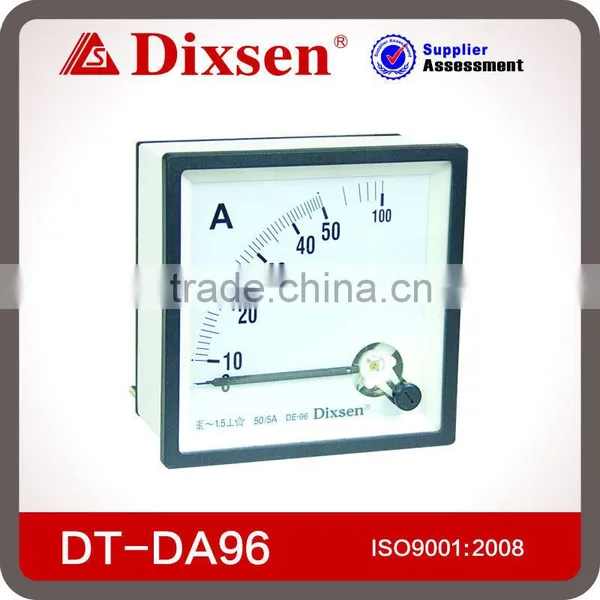

Direct AC Ammeter 96X96 DE-96 10A DT-DA96

Specifications

Moving Iron Instrument AC Ammeter
Direct Input AC Ammeter
Model: DT-DA96,72,48
CT Operated AC Ammeter
Model:DT-A96,72,48

1. Product Name: Direct Input AC Ammeter, Direct AC Ammeter



2. Model: DT-DA96,DT-DA72,DT-DA48



3. Accuracy: Class 1.5.



4. Specification: 0.1A 0.5A 1A 7.5A 10A 15A 20A 25A 30A 40A 50A 60A 75A 100A . For 5A-10KA use external current transformer with secondary current 5A and 1A.

Notes: For 60A, 75A, 100A meters, when these meters directly connected to circuit, their accuracy is class 2.5. For 20A-60A direct reading ZZ-48 meters, the accuracy is class 2.5.



5. Heat resistance: Case of non-combustible plastic Material.



6. Changeable scale: All scales with printing technique. The dial plate with different scale, which is at the same division and internal value, can be changeable. But the accuracy is unchangeable.



7. Fastening: By means of nuts, absolutely safe, fast, robust, side-by-side.
Mounting depth: Max. 43mm.
