200A Brushless Water Cooling Electric Speed Controller ESC with 5V/5A SBEC for RC Boat Model
200A Brushless Water Cooling Electric Speed Controller ESC with 5V/5A SBEC for RC Boat Model
These series of water cooling ESC designed for RC boat. They are not only offer excellent performance they are also built with the highest quality components to ensure true-to-rating current handling and high efficiency operation.
Phrases 1 Enter programming Mode:
1.Connect your motor and receiver to the speed controller, but do not connect the battery yet.
2.turn on your transmitter and move the throttle stick to the full throttle position (full up).please note: most futaba transmitter have the throttle channel reversed by default.
3.Connect you battery and controller will initialize with a musical tone.
Phrases 2 programming:
After 3 seconds, the controller will start beeping a sequence of tones a musical tone followed by one or more beeps. Each sequence represents a parameter that you can program and is repeats 3 times.
The parameters are:
Music tone + 1 beep: Optionas 1. Cell type and No. of Cells;
Music tone + 2 beep: Optionas 1. Throttle setting;
Music tone + 3 beep: Optionas 1. Brake setting/Throttletype(for Heli);
Music tone + 4 beep: Optionas 1. Direction and Cutoff Type;
Music tone + 5 beep: Optionas 1. Timing mode;
User programming options:
Cell Type: NiMH/NiCD/Lipoly/Li-ion
Cell Count: 2S-7S/6-20NIMH
Throttle Setting: Auto/Soft/Hard
Brake: No Brake/Soft/Medium/Hard
Direction: Clockwise/Counter Clockwise
Cut off: Soft/Hard
Timing: 1o/7o/15o/30o
PWM: 8Khz/16khz
Features:
200A Brushless ESC with 5V/5A SBEC
Water cooling.
Waterproof design(Need to use 704 silicone rubber by yourself).
This super simple boat series comes with a limited range of programming functions and are designed to be plug-n-play.
A perfect ESC for those looking for something simple to use and economic.
Specifications:
Cont current: 200A
Burst current: 230A
BEC model: Switch
BEC output: 5V/5A
Recommend battery: Li-ion/Lipoly 2-7S;Ni-MH/Ni-Cd 6-20NIMH
Cooling: Watercooled
ESC weight: 124g
ESC size: 92mm * 40mm * 22mm
Package information:
Package size: 11 * 5 * 2.5cm / 4.1 * 2 * 1in
Package weight: 128g / 4.5oz
Plastic bag
Package list:
1 * 200A Brushless Water Cooling Electric Speed Controller ESC

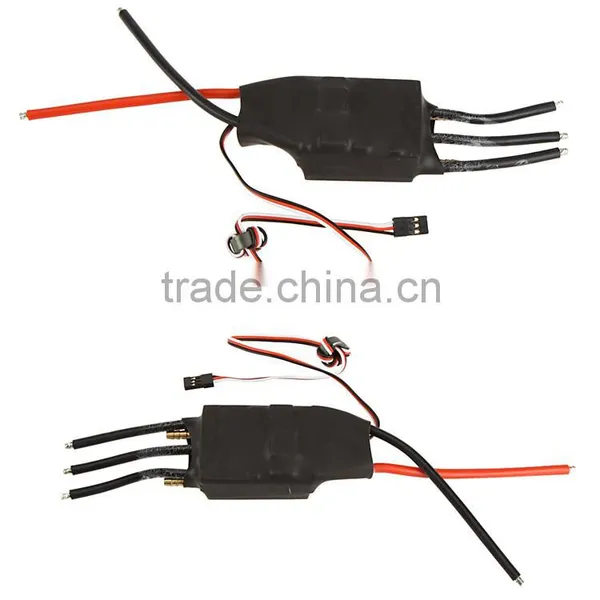

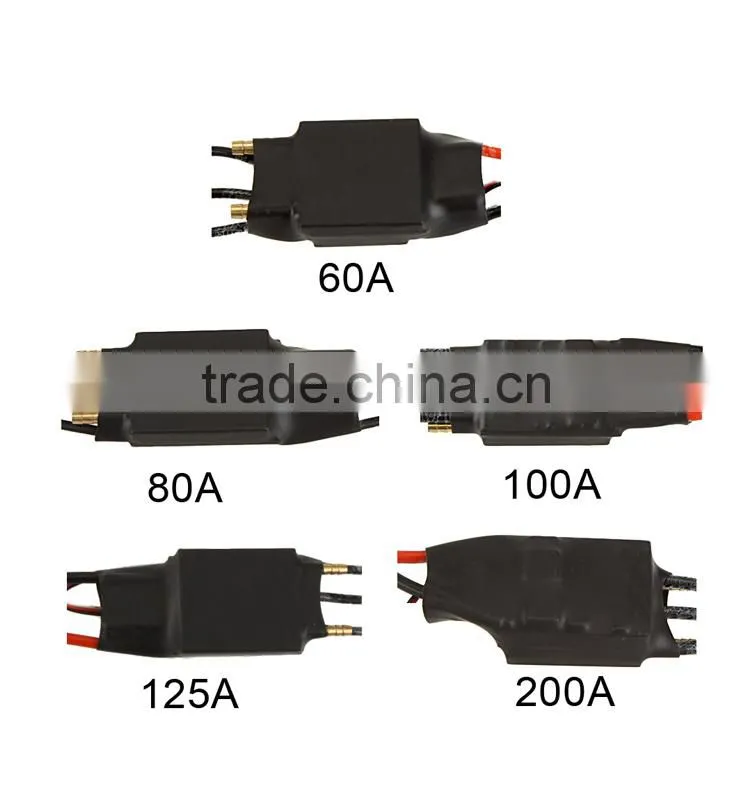

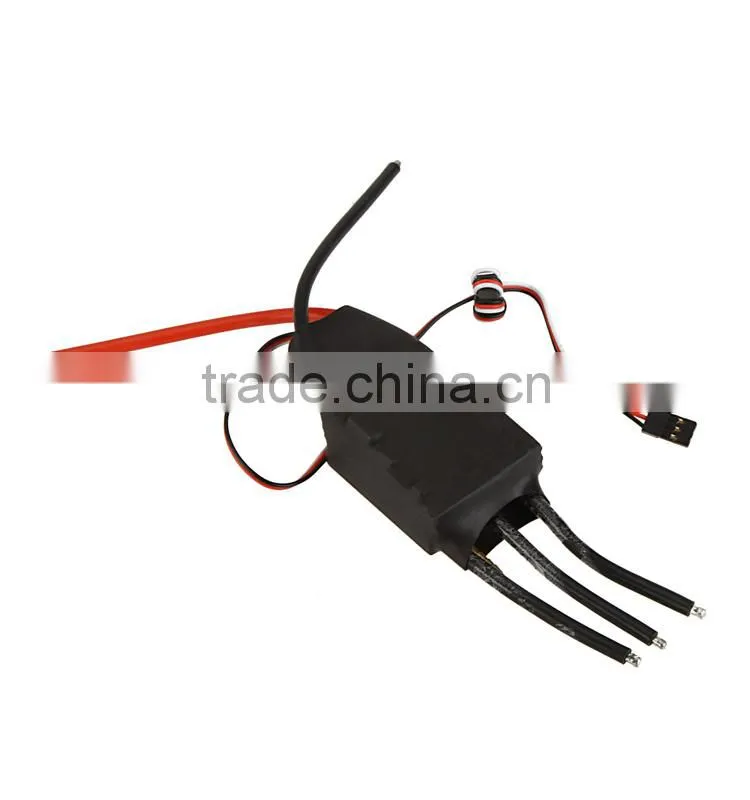

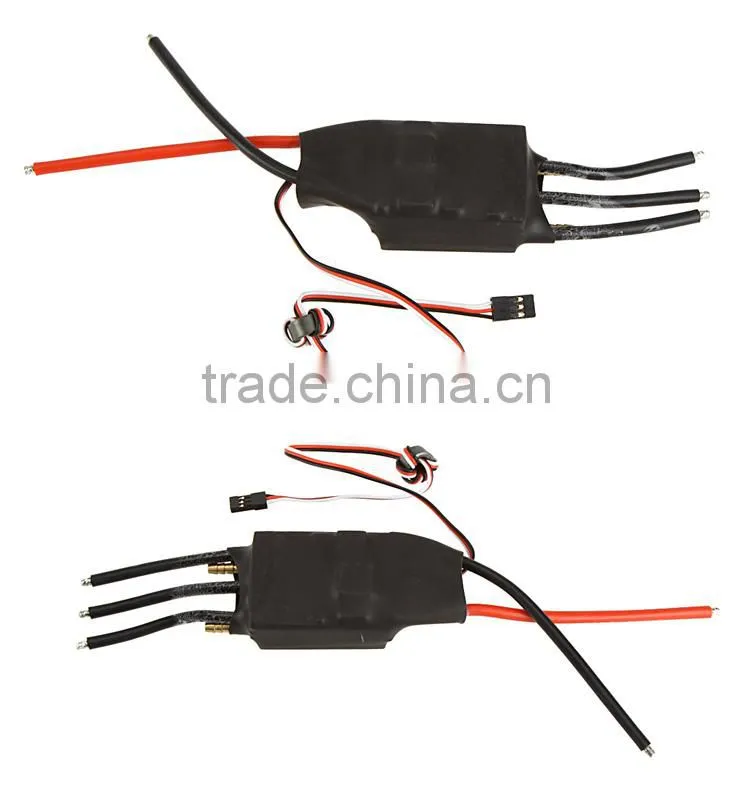

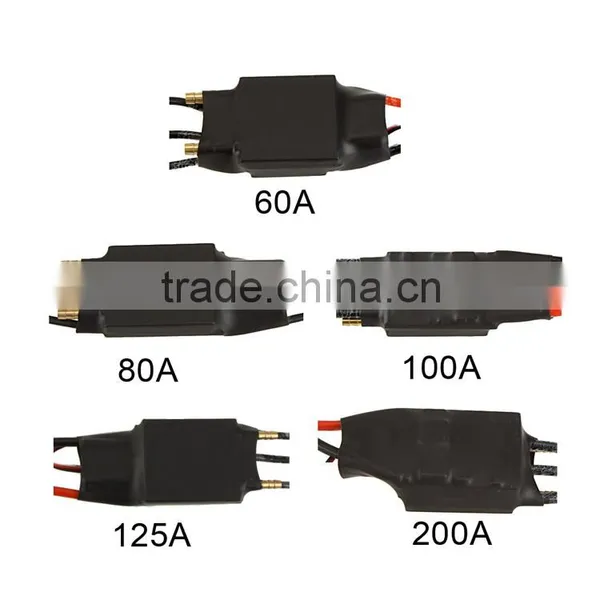

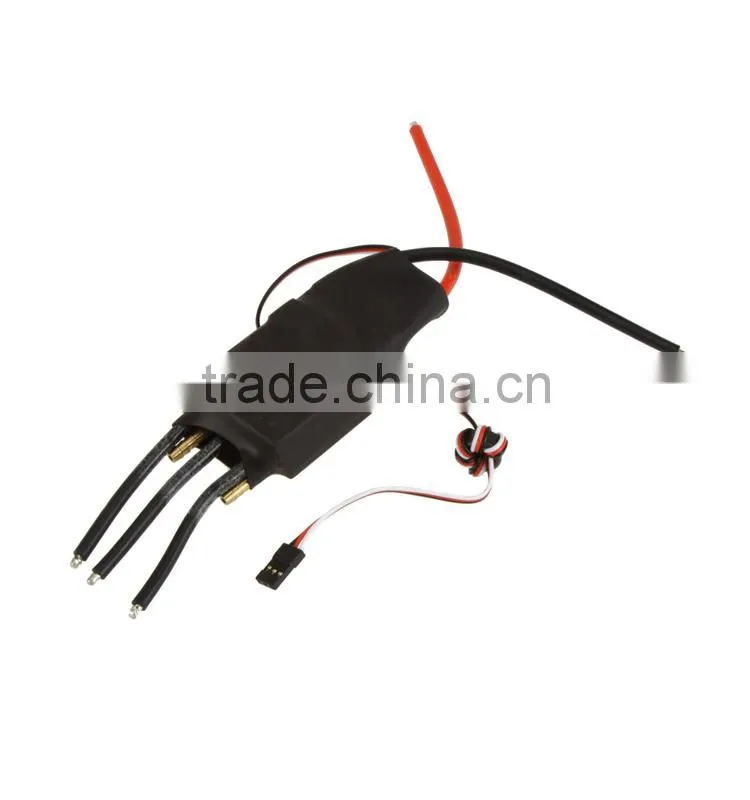

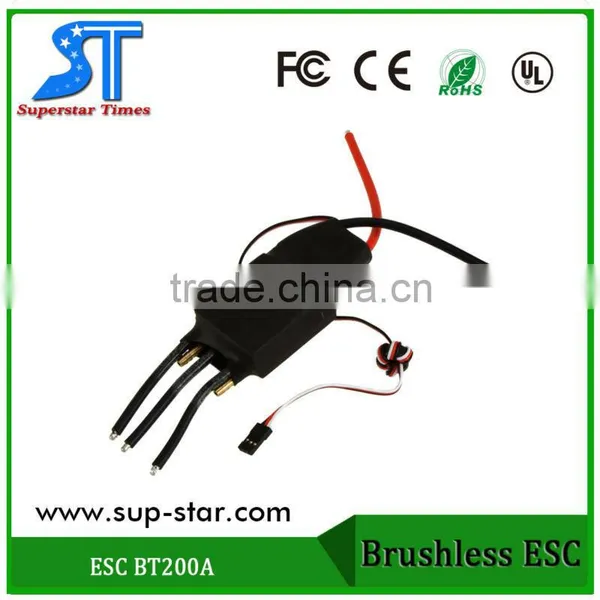

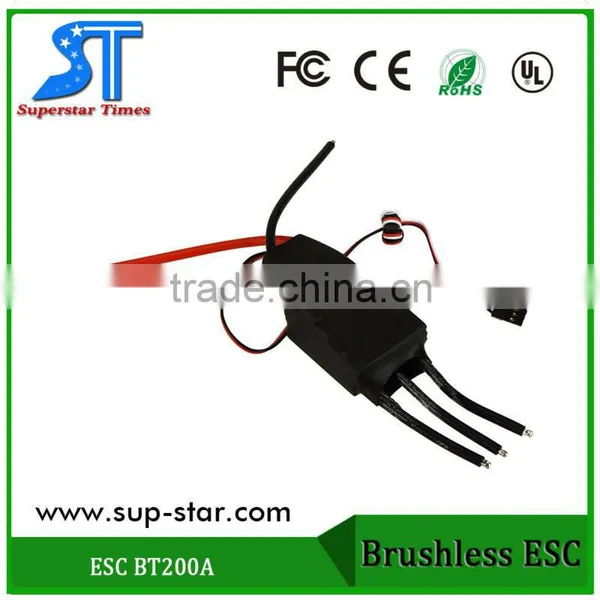

Detailed Images:
