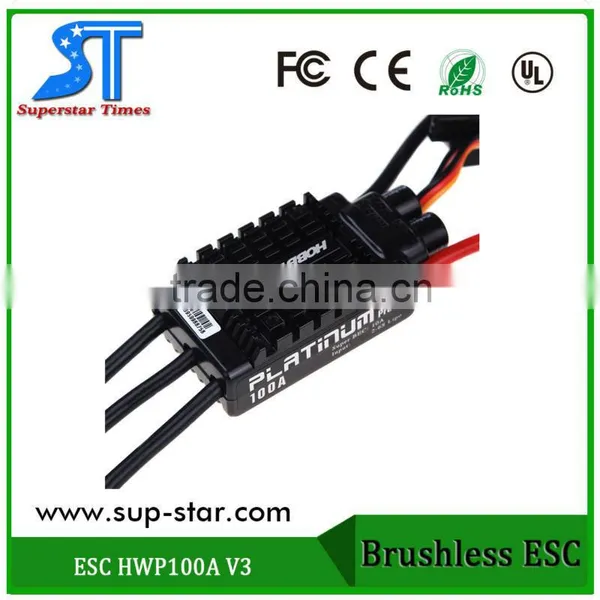

Original Hobbywing Platinum 100A V3 High Performance ESC for Align TREX 550 600 700 Helicopter Fixed Wing ESC
Original Hobbywing Platinum 100A V3 High Performance ESC for Align TREX 550 600 700 Helicopter Fixed Wing ESC
Features:
High-performance microprocessor with the operating frequency up to 50MHz brings excellent compatibility (with most motors in the market) and high driving efficiency.
The maximum motor speed can reach 210000 RPM (for 2-poles), 70000 RPM (for 6-poles) and 35000 RPM (for 12-poles).
Multiple flight modes: Fixed Wing Airplane/ Heli with Governor Off/ Heli with Governor (Elf) / Heli with Governor Store.
Adjustable throttle range, compatible with various transmitters. It brings smooth, soft & linear speed adjustment and rapid throttle response.
Microprocessor powered by independent DC regulator has better anti-interference performance, which greatly reduces the risk of losing control.
Built-in high-efficient & high-power (switch mode) BEC can make the output voltage switched among 5.2V / 6.0V / 7.4V / 8.4V. (*For the specific output voltage, please refer to the parameter list below.)
Brand new governor program, easy to operate; and its excellent speed-governing effect can make big rotor blades more stable even under rapid load change.
"Restart in auto rotation" can manually interrupt the auto rotation and quickly restart the motor to avoid crashes caused by incorrect operations.
Independent output port for RPM (that is: motor speed) signals.
Compatible LCD program box (*optional accessory), its simple and visual interface allows users to set/revise all the ESC parameters easily. (For detailed information, please refer to User Manual of LCD Program Box.)
Upgradeable firmware, you can upgrade the ESC after connected it to a PC via the USB cable on the program box.
The independent port, for connecting the program box and setting parameters, can also be the output port of the running status data of the ESC. When coordinating with the data transmission module, it can make the real-time data monitoring and logging possible.
Multiple protection features including input voltage abnormality protection/ low-voltage cutoff protection/ throttle signal loss protection effectively prolong the service life of the ESC.
Specifications:
Model: Platinum-100A-V3
Main Application: 480-550 class (helis)
Battery Count: 2-6S Lipo, 5.2V-25.2V
Cont./Burst Current: 100A/150A (burst in 10 sec)
BEC Output: Switch Mode BEC, 6.0V/7.4V/8.4V; Cont.: 10A, Burst: 25A
BEC has the cut-through protection (which means the battery voltage won’t get through to the receiver if the BEC is accidentally damaged)
Input/Output Wire: Input: 12AWG / Output:12AWG
Weight/Size: 104g / 70* 35 *21mm(W/O fan), 110g/ 70* 35* 32mm(w/ fan)
Package size: 13 * 9 * 5cm / 5.2 * 3.6 * 2.0 in
Package weight: 209g / 7.4 oz
Package list:

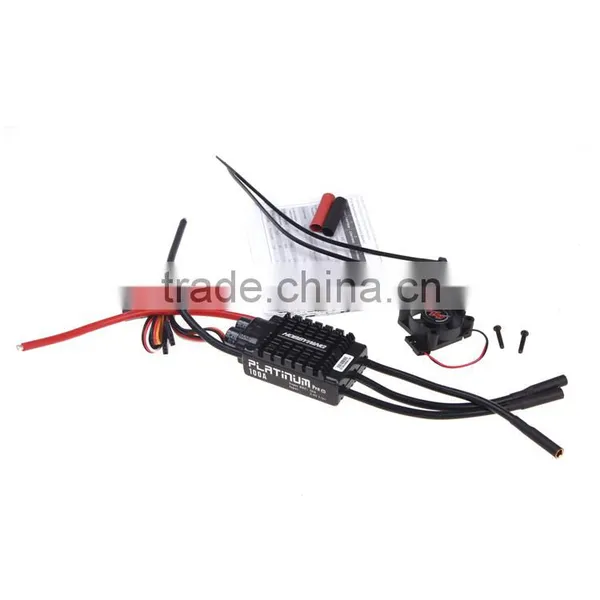

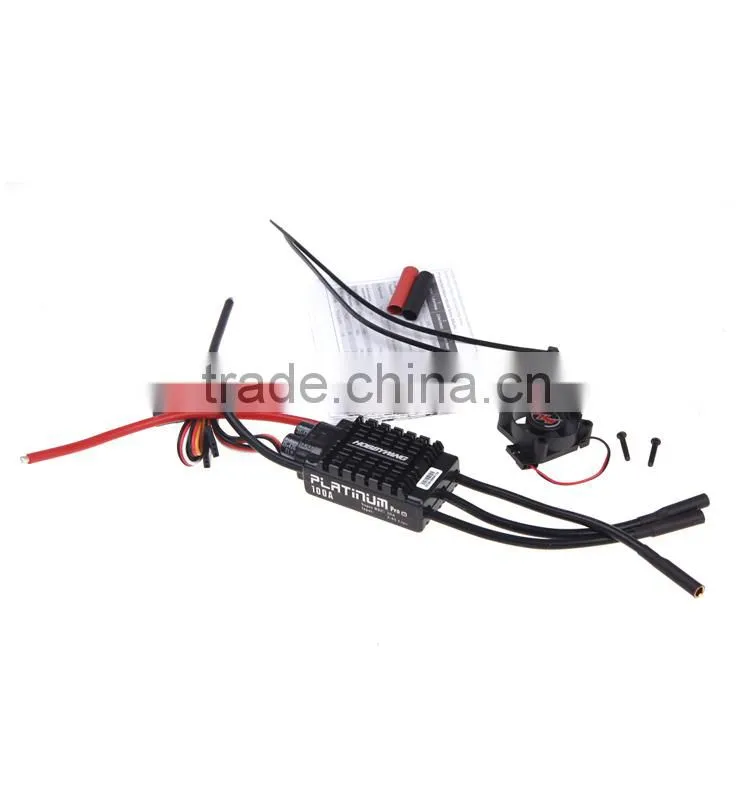

1 * Original Hobbywing Platinum 100A V3 High Performance ESC

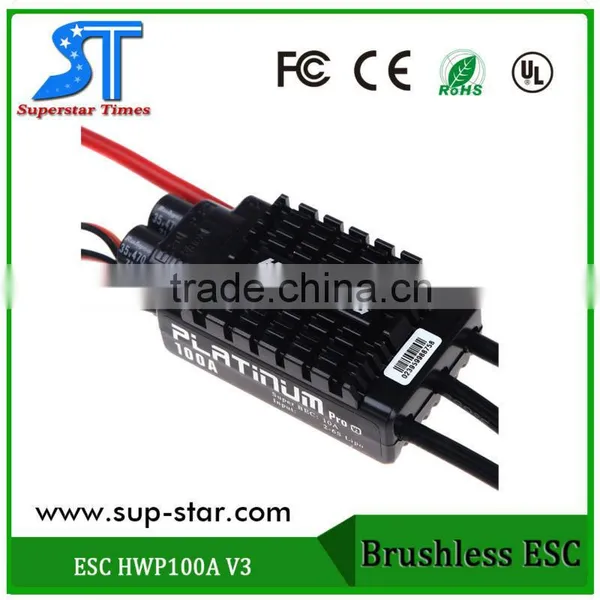

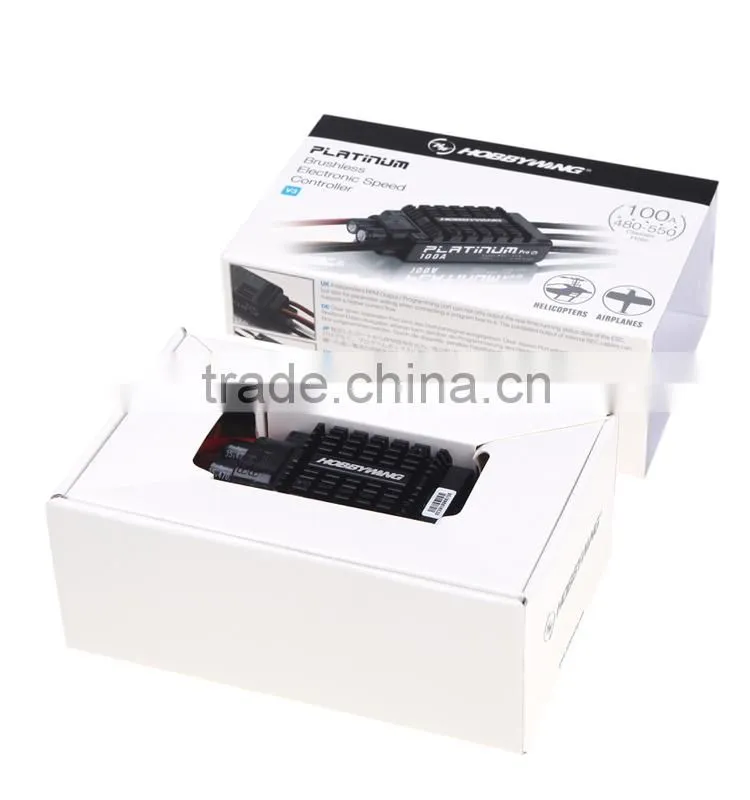

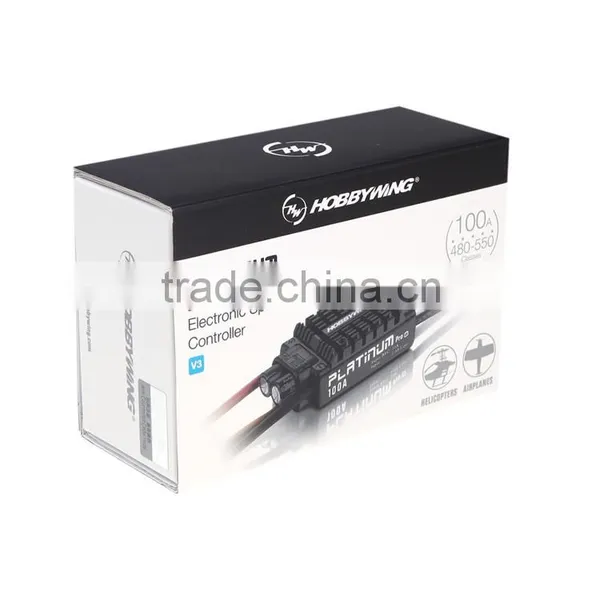

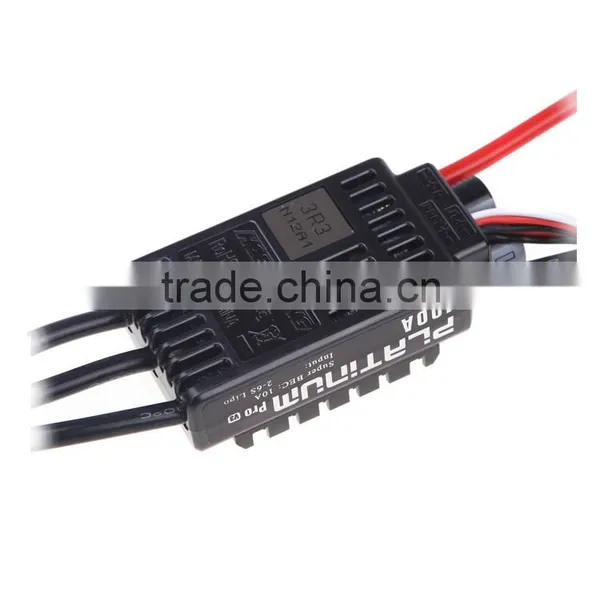

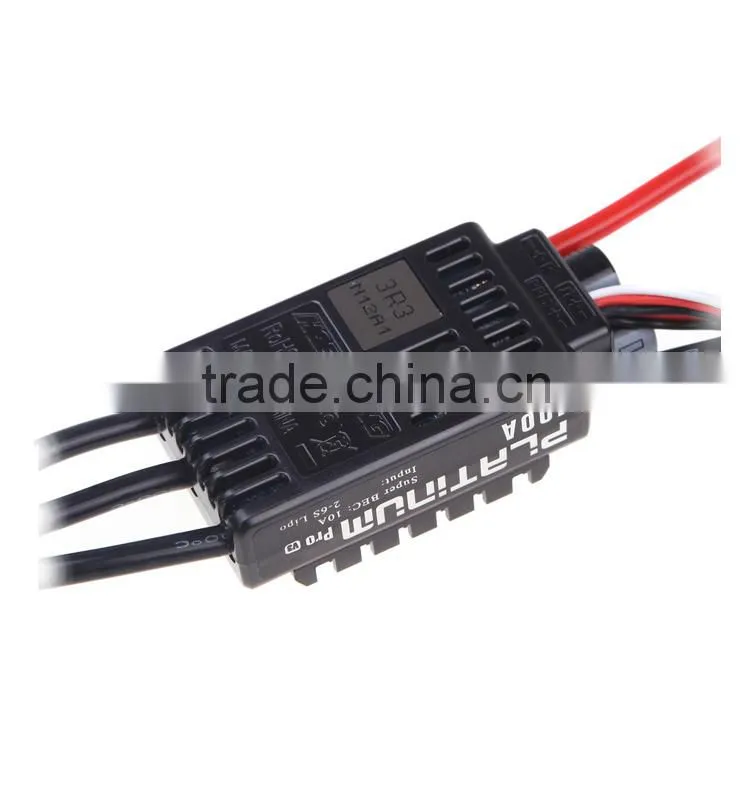

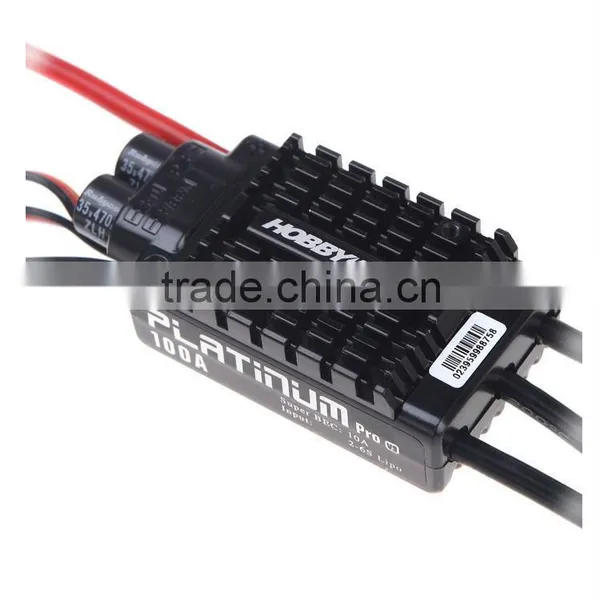

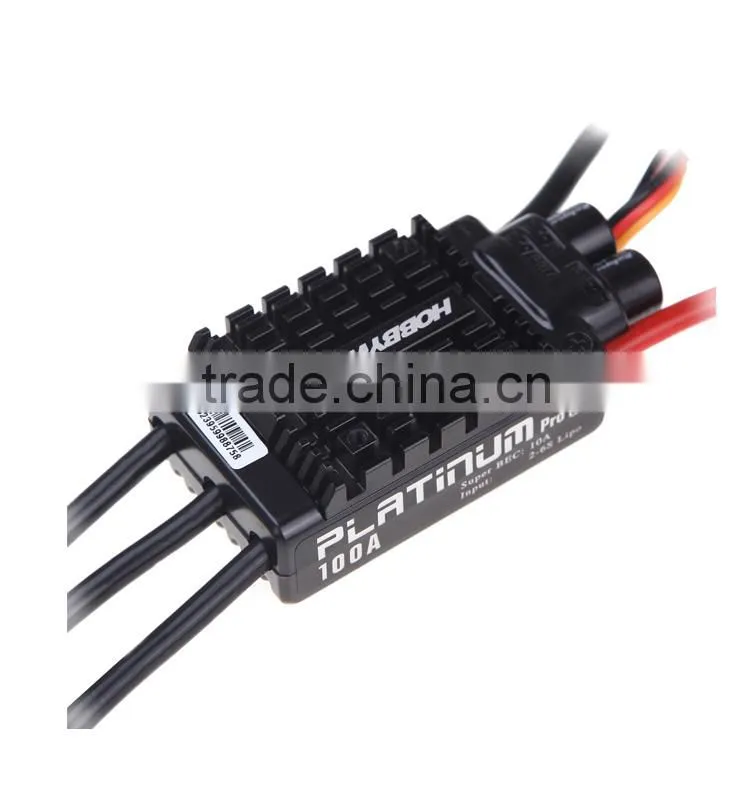

Detailed Images:
Shenzhen Superstar Times Technology Co.,Ltd. was established in 2008, is a modern high-tech enterprise which devotes in the field of high-performance polymer lithium batteries and battery R&D, production and sales. Our headquarters is located in Dongguan which known as the world's factory. With nearly 400 workers, a area of 20,000 square meters, brings together industry-leading technology and management elite team, the introduction of more than 50 sets of automated production equipment, with 18 finished assembly cable. We are mainly engaged in model aircaft battery, car jump starter, R/C battery charger, steering gear, electric, and other peripheral product's research and innovation and production.
Wild Scorpion and Devil brands won highly praised by our clients from all over the world. We can provide from a single piece of batteries 180mAh - 16000mAh, 10C-70C dozens of flexible matching power batteries. Our products are widely applied in remote control helicopters, boats, cars, robots, electric tools and other many fields. We can offer global manufacturers and application of electric enterprise the best OEM/ODM service. Welcome to visit us freely.
Q1: Can I have some samples for testing quality?
A1: Yes, you can buy some samples of any our products for testing quality and market.
Q2: How should I pay?
A2: You can pay via T/T,L/C at sight, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.
Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.
