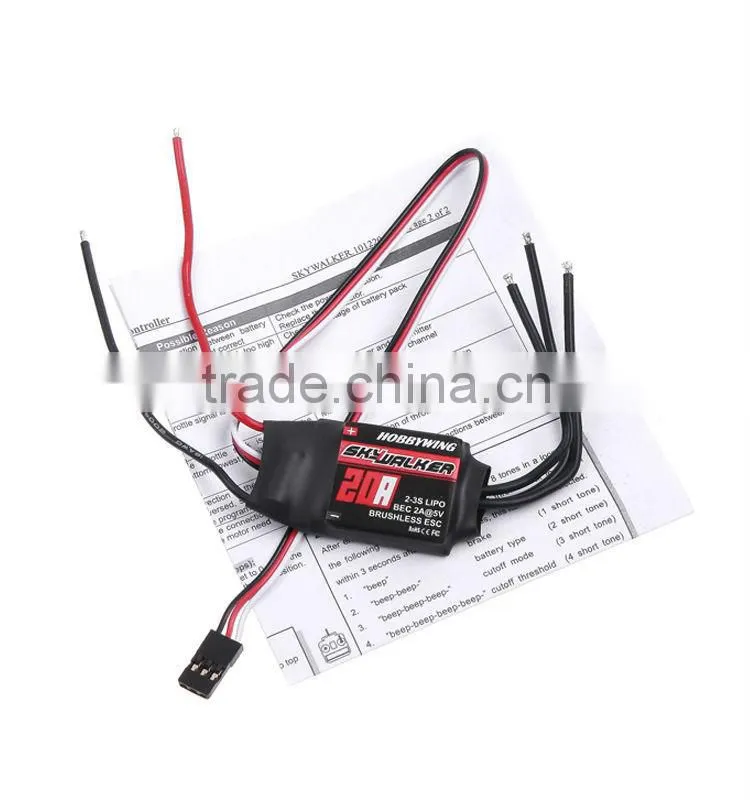

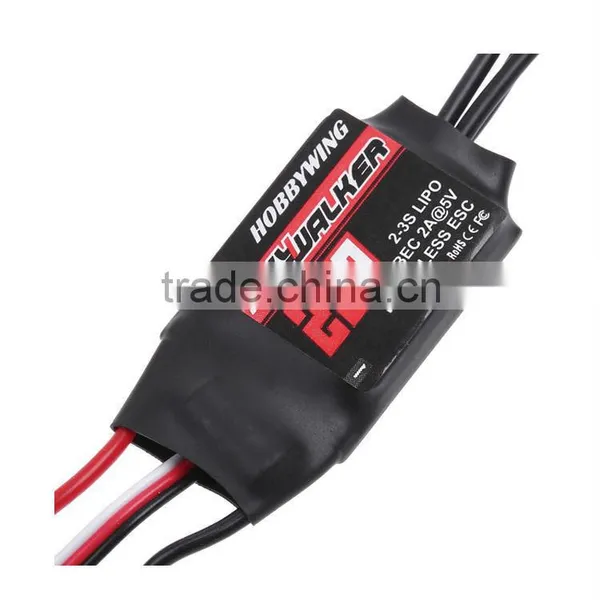

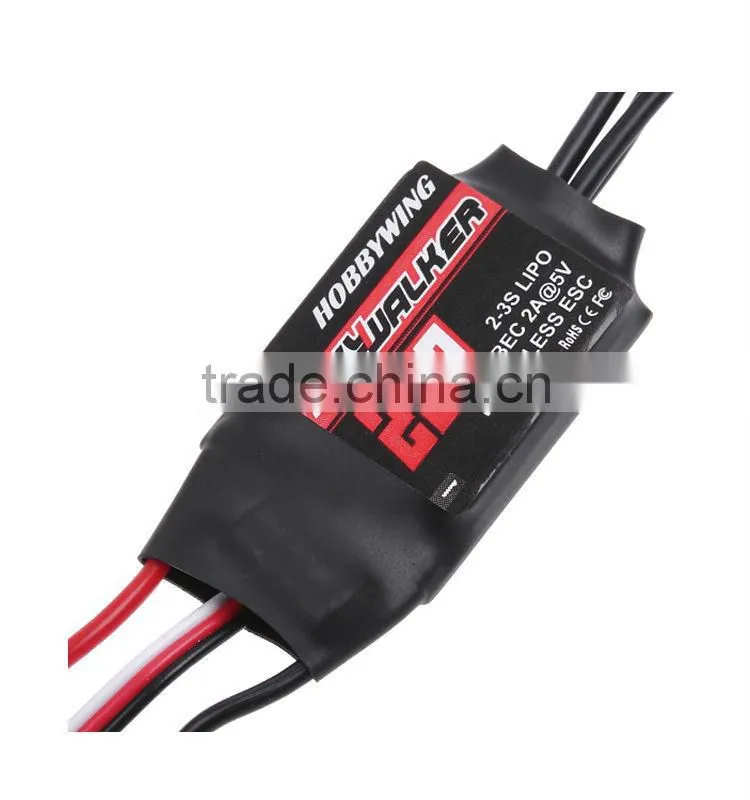

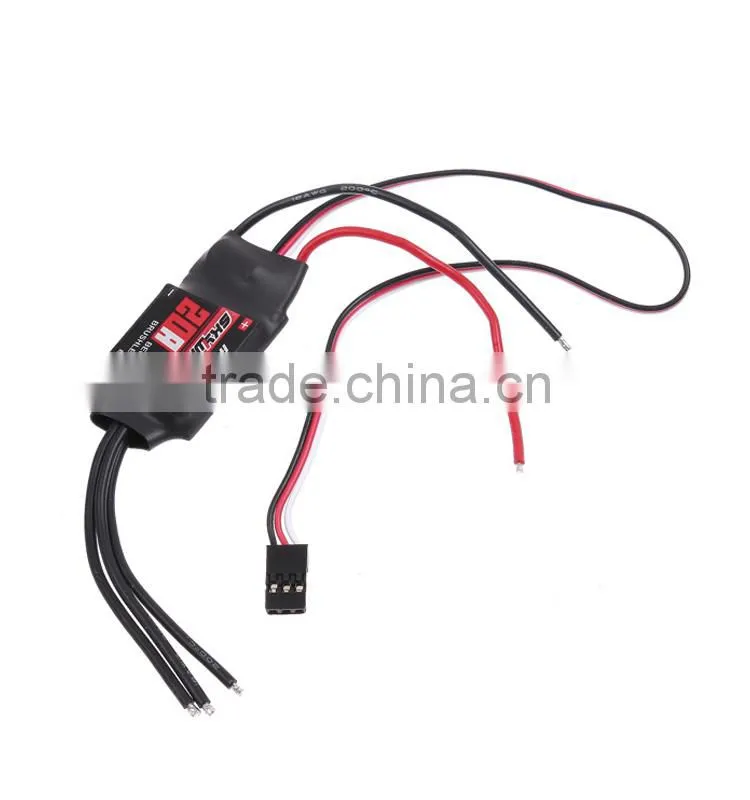

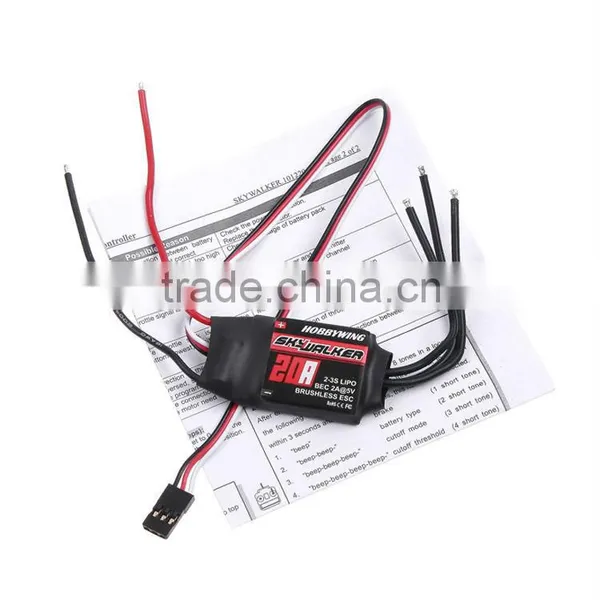

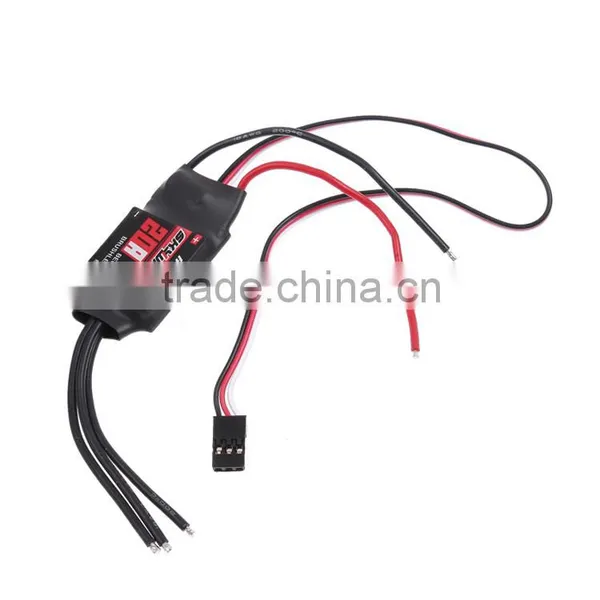

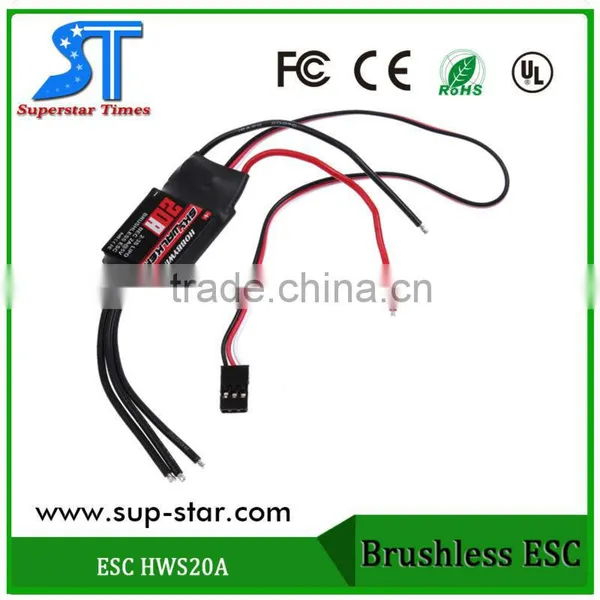

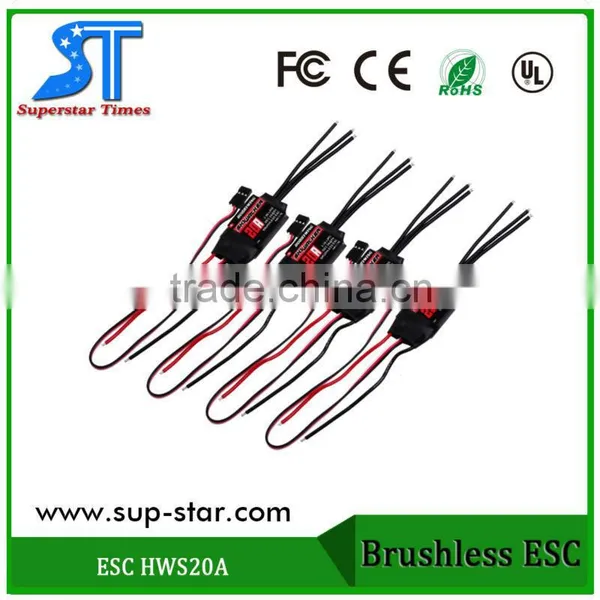

Hobbywing Skywalker 20A Electronic Brushless Motor Speed Controller ESC For Quadcopter

Hobbywing Skywalker 20A Electronic Brushless Motor Speed Controller ESC

Hobbywing Skywalker 20A Electronic Brushless Motor Speed Controller ESC

Features:
Use top quality components to get strong current endurance.
Low voltage cut-off protection / Over voltage protection / over-heat protection / throttle signal loss protection.
3 start modes: Normal / Soft /Super-Soft, compatible with fixed-wing aircraft and helicopter.
Throttle range can be configured to be compatible with all transmitters.
Smooth, linear and precise throttle response.
Maximum motor speed: 210000 PRM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).

Specifications:
Model: Skywalker-20A
Continuous Current: 20A
Burst Current (>10s): 25A
BEC Mode: Linear
BEC Output: 5V / 2A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
Item size (L * W * H): 4.8 * 2.6 * 0.8cm
Item Weight: 20g
Cable length: 25cm
Package size: 12.5 * 11 * 2.5cm
Package weight: 115g

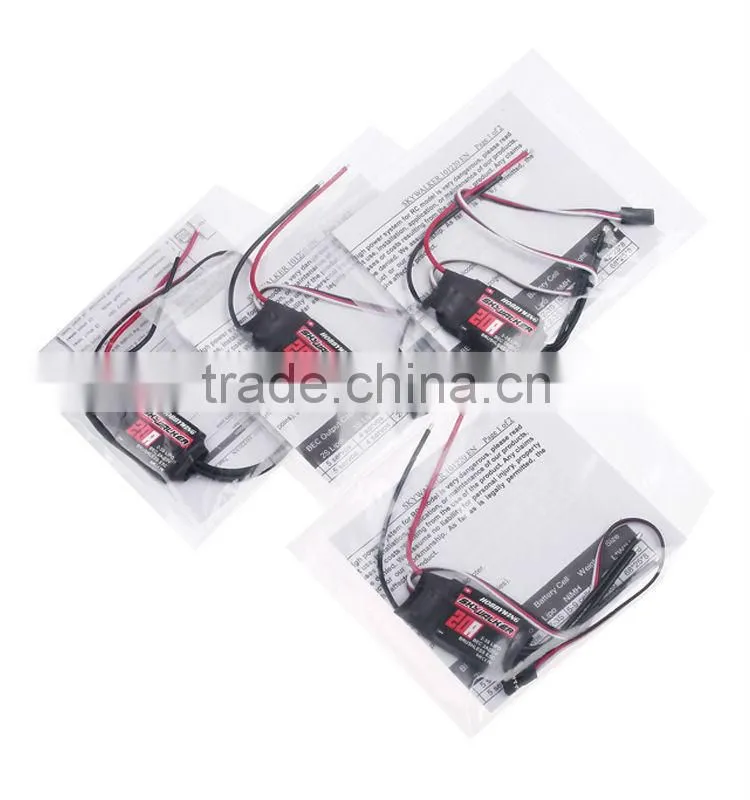

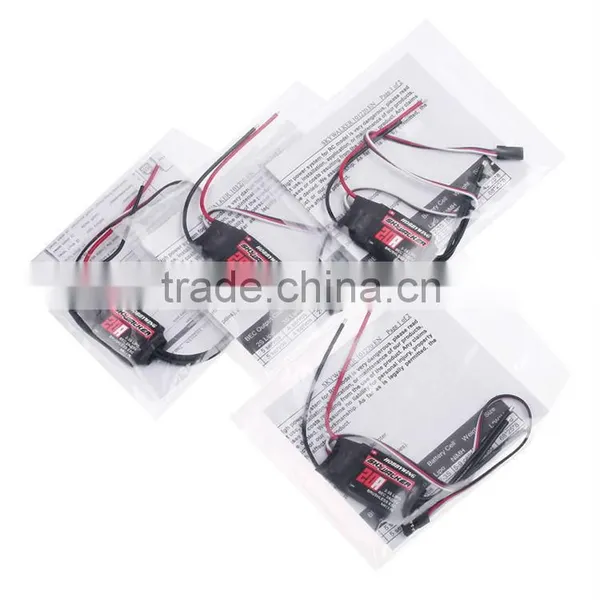

Package including:
1* Brushless Motor Speed Controller + User Manual

Detailed Images:
