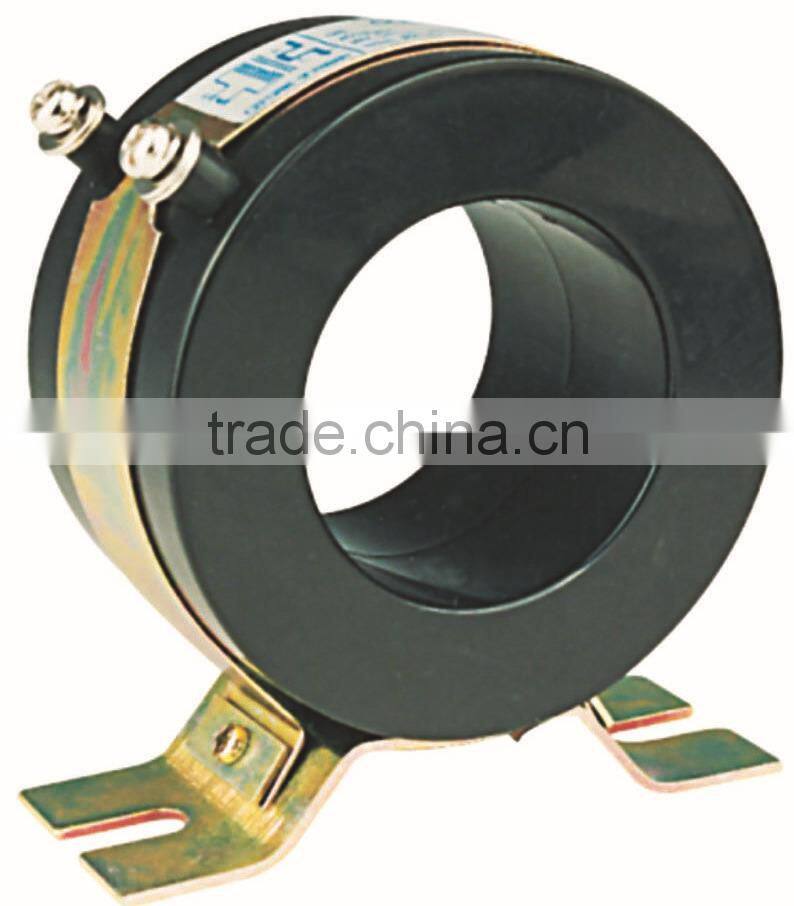

Low voltage high accuracy class rct current transformer
- 100000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T Credit Card
Product Details

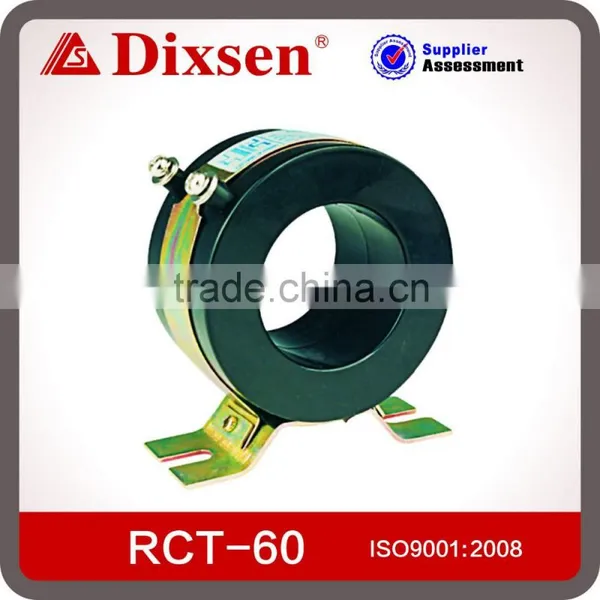

Place of Origin: | Zhejiang, China | Brand Name: | Dixsen | Model Number: | RCT-60 |
Usage: | Current | Phase: | Single | Coil Structure: | Toroidal |
Coil Number: | Autotransformer |
Product Description
Model | Ratio (A) | Burden(VA) | Case Qty.(Pcs) | Item Code | |
Class 0.5 | Class: 1.0 | ||||
RCT-60 | 300/5 | 2.5 | 5 | 40 | 706103005 |
RCT-60 | 400/5 | 5 | 5 | 40 | 706104005 |
RCT-60 | 500/5 | 5 | 7.5 | 40 | 706105005 |
RCT-60 | 600/5 | 5 | 7.5 | 40 | 706106005 |
RCT-60 | 800/5 | 5 | 7.5 | 40 | 706108005 |
RCT-60 | 1000/5 | 10 | 15 | 40 | 706110005 |
RCT-60 | 1200/5 | 10 | 15 | 40 | 706112005 |

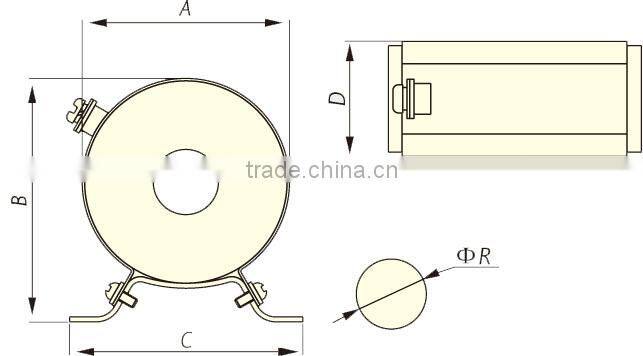

RCT-60 | |
A | 104 mm |
B | 146 mm |
C | 93 mm |
D | 41 mm |
R | 60 mm |
Dixsen was born in 1992, we are a professional manufacturer focuses on low voltage components like Current and voltage Transformers, Transformers, Meters, MCCBs, MCBs, AC Contactors, Fuse and Bases, Relays and sort of things. We locate in Wenzhou city, Zhejiang province, where is quite close to Shanghai and Ningbo port. A 15000 square meter area is divided into workshop zone and office zone, 430 employees are currently making their great efforts in that area for Dixsen brand.
