2013 New! Low Voltage High Accuracy Current Transformer

Specifications

1,CE, ROHS approval
2,Found in 1992
3,Professional manufacturer
4,ISO9001,ISO14001
5,Export to Europ, America, Asia, Africa

1. Description
An old range of (7 frames) plastic case current transformer, low cost.

·FEATURE
Busbar mounting
Low cost
Primary current from 5A to 3000A.

·SPECIFICAIONS
Rated Frequency                                           50/60Hz
Rated test voltage                                               3kV AC. (1 min)
Rated short-time thermal current(Ith)                      60In
Rated dynamic current, (Idyn)                              2.5Ith
Rated voltage,(Um)                                                 0.72Kv AC.
Continuous overload,(Id)                                       1.2In
Operating temperature                                             -10°C~50°C
Housing self-extinguishing class                              VO
Safety factor                                                        FS 5
Secondary current                                              5A/1A

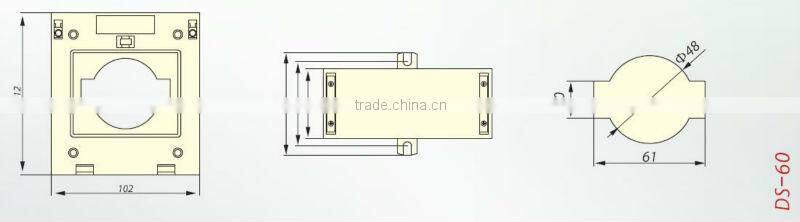

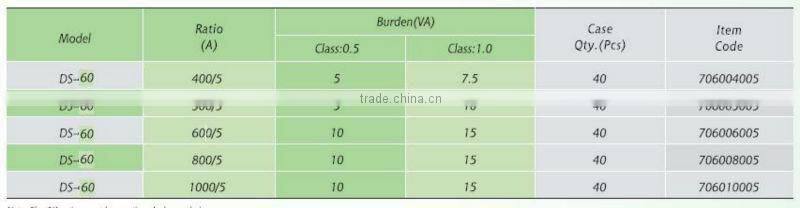

Model

DS-56/B, DS-56/20, DS-56/30, DS-30, DS-40, DS-60, DS-100







2. Packing show



3. Company show









4. Production series

























....
