Specifications
1,CE, ROHS approval2,Found in 1992
3,Professional manufacturer
4,ISO9001,ISO14001
5,Export to Europ, America, Asia, Africa
·DESCRIPTION
An old range of (7 frames) plastic case current transformer, low cost.

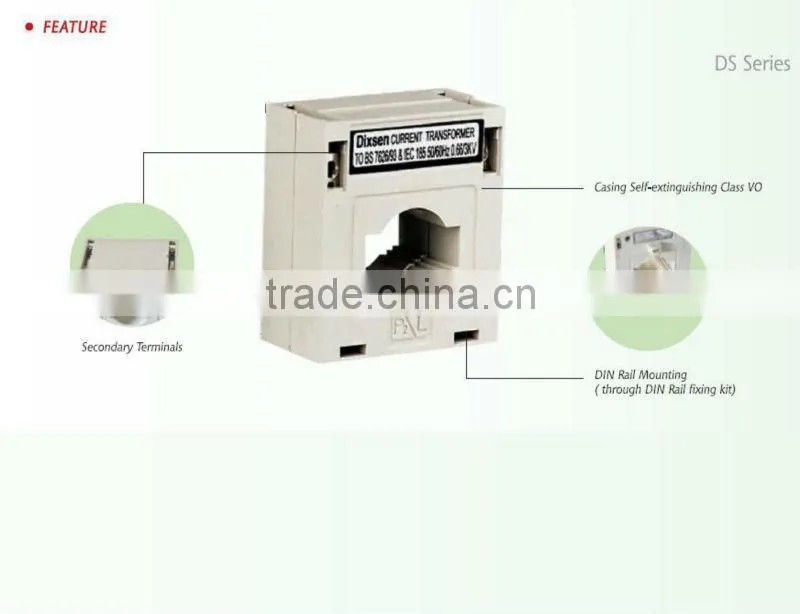

·FEATURE
Busbar mounting
Low cost
Primary current from 5A to 3000A.
·SPECIFICAIONS
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage,(Um) 0.72Kv AC.
Continuous overload,(Id) 1.2In
Operating temperature -10°C~50°C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A
Model

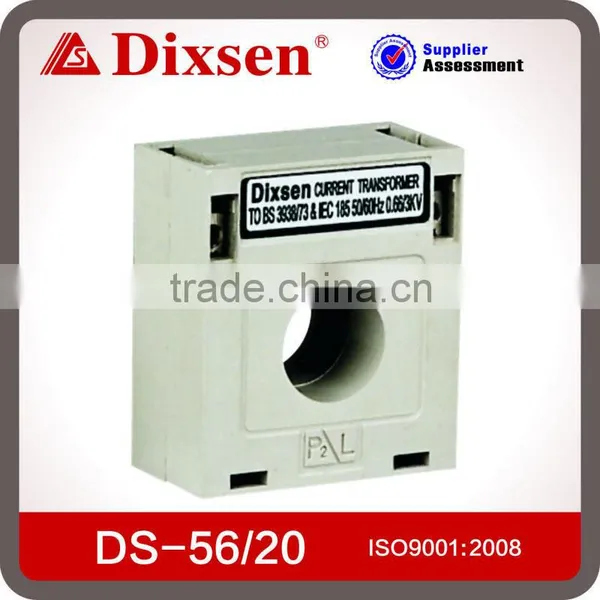

DS-56/B, DS-56/20, DS-56/30, DS-30, DS-40, DS-60, DS-100
....
