RCT-25 Current Coil/current Transformer/CT

Specifications

1,CE, ROHS approval
2,Found in 1992
3,Professional manufacturer
4,ISO9001,ISO14001
5,Export to Europ, America, Asia, Africa

1. DESCRIPTION
A simple design (5 frames) plastic case steel feet current transformer, low cost.

·FEATURE
Base mounting
Low cost
Primary current from 5A to 3000A.

·SPECIFICAIONS
Rated Frequency                                 50/60Hz
Rated test voltage                    3kV AC. (1 min)
Rated short-time thermal current(Ith)           60In
Rated dynamic current, (Idyn)                   2.5Ith
Rated voltage,(Um)                         0.72Kv AC.
Continuous overload,(Id)                           1.2In
Operating temperature                    -10°C~50°C
Housing self-extinguishing class                 VO
Safety factor                                            FS 5
Secondary current                                  5A/1A

















2. Packing show



3. Company show

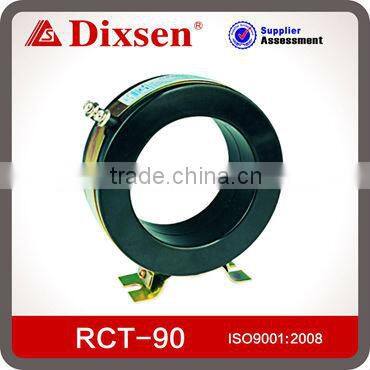

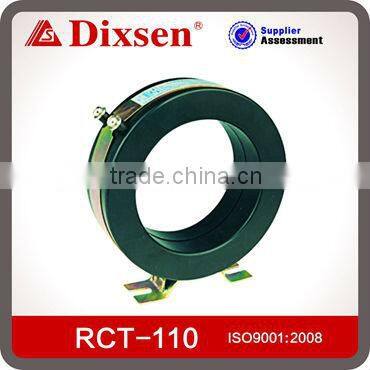

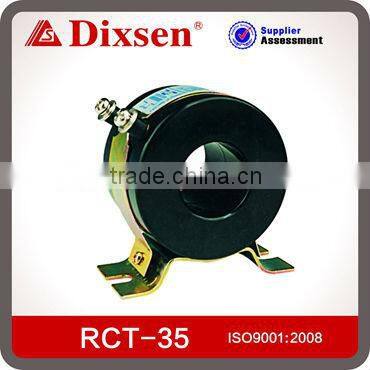

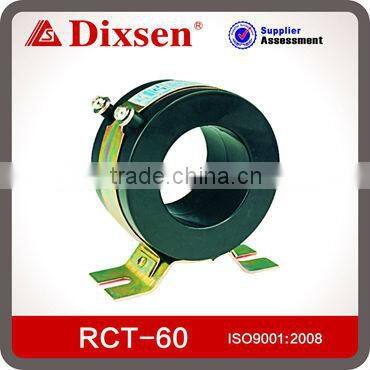

4. Production series























....
