Specifications
1. CE, ROHS standard2. ISO9001, ISO14001
3. Professory transformer manufacturer
4, Export to Europe, Asia, America, Africa
DESCRIPTION
A range of (9 frames) EURO style long life design plastic case current transformer, enforced terminal makes the CT keep cooling after full load using for a long term, elegant black figure makes the CT perfectly assort with related components in high quality panel board.
MODEL
MBO-62/B, MBO-62/20,MBO-62/30, MBO-62/40, MBO-30, MBO-40, MBO-60, MBO-70, MBO-100.

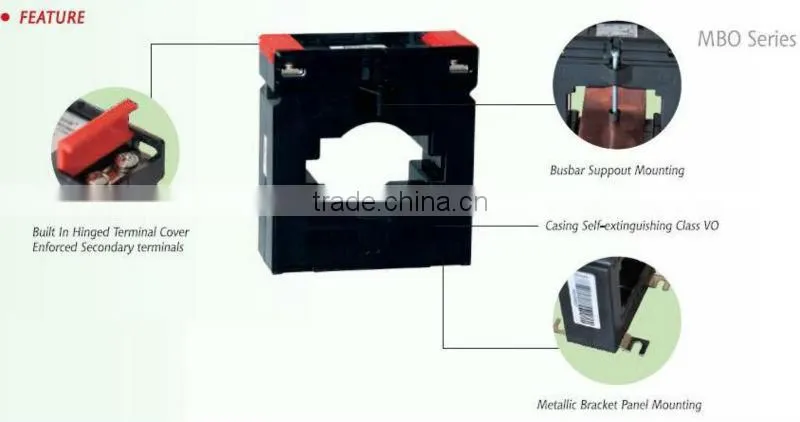

·FEATURE
Two built in fixing methods:Side base; Busbar mounting
Built in hinged terminal cover
Enforced terminals
Primary current from 5A to 3000A.
·SPECIFICAIONS
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage,(Um) 0.72Kv AC.
Continuous overload,(Id) 1.2In
Operating temperature -10°C~50°C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A
....
