DIXSEN Brand Instrument Current Transformers ABO-125

Specifications

1. CE, ROHS standard
2. ISO9001, ISO14001
3. Professory transformer manufacturer
4, Export to Europe, Asia, America, Africa

Instrument Current Transformers ABO-125

1.Description

A new range (8 frames) perfect designed plastic case current transformer, advanced snap on body, high accuracy (up to Class 0.2S), humanization transparent cover and lead seal hole design makes the CT very easy to indentify after long term use and perfect anti-stealing electricity.



2.Feature
Built in hinged terminal cover
Built in transparent cover for name plate
Wide range accuracy (3, 1, 0.5, 0.5S, 0.2, 0.2S) enables meet the worldwide requirement.
Primary current from 5A to 5000A.



3.Specification

Rated Frequency                                                50/60Hz
Rated test voltage                                               3kV AC. (1 min)
Rated short-time thermal current(Ith)                   60In
Rated dynamic current, (Idyn)                             2.5Ith
Rated voltage,(Um)                                            0.72Kv AC.
Continuous overload,(Id)                                    1.2In
Operating temperature                                        -10°C~50°C
Housing self-extinguishing class                           VO
Safety factor                                                     FS 5
Secondary current                                             5A, 1A, 0.5A, 0.25A, 0.1A

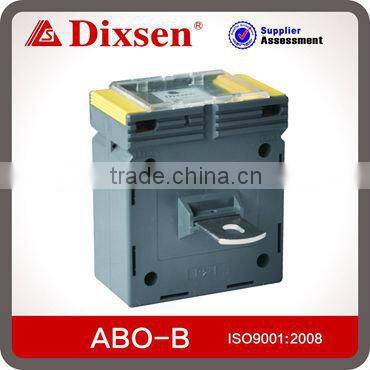

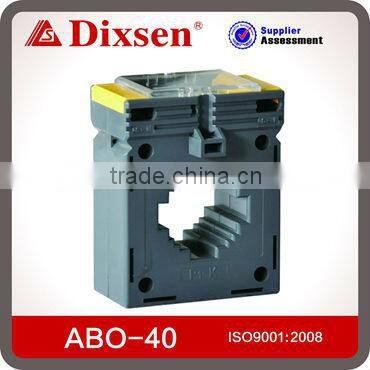

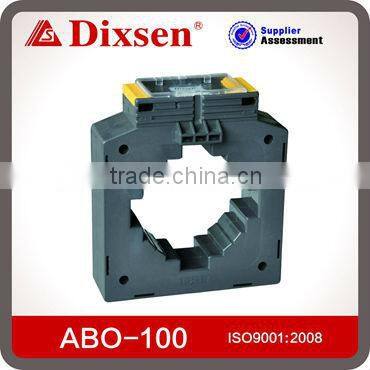

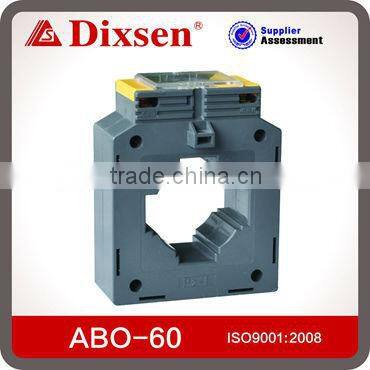

ABO series photos:

ABO-B, ABO-30T, ABO-30, ABO-30C, ABO-40, ABO-60, ABO-85, ABO-100, ABO-125

















4. Packing show



5. Company show









6. Production series

















....
