Help CenterMini Spilt Core Current Transformer UK-40
Related Products
-
DIXSEN Brand Instrument Current Transformers ABO-125US$ 7 - 15MOQ: 100 Pieces -
Miniature Current Transformer/instrument Transformer CK-20US$ 3 - 5MOQ: 100 Pieces
-
Low Voltage With Accessory Current Transfromer CK-30US$ 4 - 11MOQ: 500 Pieces
-
DM-20 Mini DIN-Rail Current TransformerUS$ 3 - 5MOQ: 100 Pieces
-
3PHASE Low Voltage High Accuracy Current Transformer D247US$ 10 - 13MOQ: 100 Pieces
Specifications
1.VDE CE RoHS2.ISO9001, ISO14001
3.cable size:40mm
3.MSQ, MES,ABO,MBO,DBP,D363,MR,PR
4.Europ USA Asia Middle East Africa

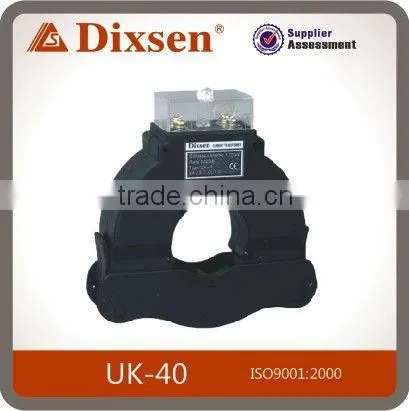

Spilt core Current transformer UK-40
1.Description
A new split core current transformer inside hinge design can match space limitation which no need open existing cable system, much save labor cost and time.

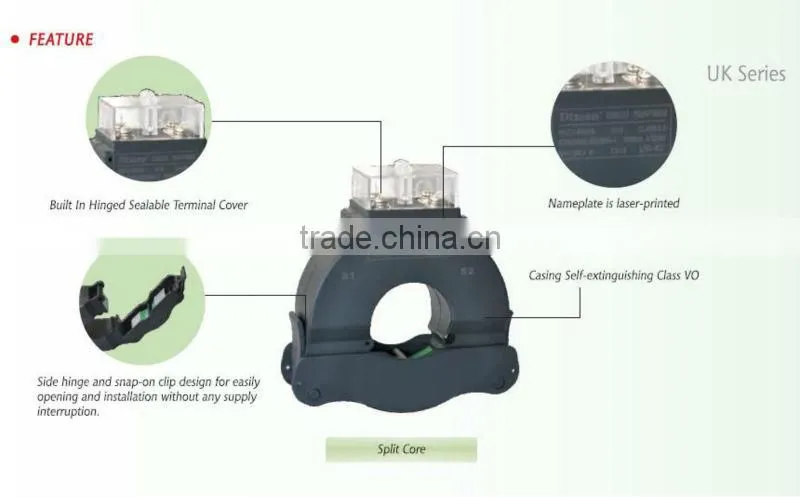

·FEATURE
2.Feature
Busbar mounting
Side hinge design
Primary current from 100A to 800A.
3.Specification
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage,(Um) 0.72Kv AC.
Continuous overload,(Id) 1.2In
Operating temperature -10°C~50°C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A
4. Packing show
5. Company show
6. Production series
....
