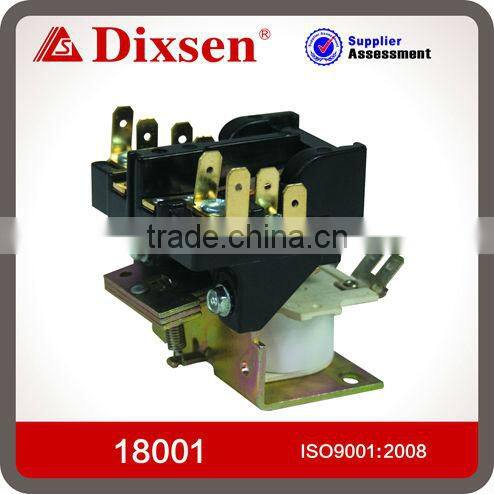

18 Amp 240V 18007 Magnetic Contactor

Specifications

1.UL certificate
2.18001.18002, 18003. 18005, 18006, 18007
3.Factory ISO9001 and ISO14001
4.DCK3 CJX1 CJX2 CJ19 CJX2N LA3 LX1

180 Series Contactor

UL listed 180 Series Magnetic line contactor are designed primarily to replace contactors used in air conditioning (A/C) and electric heating to control blower motors. In addition they are used to switch pumps and computer power supplies. Replace General Electric Contactors and other manufacturers.

There is only one construction size for this series Magnetic line contactor.

Below is selection form:

Type	Rated Current	Resistive Current	Locked Rotar Current	Coil Voltage @ 50/60Hz	Switching	Approval	PCS./CTN.	CARTON SIZE	G. Weight
180 series Magnetic line contactor
18001	30A	30A	120A	24V AC	DPST	UL	80	41X29X31	25KG
18002	30A	30A	120A	120V AC	DPST	Pending	80	41X29X31	25KG
18003	30A	30A	120A	240V AC	DPST	Pending	80	41X29X31	25KG
18005	18A	25A	240A	24V AC	DPST	Pending	80	41X29X31	25KG
18006	18A	25A	240A	120V AC	DPST	Pending	80	41X29X31	25KG
18007	18A	25A	240A	240V AC	DPST	Pending	80	41X29X31	25KG

Notice: 18001 is UL listed product.





2. Company show









Workshop



Exhibition





Certificate



3. Production series







4. Packing show





....
