Home > Electrical & Electronics > Relay & Contactor > Contactor > Dixsen AC CONTACTOR Magnetic Contactor

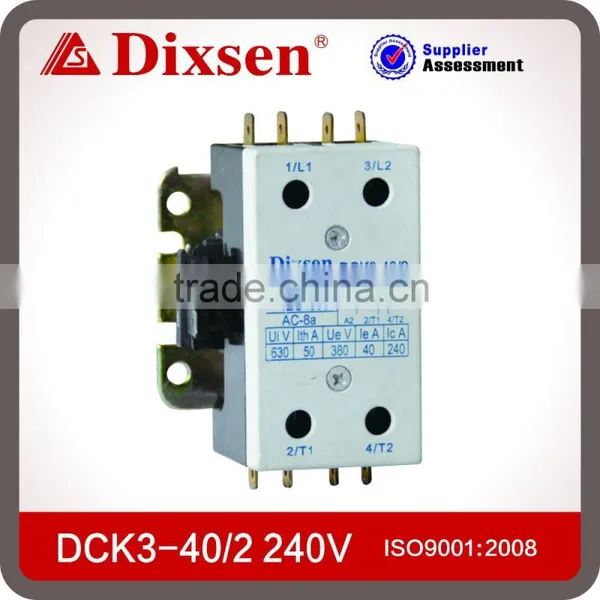

Dixsen AC CONTACTOR Magnetic Contactor

Name: Dixsen AC CONTACTOR Magnetic Contactor
Brand: Dixsen
SKU: 114697209
Availability: InStock

Dixsen AC CONTACTOR Magnetic Contactor thumbnail-1

Dixsen AC CONTACTOR Magnetic Contactor photo-1

US$ 2.45 - 2.65 MOQ: 50 Units

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Dixsen

Model Number:

DCK3+2PCS Series

Contact Supplier Request Quote Chat Now

Zhejiang Dixsen Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Dixsen

Model Number DCK3+2PCS Series

Electricity Type AC

Number of Pole Other, None

Phase 2

Main Circuit Rating Voltage Other, 24V; 120V; 240V

Main Circuit Rating Current Other, please contact our sales team

General

Definite Purpose Contactors are the result of the latest advances in reliability engineering. Heat dissipation, mechanical repeatability, coil efficiency, contact material, and design have all been optimized in this series of definite purpose contactors from Dixsen.

DCK3+2PCS Series DP (Definite purpose) Contactors are designed for using in refrigeration, air conditioning, and electric heating systems. Power connections can be made with either screw terminals with quick connects or lug terminals with quick connects. And this series contactors are designed to be a tougher, more compact, more versatile and quieter contactor than ever before. Definite purpose contactors unlike general purpose contactors are non-rebuildable electronic controls designed for specific application with clearly defined operating conditions.

Contact material

Silver cadmium oxide

Approximate mechanical life cycles

1000000

Fullfill following Standard

IEC60947-4-1, EN60947-4-1, GB14048-4

Terminals selection

There are three sorts of terminals for 1P and 2P of DCK3: Please see below photos:

1. Binder head screw (Code W): Pressing connects

2. Screw with square washer (Code Y): Pressing connects

3. Box Lug (Code N): Quick connects

AC CONTACTOR: Below is the selection form for DP Definite purpose contactors:

Type	Full Load Amps @ 50/60Hz	Resistive Amps @ 50/60Hz	Locked Rotor Amps @ 50/60 Hz	No. of Poles	Coil Voltage @ 50/60Hz	PCS./CTN.
DCK3-20/2PCS 24V	20A	25A	120A	2P	24V	40
DCK3-20/2PCS 120V				2P	120V	40
DCK3-20/2PCS 240V				2P	240V	40
DCK3-25/2PCS 24V	25A	30A	150A	2P	24V	40
DCK3-25/2PCS 120V				2P	120V	40
DCK3-25/2PCS 240V				2P	240V	40
DCK3-30/2PCS 24V	30A	40A	180A	2P	24V	40
DCK3-30/2PCS 120V				2P	120V	40
DCK3-30/2PCS 240V				2P	240V	40
DCK3-40/2PCS 24V	40A	50A	240A	2P	24V	40
DCK3-40/2PCS 120V				2P	120V	40
DCK3-40/2PCS 240V				2P	240V	40

Feature: DCK3+2PCS Series AC Contactors are compact size contactors for HVAC systems. It's also called A/C contactor or power contactor or Definite Purpose Contactor.

...
