Definite Purpose Contactor (UL Listed) DCK3 Series

Definite Purpose Contactor (UL Listed) DCK3 Series thumbnail-1
Definite Purpose Contactor (UL Listed) DCK3 Series photo-1
US$ 2.3 - 2.65 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dixsen
Model Number:
DCK3 Series
Contact Supplier Request Quote Chat Now
Zhejiang Dixsen Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dixsen
Model Number DCK3 Series
Electricity Type AC
Number of Pole 2
Phase 2
Main Circuit Rating Voltage Other, 24V; 120V; 240V

Specifications

1. UL and cUL approval from 20A~75A.
2. ISO9001 and ISO14001 approval.
3. Manufacturer.
4. Reasonable packing.

Definite Purpose Contactor (UL listed) DCK3 Series

Definite Purpose Contactor also called Air conditioning purpose contactor and A/C Contactor and DP contactor.

Definite Purpose Contactor (UL listed) DCK3 Series

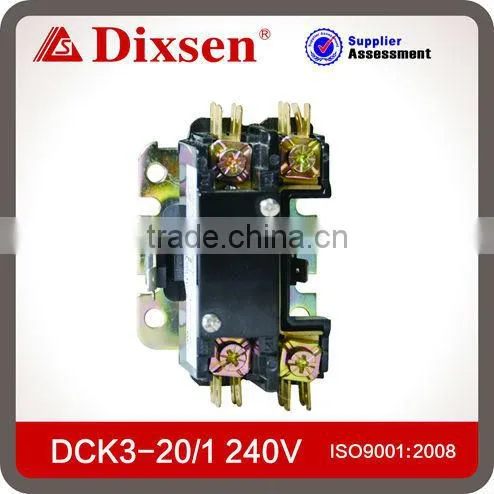

DCK3 Series DP (Definite purpose) Contactors are designed for using in refrigeration, air conditioning, and electric heating systems. Power connections can be made with either screw terminals with quick connects or lug terminals with quick connects. And this series contactors are designed to be a tougher, more compact, more versatile and quieter contactor than ever before.  Definite purpose contactors unlike general purpose contactors are non-rebuildable electronic controls designed for specific application with clearly defined operating conditions. Dixsens DP contactors are all UL listed. UL listed Definite purpose contactors from 20A to 75A (1 pole to 3 poles).

Contact material

Silver cadmium oxide



Dust cover included.


Approximate mechanical life cycles

1000000



Fullfill following Standard

UL508, IEC60947-4-1, EN60947-4-1, GB14048-4, Mees ARI-780 and CSA Standard



Terminals selection

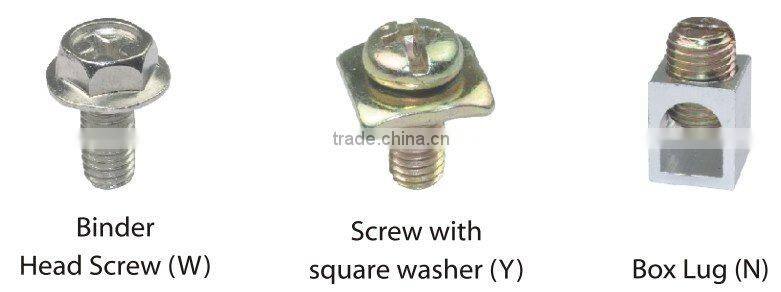

There are three sorts of terminals for 1P and 2P of DCK3, Please see below photos:

Definite Purpose Contactor (UL listed) DCK3 Series

1.  Binder head screw (Code W): Pressing connects

2.  Screw with square washer (Code Y): Pressing connects

3.  Box Lug (Code N): Quick connects

Type Full Load Amps (A)  Resistive Amps (A)  Locked Rotor Amps (A) No. of Poles Coil Voltage (VAC) Approved PCS./CTN.
DCK3-30/1   24V 30 40 180 1P 24 cULus 40
DCK3-30/1 120V 30 40 180 1P 120 cULus 40
DCK3-30/1 240V 30 40 180 1P 240 cULus 40
DCK3-20/2 120V 20 25 120 2P 120 cULus 40
DCK3-20/2 240V 20 25 120 2P 240 cULus 40
DCK3-25/2 120V 25 30 150 2P 120 cULus 40
DCK3-25/2   24V 25 30 150 2P 24 cULus 40
DCK3-30/2   24V 30 40 180 2P 24 cULus 40
DCK3-30/2 120V 30 40 180 2P 120 cULus 40
DCK3-30/2 240V 30 40 180 2P 240 cULus 40
DCK3-40/2   24V 40 50 240 2P 24 cULus 40
DCK3-40/2 120V 40 50 240 2P 120 cULus 40
DCK3-40/2 240V 40 50 240 2P 240 cULus 40
DCK3-25/3   24V 25 30 150 3P 24 cULus 32
DCK3-25/3 120V 25 30 150 3P 120 cULus 32
DCK3-25/3 240V 25 30 150 3P 240 cULus 32
DCK3-30/3   24V 30 40 180 3P 24 cULus 32
DCK3-30/3 120V 30 40 180 3P 120 cULus 32
DCK3-30/3 240V 30 40 180 3P 240 cULus 32
DCK3-40/3   24V 40 50 240 3P 24 cULus 32
DCK3-40/3 120V 40 50 240 3P 120 cULus 32
DCK3-40/3 240V 40 50 240 3P 240 cULus 32
DCK3-50/3   24V 50 60 240 3P 24 cULus 32
DCK3-50/3 120V 50 60 240 3P 120 cULus 32
DCK3-50/3 240V 50 60 240 3P 240 cULus 32
DCK3-60/3   24V 60 70 240 3P 24 cULus 32
DCK3-60/3 120V 60 70 240 3P 120 cULus 32
DCK3-60/3 240V 60 70 240 3P 240 cULus 32
DCK3-75/3   24V 75 80 240 3P 24 cULus 32
DCK3-75/3 120V 75 80 240 3P 120 cULus 32
DCK3-75/3 240V 75 80 240 3P 240 cULus 32

...
