Specifications
*YB-50 Series Rotary Vane Pump*It is with by-pass valve built-in
*Reasonable silencer design

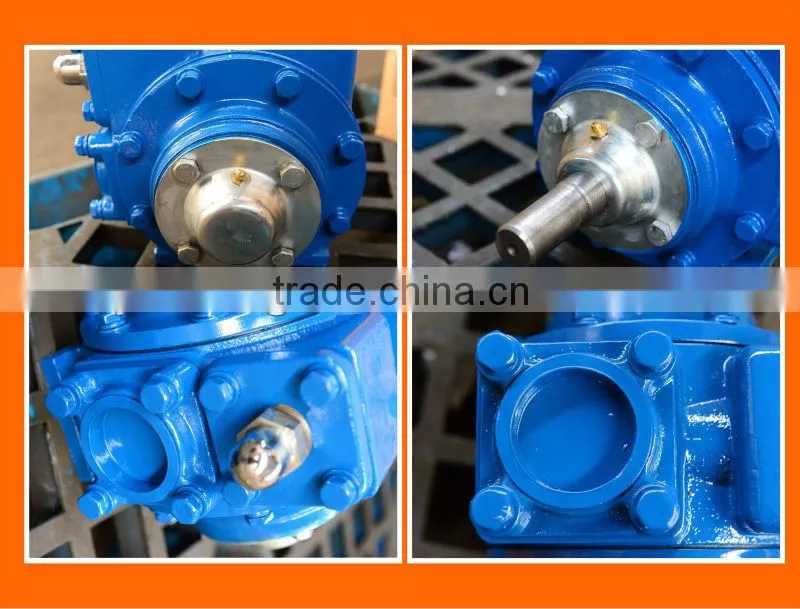

YB Series Rotary Vane Pump
YB Series Rotary Vane Pump
Features
1.YB series self-priming rotary vane pump is with by-pass valve built-in.

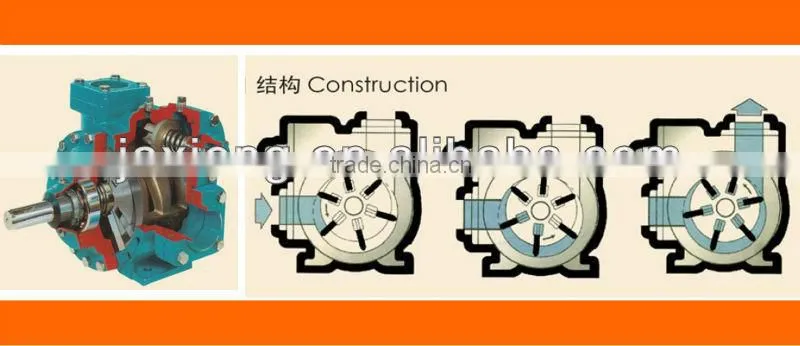

2.The pump uses a rotor with sliding vanes to drive the liquid transfer.
3.The material of construction is nodular cast iron with self-lubricating vanes.
4The pump has its obvious advantage in the transmission of high flow at low revolution.
5Due to its superior performance, the pump can handle viscous and volatile liquid and require less horsepower than other equivalent pumps.
Flow Rate
| Model | Size/Flow Rate/Speed | 650 RPM | 600RPM | 550 RPM | 500 RPM | 450RPM | 400 RPM | ||||||
| G/min | L/min | G/min | L/min | G/min | L/min | G/min | L/min | G/min | L/min | G/min | L/min | ||
| YB-50 | 50mm/2'' | 80 | 300 | 72 | 270 | 64 | 240 | 56 | 210 | 48 | 180 | 40 | 150 |
| YB-65 | 65mm/2.5'' | 132 | 500 | 123 | 465 | 114 | 430 | 103 | 390 | 93 | 350 | 82 | 310 |
| YB-80 | 80mm/3'' | 265 | 1000 | 243 | 920 | 222 | 840 | 200 | 760 | 180 | 680 | 160 | 600 |
| YB-100 | 100mm/4'' | 505 | 1900 | 405 | 1530 | ||||||||
Performance Data
| Model | YB-50 | YB-65 | YB-80 | YB-100 | |
| Rated Speed | 640RPM | 640RPM | 640RPM | 640RPM | |
| Power | HP | 3.0 | 5.0 | 10 | 25 |
| KW | 2.2 | 4 | 7.5 | 18.5 | |
Application
Oil tank truck
Fleet refueling.
Lube oil
Aviation refuelers
Transmission of petrochemicals, gasoline, diesel, biofuel, solvent, etc
.
YB Series Rotary Vane Pump
Packaging
| Model | YB50 | YB65 | YB80 | YB100 | |||
| Type | Without Motor | With Motor.Vbelt Driven | Without Motor | With Motor.Vlet Driven | Without Motor | With Motor coupling Driven | Without Motor |
| Dimension | 44*33*39 | 80*55*59 | 44*33*32 | 119*55*59 | 45*40*38 | 130*47.5*76 | 54*49*58 |
| Gross Weight | 32KG | 90KG | 42.5KG | 110KG | 66 KG | 200 KG | 172 KG |
| Net Weight | 31KG | 86KG | 40KG | 92KG | 64 KG | 185 KG | 160 KG |
| Pcakaging | 1 pc/ Wood Case | ||||||
Shipping
Delivery the goods 7-15 working days after recieved the payment.
The products delivery by ship or by plane, or you can choose your shipping agency.
