Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > PD Pump / Turbo Pump / Rotodynamic Pump / Vane - Type Pump

PD Pump / Turbo Pump / Rotodynamic Pump / Vane - Type Pump

Name: PD Pump / Turbo Pump / Rotodynamic Pump / Vane - Type Pump
Brand: JIASONG
SKU: 114685945
Availability: InStock

PD Pump / Turbo Pump / Rotodynamic Pump / Vane - Type Pump thumbnail-1

PD Pump / Turbo Pump / Rotodynamic Pump / Vane - Type Pump photo-1

US$ 50 - 300 MOQ: 5 Units

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

JIASONG

Model Number:

YB sevies

Contact Supplier Request Quote Chat Now

Shanghai Jiasong Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name JIASONG

Model Number YB sevies

Theory Rotary Pump

Structure Single-stage Pump

Usage Oil

Power Electric

Standard or Nonstandard Standard

Fuel Other, Electricity

Pressure Other, medium

Application Other, using for high flow fuel dispenser and floating fuel equipment

Specifications

YB series rotary vane pump.The pump has its obvious advantage in the transmission of high flow at low revolution

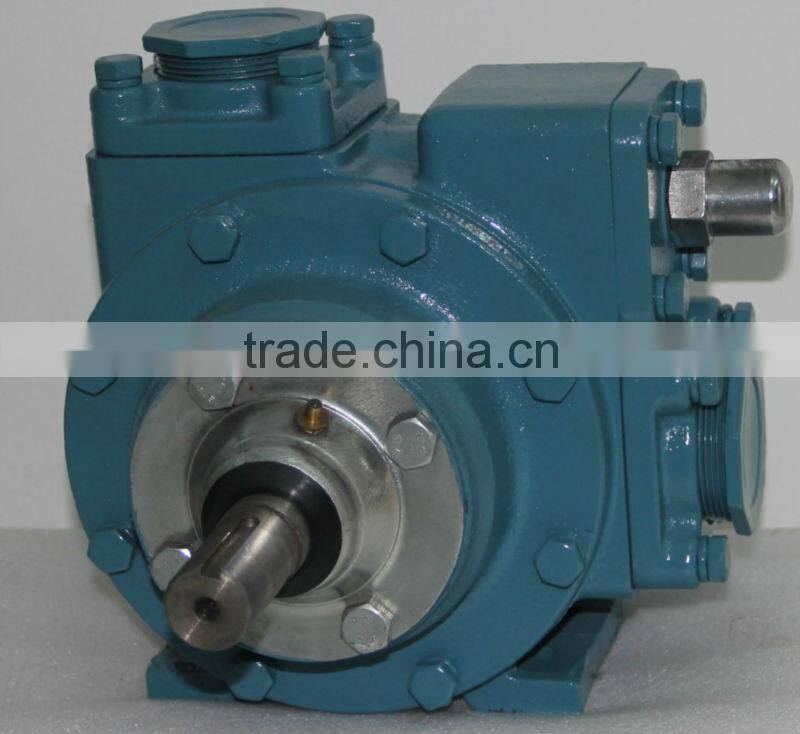

YB series rotary vane pump

YB-50 Series Rotary Vane Pump / Vane Oil Pump / YB Oil Transfer Pump

Product Details: YB-50 Series Rotary Vane Pump

Main Features
YB series self-priming rotary vane pump is with by-pass valve built-in. The pump uses a rotor with sliding vanes to drive the liquid transfer. The material of construction is nodular cast iron with self-lubricating vanes. Due to its superior performance, the pump can handle viscous and volatile liquid and require less horsepower than other equivalent pumps. The pump has its obvious advantage in the transmission of high flow at low revolution.
Construction

Flow Rate

Model	Size/Flow Rate/Speed	650 RPM		600RPM		550 RPM		500 RPM		450RPM		400 RPM
Model	Size/Flow Rate/Speed	G/min	L/min	G/min	L/min	G/min	L/min	G/min	L/min	G/min	L/min	G/min	L/min
YB-50	50mm/2''	80	300	72	270	64	240	56	210	48	180	40	150
YB-65	65mm/2.5''	132	500	123	465	114	430	103	390	93	350	82	310
YB-80	80mm/3''	265	1000	243	920	222	840	200	760	180	680	160	600
YB-100	100mm/4''							505	1900			405	1530

Performance Data

Model		YB-50	YB-65	YB-80	YB-100
Rated Speed		640RPM	640RPM	640RPM	640RPM
Power	HP	3.0	5.0	10	25
Power	KW	2.2	4	7.5	18.5

Application
Oil tank truck
Fleet refueling.
Lube oil
Aviation refuelers
Transmission of petrochemicals, gasoline, diesel, biofuel, solvent, etc.
Installation

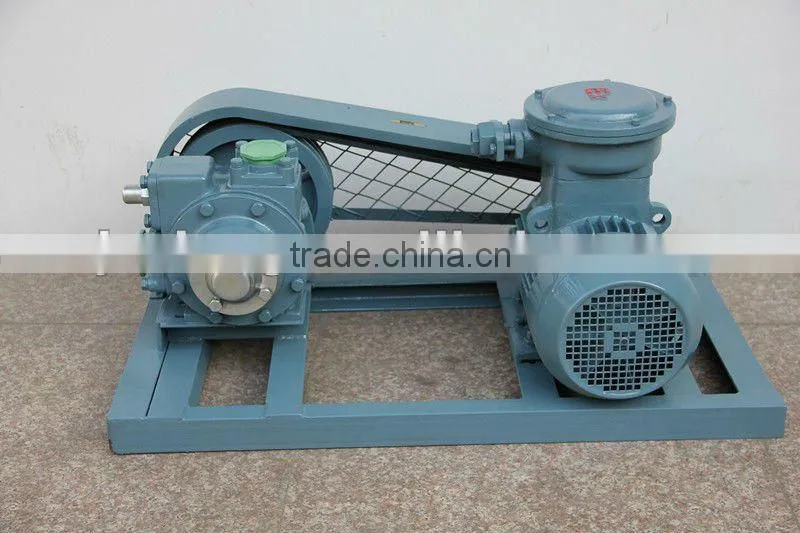

With cardan shaft or hydraulic motor, the pump can be installed on oil tank trucks. And also it can be installed on metal baseplates with motor or diesel engine, using for high flow fuel dispensers and floating fuel equipments which are compose of pumps and flowmeters. Equipped with Teflon seals, the pump can also transfer a wide variety of solvent in the petrochemical industry.

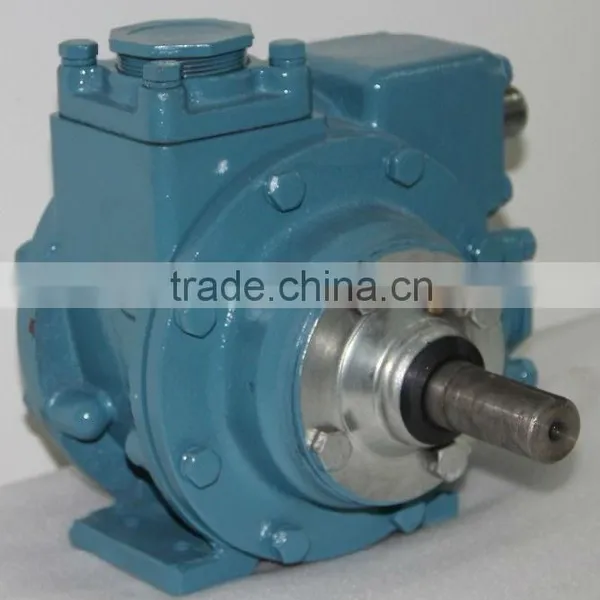

Product Images: YB-50 Series Rotary Vane Pump
