HY-CRI200B-1 high pressure common rail test bench for testing CR injector and pump
- 10 Set / Sets per Month
- QINGDAO
- Windows XP System,HY-CRI200B-I High Pressure Common Rail Injector and Pump Test Bench
- Windows XP System,HY-CRI200B-I High Pressure Common Rail Injector and Pump Test Bench
- Windows XP System,HY-CRI200B-I High Pressure Common Rail Injector and Pump Test Bench
- HY-CRI200B-I common rail test bench , Bosch injector and pump test bench
- HY- CRI200B-I test bench for injector and pump stable rail pressure
- Windows XP System,HY-CRI200B-I High Pressure Common Rail Injector and Pump Test Bench
Product Details
Place of Origin: | Shandong, China | Brand Name: | HAIYU | Model Number: | CRI200B-I |
Power: | Electronic | Usage: | Auto Testing Machine |
Packaging Details
wooden package fit for delivery
Product Description
Specifications
1.Test both fuel injector and pump2.Delixi electronic components
3.Stable performance
4.Tianqi electric motor

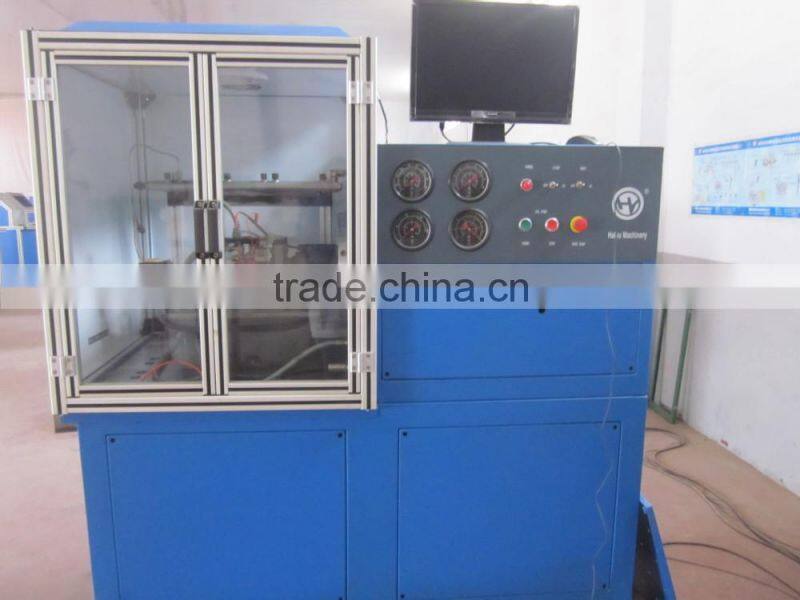

HY-CRI200B-1 High Pressure Common Rail Test Bench
for testing fuel injector and pump
CE certificate, ISO 9001:2008 certificate
Introduction:
CRI200B-1 high pressure common rail injector test bench is the latest detection equipment to check diesel high-pressure common rail injector and have 600 kinds of common rail injector standard data.With high precision flow testing instruments,it can automatically test the oil injection and oil return under the state of full load,idle operation,pre-injection and start-up.
Main Engine System
| a) Tianqi quadrupole electric motor (380V): 15KW Alpha frequency converter: 15KW b) The main frame is cold box board and aviation aluminum composite structure, cast iron operating platform. c)The accuracy of weighing oil digital readout (weighing transducer) is 0.1ml. d) Its revolving speed range is 0~1500r/min (adjustable) (digital readout). e)The height of main engine center is 125mm.
|
Oil Circuit System
| g)Fuel delivery: 10L/min h)Fuel delivery pressure: 0~1Mpa. i)Rail pipe is BOSCH. j)Rail pressure: 0~200Mpa. k)The rail pipe is controlled by automatically closed cycle, and pressure display (accuracy±0.1Mpa) with overpressure protection. l)Oil temperature (adjustable) is controlled automatically, heated by heating pipe and refrigerated through strong refrigeration unit. |
Electrical equipment
| a)It has built-in electrical box and converter box. b)Short-circuit protection.
|
Data base
| It has more than 400 kinds of standard build-in data, which can be upgraded.
|
Testing fuel injector and high pressure pump
| a)It can test 1 fuel injector every time. b)It can test 6 fuel injectors at most in the same time (Price is extra). c)The types it can test including BOSCH, DENSO, DELPHI, and SIEMENS.
|
Overall dimension
| Length: 1600mm, Width: 800mm, Height: 1695mm
|
|
|

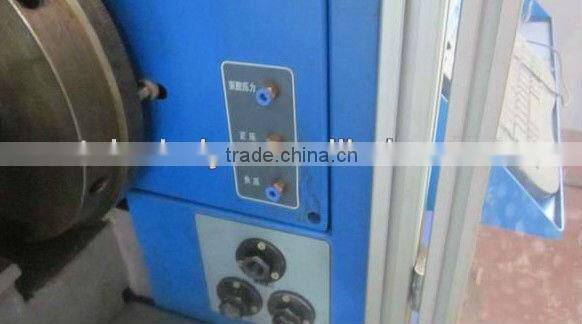

Picture in detail:

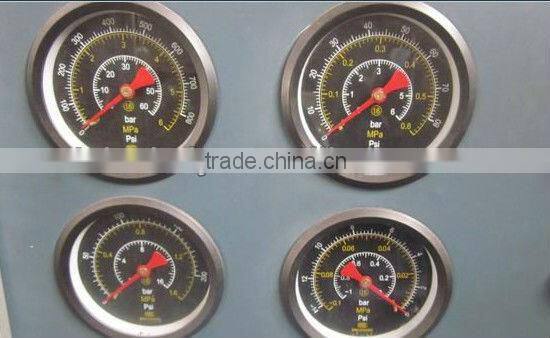

Pressure Gauge in the test bench

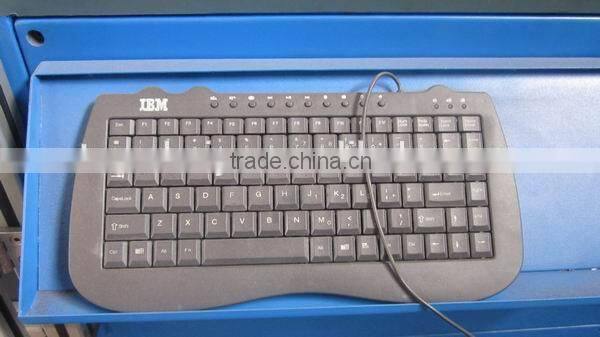

with keyboard
CE certificate
Waiting for your cooperation sincerely!
Company Profile
Taian Haiyu Machinery Co., Ltd. is located at the foot of famous Mountain Tai in the north development zone of Taian City which is between spring town - Jinan and the hometown of Confucius - Qufu. We enjoy convenient transportation and Taian City is at the junction of Beijing-Fuzhou Highway and Beijing-Shanghai Highway.
Taian Haiyu Machinery Co., Ltd. is a modern technological company combing research, production, sale and service. We have a number of engineers working on designing and producing engine testing equipment and some sophisticated staff members specialized in computer software and hardware design. In recent years, we have cooperated with research institutions of universities. Our company succeeds in researching new series of HY injection pump test benches and injector test benches. Functions of the equipment have reached the internationally advanced level. We fully meet the needs of customers. Besides, we can also design particular testing benches according to customers' requests. In order to meet the requirements of lowering exhaust in diesel engine field and achieve European III standard, our company researches and develops common rail system test benches which have excellent functions and high accuracy. Our test benches have been widely used by internal engine industry and are exported to more than 30 countries and regions, including Asia, Africa and America.
Our company also has long-term cooperation with Guanghua Gas and imports SMC gas meter boxes, stainless steel meter boxes, cold plates and other metal products.
We adhere to the principle of "sincere cooperation" and warmly welcome customers from all over the world to visit us. We hope that you can work together with us for a beautiful future.
