Specifications
1.Test both fuel injector and pump2.Delixi electronic components
3.Stable performance
4.Tianqi main motor
5.Fast delivery

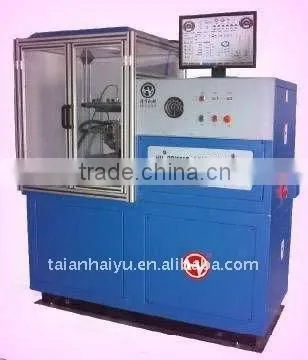

HY-CRI200B-1 High Pressure Common Rail Test Bench
for testing fuel injector and pump
CE certificate, ISO 9001:2008 certificate
Introduction:
CRI200B-1 high pressure common rail injector test bench is the latest detection equipment to check diesel high-pressure common rail injector and have 600 kinds of common rail injector standard data.With high precision flow testing instruments,it can automatically test the oil injection and oil return under the state of full load,idle operation,pre-injection and start-up.
|
Main Engine System
|
a) Tianqi quadrupole electric motor (380V): 15KW Alpha frequency converter: 15KW b) The main frame is cold box board and aviation aluminum composite structure, cast iron operating platform. c)The accuracy of weighing oil digital readout (weighing transducer) is 0.1ml. d) Its revolving speed range is 0~1500r/min (adjustable) (digital readout). e)The height of main engine center is 125mm.
|
|
Oil Circuit System
|
g)Fuel delivery: 10L/min h)Fuel delivery pressure: 0~1Mpa. i)Rail pipe is BOSCH. j)Rail pressure: 0~200Mpa. k)The rail pipe is controlled by automatically closed cycle, and pressure display (accuracy±0.1Mpa) with overpressure protection. l)Oil temperature (adjustable) is controlled automatically, heated by heating pipe and refrigerated through strong refrigeration unit. |
|
Electrical equipment
|
a)It has built-in electrical box and converter box. b)Short-circuit protection.
|
|
Data base
|
It has more than 400 kinds of standard build-in data, which can be upgraded.
|
|
Testing fuel injector and high pressure pump
|
a)It can test 1 fuel injector every time. b)It can test 6 fuel injectors at most in the same time (Price is extra). c)The types it can test including BOSCH, DENSO, DELPHI, and SIEMENS.
|
|
Overall dimension
|
Length: 1600mm, Width: 800mm, Height: 1695mm
|
|
|
|
Picture in detail:

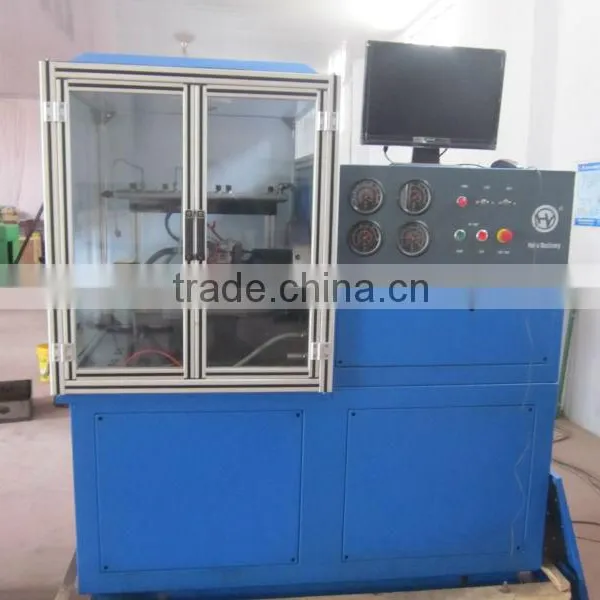

Pressure Gauge in the test bench

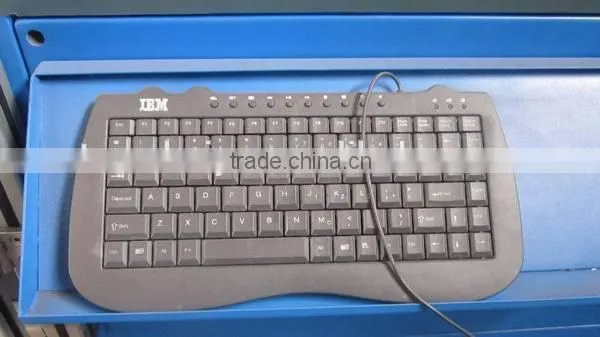

with keyboard
CE certificate
Waiting for your cooperation sincerely!
