Specifications
1. Voltage: 220V2. Power: 200w
3. Checking Bosch VP37 pump
4. Weight: 5kg.

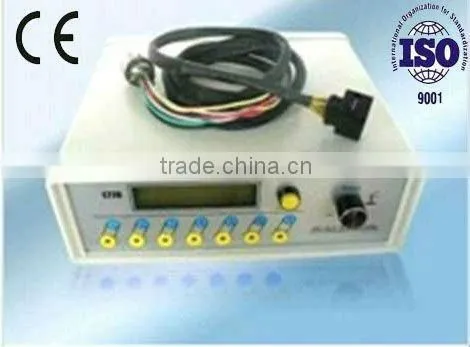

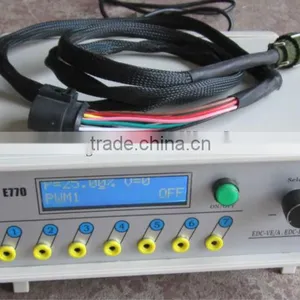

Bosch Pump VP37 Tester
General Introduction:
VP37 is an indispensable electronic control instrument to test function of rotating pump, EDC is electronic fuel injection system for small and business car, for example AUDI, BMW, FIAT, ROVER, BENZ, BORA, JETTA, ISUZU and HAUTAI etc.
VP37 is a complete digital device, can test parameters of rotating electronic control pump according to standard parameter from manufacturer.
There are two ways for Electronic Distributor Pump Testing, Static State and Dynamic State:
1) Static State: Connect lines of distributor pump with VP37, and measure by multi-meter according to data from factory, to identify order of all line connection suit factory standards.
2) Dynamic State: Control rotary electronic pump working by VP37 signal, at the same time rotate electronic pump output signal and display on VP37.
VP37 equipped with alarm light includes output short or overload, to find and solve problem.
PARAMETER
1) Voltage: 220V
2) Input frequency: 50/60HZ
3) Output power: 200VA
4) Output current: 10A
5) Display voltage: 0-5000mv
6) Work temperature: 0-50°C
7) Work humidity: 20-85HR
8) Dimension: 160*490*410mm
