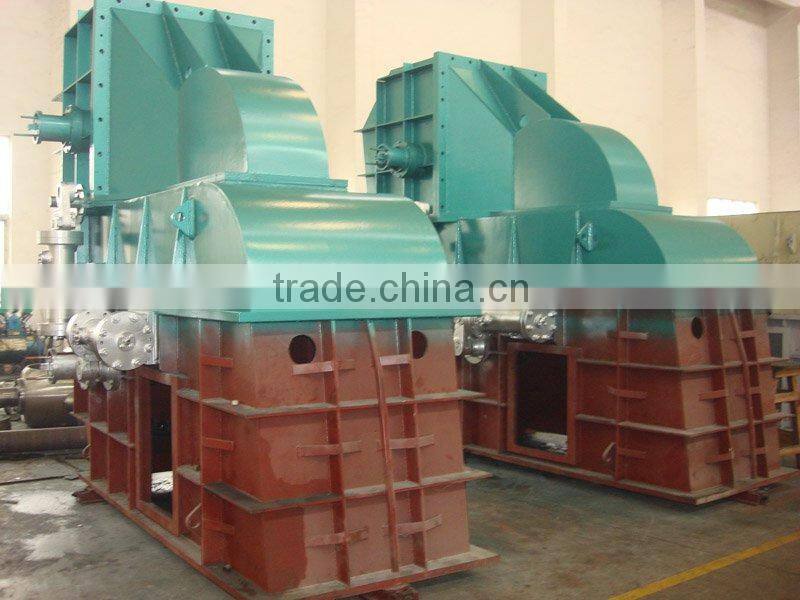

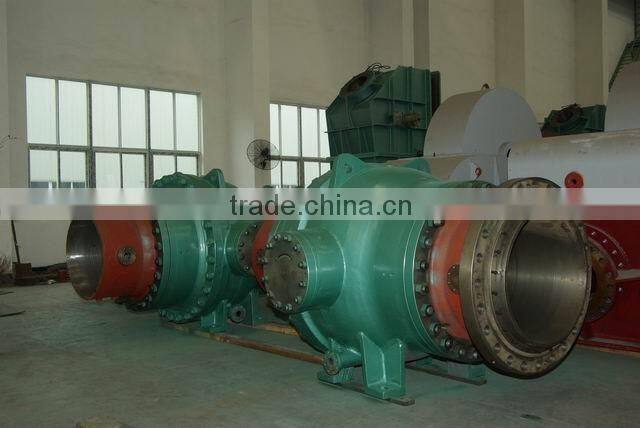

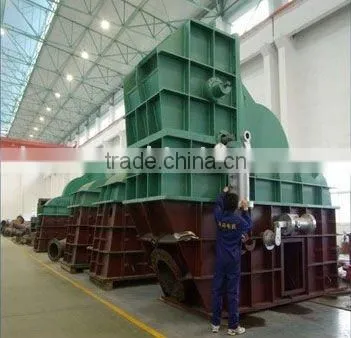

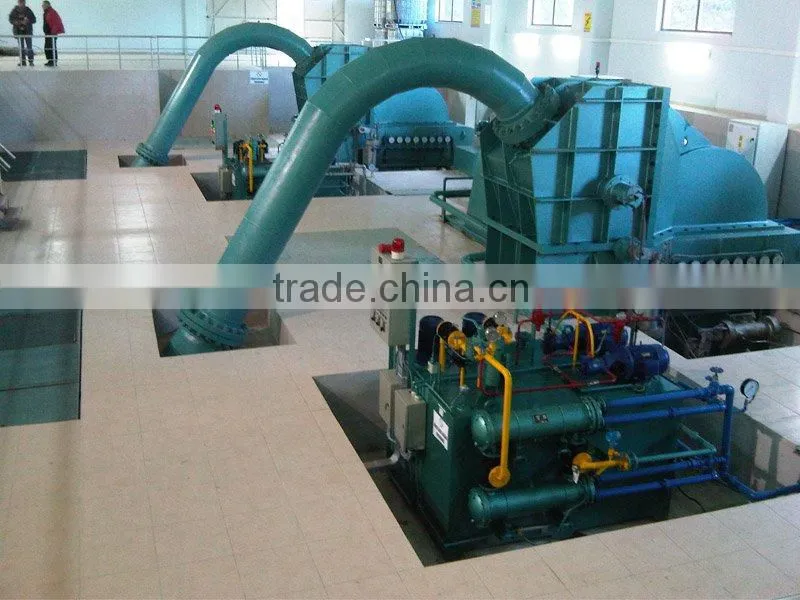

Pelton Turbine: (The Impulse turbine)
Pelton turbine is a type of impulse turbine, water passes through nozzles and strikes spoon-shaped buckets or
cups arranged on the periphery of a runner, which causes the runner to rotate, producing mechanical energy.
The runner is fixed on a shaft, and the rotational motion of the turbine is transmitted by the shaft to a generator.
Water Head Range: H=100M-1500M
Specifications |
The diameter of the runner is 0.5m- 5.0m;
|
Advantages |
water flow. They have compact structure, small size, high efficiency and need fewer investments.
|
Main Business and Services:
1. Site survey and design
2. Complete E & M equipments supply and related services
3. Erection and Commissioning
4. Plant post-sale service and maintenance
5. Spare parts supply and equipments updating
Applications for Hydropower projects:
1. power: 500KW--100MW
2. Frenquency: 50Hz or 60Hz
3. Net water head:
For Francis turbine : 30-200m
For Plton turbine: 200-1800m
For Kplan turbine: 2-30m
Export references:
Chongqing Lisong has provided water turbine generators sets to Turkey, Chile, Peru, New Zealand, America,
Indianisia, Vietnam etc.
Please feel free to contact us or send us e-mails when any more informations needed! Our techinical team will offer you the higher efficient units at lower cost!
