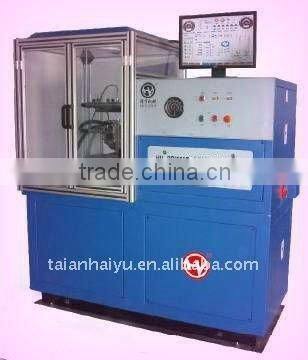

Help CenterCRI-200B-I High Pressure Common Rail Test Machine , Test Tool
Related Products
-
Goof Reputation ! CRI200B-I High Pressure Common Rail Test BenchNegotiableMOQ: 1 Set -
Common Rail Injector Tester ( CR Injector Tester )US$ 3 - 3MOQ: 1 Set
-
Hot Product ) HY-CRI200 Common Rail Injector and Pump Test Bench(checking Bosch Delphi Denso Siemens)US$ 11 - 11MOQ: 1 Set
-
Aviation Aluminum Structure) HY-CRI200 Common Rail Injector and Pump Test Bench(checking Bosch Delphi Denso SiemensNegotiableMOQ: 1 Set
-
Test Bech for Common Rail Systerm:HY-CRI200B-I High Pressure Common Rail Injector and Pump Test BenchNegotiableMOQ: 1 Set
Specifications
1HY-CRI200B-I test bench2Rail pipe:BOSCH
3Filtering precision:5um
4cast iron platform
5.test type: Bosch Denso Delphi

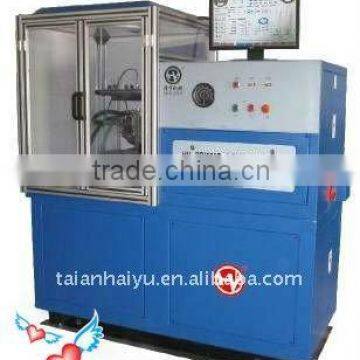

HY-CRI200B-I common rail Test Bench
HY-CRI 200B-I high pressure common rail injector test bench
1. One year quality assurance
2. Wholesale price
3. Fast delivery
4. Accurate measurement
HY-CRI200B-I Test Bench
1. Variable frequently drive pump serves the common rail BOSCH CP3.3 and the maximum pressure is 200Mpa. Automatic closed-loop control rail press accuracy displayed is± 0.1Mpa.
2. Adjustable inject frequency and time.
3. Built-in standard database of common rail injection pump, data can be update and added freely by users.
4. The standard database contains the waveform control data of all types of injection pump, and it can output the standard waveform control signal to the injection pump.
5. It can test BOSCH, DENSO, and DEPHI AND SIEMNES.
6. Industrial computer motherboard and embedded operating system window XP.
7. Operating by computer mouse and keyboard, easy to learn and use.
8. Oil injection and oil return are automatically detected and clearly displayed on the large screen.
9. Oil temperature is controlled by forced cooling system.
10. Adjustable pulse width and frequency of driving signal.
11. Precise measurement, easy to operate, low noise.
12. Test data reports can be generated, stored and print.
For Common rail injector For Common rail pump
1. It can test BOSCH, DENSO, DEPHI and SIEMNES.
2. Six common rail injectors can be tested at a time.
3. Cleaning of high pressure common rail injector.
4. Testing the sealing of the common rail injector.
5. Testing the condition under full load operation.
6. Testing the condition of idle energy.
7. Testing the condition of pre-injection.
8. Checking of all the possibilities set by users.
