Specifications
1HY-CRI200common rail test bench2Short-circuit protection
3cast iron platform
4Bosch rail pipe
5Secondary filter

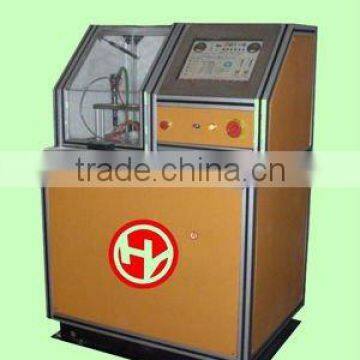

HY-CRI200 common rail test bench
Introduction

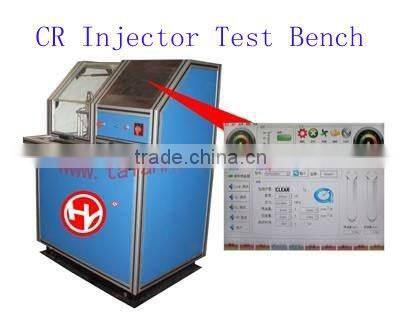

HY-CRI200 type high pressure common rail injector test bench is the latest developed checking instrument for fuel common rail injector.400 kinds of standard statistics of common rail injector is built in. with high accuracy flow test detection equipment. It can automatically test the oil injection and oil return under the circumstance of sealing, full load, idle operation,pre-injection and start-up . the test bench with high compacted structure can transmission smoothly, is reliable and operated simply which will be the best equipment to detect the diesel oil high pressure common rail injection pump
Function and characteristics
1.Variable frequently drive pump serves the common rail BOSCH CP3.3 and the maximum pressure is 200Mpa.
2. Automatic closed-loop control rail press accuracy displayed is± 0.1Mpa.
3.built-in standard database of common rail injection pump, data can be update and added freely by users
4. the standard database contains the waveform control data of all types of injection pump ,and it can output the standard waveform control signal to the injection pump . it can check BOSCH DENSO SIEMENS and DELPHI

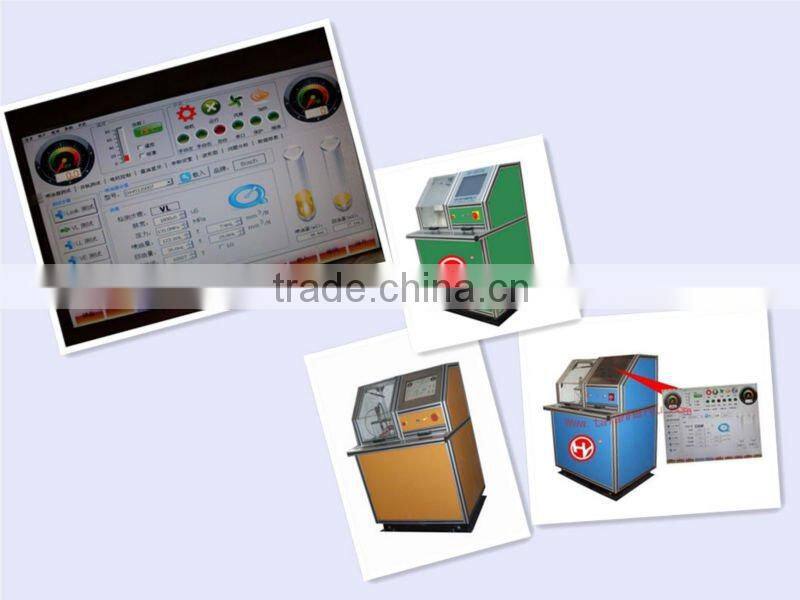

5.industrial computer motherboard and embedded operating system window XP .its large touch screen displays basic status such as: the rail pressure , temperature, hot operation, speed , heating, cooling, also has some windows for fuel injection pump test , common rail test, delivery quantity, parameter setting, injection waveform, problem analysis and data reports.
6. Operating by computer mouse and keyboard, easy to learn and use
7. Oil injection and oil return are automatically detected and clearly displayed on the large screen
8. Test data reports can be generated, stored and print
9. Testing the sealing of the common rail injection pump
10. Testing the condition under full load operation
11. Testing the condition of idle energy
12. Testing the condition of pre-injection
13. Testing the condition of the atomization quality
14. Function of high pressure cleaning of the injector
